PowerLite 4650 XGA 3LCD Projector

The PowerLite 4650 projector provides brilliant color and amazing image quality with 5200 lumens of color brightness¹ and 5200 lumens of white brightness¹ and XGA resolution. This powerful product also features Faroudja DCDi® video processing to ensure your image always looks its best. Setup is easy with a centered lens design, up to 2x optical zoom, and lens shift. Secure networking features allow for easy monitoring/control, message broadcasting, and displaying content over the network. Whether they're used in the boardroom, or your living room, the PowerLite 4650 multimedia projector delivers bright, vivid images that will captivate any audience.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 5200 lumens of color brightness¹ and 5200 lumens of white brightness¹, the PowerLite 4650 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H546020

Find Accessories Support View Service Plans

Overview

3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite 4650 has:
Crisp, clear resolution — XGA for incredible images
Lens shift — offers installation flexibility with a range ofmotion of up to ±58â”¬â–‘ vertical from center and ±38â”¬â–‘ horizontal from center; also features lens shift lock
Versatile connectivity — easily integrate with any system with HDMI and Display Port
Convenient remote management — remotely monitor and control presentations
Epson iProjection^TM — wirelessly display and control content from your iPhone®, iPad®, iPod touch®and Android^TM devices²
Centered lens design — position the ceiling mount, screen and projector independently; the screen will align with the lens at the center of the projector
Faroudja DCDi Cinema technology and 2:2 pull-down — achieve exceptional video quality without introducing artifacts
3D stacking — using polarized filters and passive 3D glasses; or, double stack the projectors to display a 2D image, and get double the brightness
EasyMP Network Projection — easily present content over the network
Remote network monitoring and control — plus message broadcasting and built-in schedule functions
Split Screen³ — project two images (video or still) side-by-side from two different sources simultaneously
Digital connectivity — easily integrate your projectorwith any existing system, via HDMI and Di splay Port
Point and arc correction — adjust each side of an imagefor a perfectly rectangular image

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

PowerLite 4650 Projector
Power cable
Computer cable (VGA)
Projector remote control with batteries
User manual CD
EasyMP® software CD
Quick Setup Sheet

Registration card
Password protection sticker
Lens lock screw

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 pixel (1024x768) x 3Color Brightness - Color Light Output: 5200 lumens¹White Brightness - White Light Output: 5200 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 280 UHELamp Life:

Normal mode: Up to 4000 hours²
ECO mode: Up to 5000 hours²

Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.27 – 2.59Size - projected distance: 30" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±30 degrees

Contrast Ratio: High Brightness, Dynamic Mode: 5000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: Weight with standard Lens 14.3 lbsSecurity:

Security Cable Hole
Lens Lock
Kensington®lock provision,

Projection Lens:

Type: Manual focus / zoomF-number: 1.5 – 2.14Focal Length: 16.72 mm – 33.47 mmZoom Ratio: Optical zoom 1.0x – 2.0xLens Shift:

Horizontal: ±38 degrees
Vertical: ±58 degrees

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 560 line

Input Signal:

NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y / C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

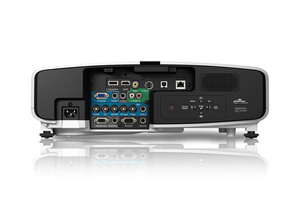

Interfaces:

HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video 1: 5-BNC x 1
Video 2: RCA x 1
Composite video BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L&R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c x 1
Hardwire remote jack x 1
Monitor-Out: D-sub 15 pin x 1

Fan Noise:

Normal mode: 38 dB
ECO mode: 32 dB

Projector Dimensions:

Including feet: 18.58" x 13.94" x 6.26" (W x D x H)Excluding feet and lens: 18.58" x 12.60" x 5.28" (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to +45 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 409 W
ECO mode: 311 W
Communication on: 4.3 W standby
Communication off: 0.41 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
3-Year Next Business Day Whole Exchange - Extended Service Plan

SKU:

EPPEXPB3

Price:

$389.00

Added to Your Shopping Cart
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPB2

Price:

$279.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPB1

Price:

$199.00

Added to Your Shopping Cart

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Check your owner's manual to determine if a separate wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.

³ Consult your user manual for input combinations.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
