For Work Projectors Large Venue Pro L12002QNL Native 4K 3LCD Laser Projector
Discontinued

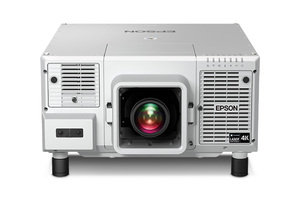

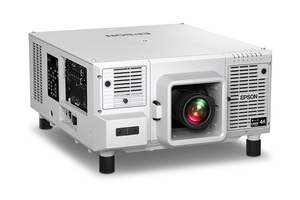

Pro L12002QNL Native 4K 3LCD Laser Projector Without Lens

Revolutionary native 4K 3LCD 12,000-lumen laser projector.

The Pro L12002QNL delivers ultra HD image quality for incredible, lifelike performance ― all in a remarkably compact form factor. A groundbreaking large-venue projector, the Pro L12002QNL features astounding 4K resolution (3840 x 2160), plus 3LCD technology, for extraordinary detail and 12,000 lumens of color/white brightness1 for vivid color that’s sure to amaze. Its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours2. With three interface slots designed to accommodate a wide range of inputs, the Pro L12002QNL provides the ultimate in connectivity. Projector also available in black.

  • Model: V11H832920
  • Designed for demanding environments — features a sealed light source and optical engine for outstanding durability for live events and fixed installations
  • Dynamic projection capabilities — with advanced tools like tiling assist, Edge Blending and auto-color adjustment for fast installation; free software for multi-projector setup
  • Bold, vibrant images — supports High Dynamic Range (HDR) via HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
  • Mechanical shutter — protects against damage from external laser lights
  • Wide lens shift — optimized lens and optical engine design

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay™ Transport Partner4

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • Pro L12002QNL projector
  • power cables (3 m 100 V and 3 m 200 V)
  • pojector remote control with batteries
  • quick reference sheet

Specifications Projector:


Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: (3840 x 2160) 4K UHDResolution on Screen: 4K UHDPixel Number in Device: 8,294,400 pixels (3840 x 2160) x 3 chipsColor Brightness - Color Light Output: Color Light Output: 12,000 lumens1White Brightness - White Light Output: White Light Output: 12,000 lumens1Aspect Ratio: 16:9, 4:3Brightness Uniformity: 90%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal); 30,000 hours (Extended)2Illumination Technology: Laser Diode

General:


Operating Temperature: 32 ˚ to 122 ˚ F (0 ˚ to 50 ˚ C)Weight: 113.3 lb (without standard lens, not included)Security: Security cable hole, Kensington lock provision

Projection Lens:


Type: Powered shift/focus/zoom (ELPLM15 Lens)F-number: 1.8 – 2.35 (ELPLM15 Lens)Focal Length: 36.0 – 57.4 mm (ELPLM15 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM15 Lens)Throw Ratio Range: 1.57 – 2.47 (ELPLM15 Lens)Lens Shift: Vertical: ±58 percent; horizontal: ±16 percent (ELPLM15 Lens)

Projector Details:


Input Signal: Input Video Signal (HDMI®, DVI-D, HDBaseT and DisplayPort) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160Interfaces:
  • HDBaseT x 1
  • VGA x 1

Interface (Slot 1)

  • ELPIF01 (included from factory)
  • DVI-D x 1
  • HDMI® x 1 (HDCP2.2)
  • DC Out (500 mA)

Interface (Slot 2)

  • ELPIF01 (included from factory)
  • SD/HD/3G/12G-SDI x 4
  • SDI - Active Through x 4

Interface Card (optional)

  • ELPIF03
  • Display port x 2 (DP 20p)

Other

  • USB connector Type B x 1: for firmware update, Copy OSD Settings
  • USB connector Type A x 1: for firmware update, Copy OSD Settings, DC Out 900 mA
  • Monitor out: Mini D-sub 15-pin x 1
  • Serial: RS-232c x 1
  • Remote: Stereo mini
  • Wire LAN x 1 etherCON

Fan Noise: 45 dB (Normal Mode); max. 38 dB (Quiet Mode)

Projector Dimensions:


Including feet: 24.4" x 14.1" x 31.1" (620 x 358.5 x 790 mm)

Remote Control:


Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, User ID, Auto, Aspect, Color Mode, Menu, Slot 1, Slot 2 and moreOperating Distance: 49 ftOperating Angle: Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
Upper/Lower: Front: ± 50 degrees; Rear: +30 degrees

Power:


Power Supply Voltage: 100 - 120 V AC, 200 - 240 V AC +/- 10%, 50/60 Hz
Requires 200-240 V for full spec. operationPower Consumption: 1741 W (Normal Mode)
1030 W (Extended Mode)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.
2 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.
3 For convenient and reasonable recycling options, visit www.epson.com/recycle
4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
