For Work POS System Devices POS Printers TM-U325 Receipt/Validation Printer
Discontinued

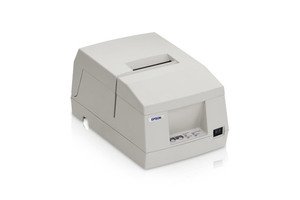

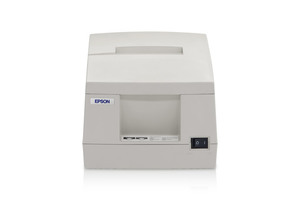

TM-U325 Receipt/Validation Printer

The Epson TM-U325 Point-of-Sale (POS) receipt and validation printer is a cost-effective choice for environments that need the benefits of both receipt and validation printing all in one space-saving printer. Fast and quiet, the TM-U325 provides crisp, clean receipts and handles up to nine lines of validation printing. The drop-in roll paper loading system enables easy paper replacement and the semiautomatic paper loading function reduces the work for busy operators.

REPLACEMENT PRODUCT :
OmniLink TM-H6000V Multifunction POS Printer
OmniLink TM-H6000V Multifunction POS Printer
Model: View Main Product Page Learn More
  • Receipt and validation printing in a compact footprint
  • Quiet, 6.4 lps receipt printing speed
  • Handles up to 9 lines of validation
  • User-friendly features such as drop-in paper loading and Auto Status Back (ASB) messages

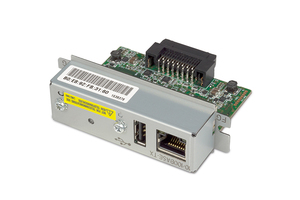

  • Connect-It™ interfaces for system compatibility
  • Renowned Epson quality, reliability, dependability

Print Other:


Printing Technology: 9-pin, serial impact dot matrixPrint Speed:
  • 40-Column Printing: Approx. 3.5 lps
  • 16-Column Printing: 6.4 lps

General:


Dimensions: 164 x 240 x 136mm (W x D x H) [6.46" x 9.45" x 5.35"]Weight: Approx. 2.3 kg (5.07 lbs)Safety Approvals:
  • Control board:
    • EMI standards: FCC class A, CE marking
    • Safety standards: UL, CSA
  • Consumables:


    Ribbon Life: 3,000,000 characters (black)Inked Ribbon: ERC-38 (black)

    Print Fonts:


    Column Capacity: 40 or 42 columns/33 or 35 columnsCharacter Size: 1.24 x 3.1mm (W x H) / 1.56 x 3.1mm (W x H)
    [0.049 x 0.122"/0.061 x 0.122"]Fonts: 7 x 9 / 9 x 9Character Set: 95 Alphanumeric, 32 International, 128 x 8 GraphicCharacters per Inch: 16 or 17.8 cpi/13.3 or 14.5 cpi

    Media Handling:


    Thickness:
    • Receipt: 0.06 to 0.085mm [0.0024 to 0.0033"] / sheet (total thickness: 0.2mm [0.079"] or less)
    • Validation: 0.09 to 0.12mm [0.0035 to 0.0047"] / sheet (total thickness: 0.09 to 0.31mm) [0.0035 to 0.012"], (including the thickness of roll paper)
    Media Dimensions:
    • Receipt: 76 ± 0.5 x diameter 83mm (2.99 ± 0.02 x diameter 3.27")
    • Validation: 135 to 182 x 70 to 182mm (W x L) [5.31 to 7.17 x 2.76 to 7.17"]
    Copy Capacity: One original and two copies

    Connectivity:


    Standard Connectivity: RS-232C, Bi-directional parallel, Connect-It1

    Control Board:


    User Memory: 4KB/45 bytes

    POS Details:


    Reliability:
    • MTBF: 180,000 hours
    • MCBF: 49,000,000 lines
    D.K.D.: 2 drivers

    Power:


    Power Consumption: Approx. 43WPower Source: AC adapter (included), PS-180 (option)

    Notes:



    Specifications Notes:
    1 To find out more about our line of Connect-It interfaces, talk to your Epson Sales Representative.

    Inch values are approximate
    cpi: characters per 25.4mm (characters per inch)
    lps: lines per second
