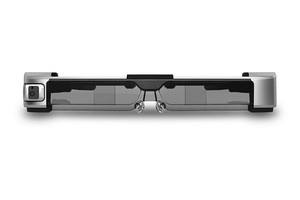

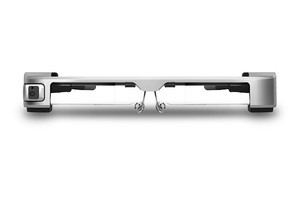

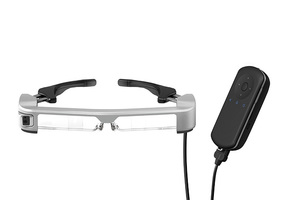

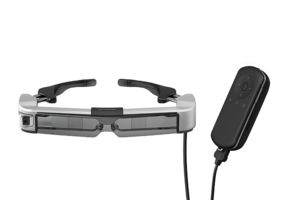

Moverio BT-350 Smart Glasses

Adjustable, highly transparent smart glasses for multi-user applications.

Designed for multi-user applications, Moverio BT-350 smart glasses feature an adjustable design, made to fit multiple sizes. With included admin software1 and an optional USB dock, management of multiple devices is easy. Ideal for indoor and outdoor use, these highly transparent glasses redefine augmented reality (AR) with a groundbreaking Si-OLED display. Motion-tracking sensors and a high-resolution camera make it ideal for 360-degree apps. The binocular display enables stereoscopic content too. With wireless and Bluetooth® Smart (BLE) connectivity, the BT-350 supports multiple accessories. Built on the Moverio OS platform, it’s ideal for developing AR apps.

  • Model: V11H837020
REPLACEMENT PRODUCT :
Moverio BT-45CS AR Smart Glasses
Moverio BT-45CS AR Smart Glasses
Model: View Main Product Page Learn More
  • Innovative design — durable hinge design accommodates a wide range of user head sizes
  • Designed for multi-user applications — Epson Moverio Admin (EMA) device management software1 and optional USB dock (holds up to five devices) enables scalable implementation
  • Ideal for both indoor and outdoor use — built-in flip-up shade makes it easy
  • Hands-free operation — head tracking and gesture control support hands-free user interfaces; includes neck strap and controller pouch
  • Ideal platform for developing AR apps — seamlessly blend digital content into the world around you with highly transparent Si-OLED display
  • Built on the Moverio OS platform — familiar and open development environment, plus access to the Moverio SDK with developer tools and resources
  • Packed with sensors — motion-tracking sensors, plus front-facing high-resolution camera make it ideal for 360-degree AR apps
  • Dual (binocular) displays — each lens has its own display, in your field of vision, projected into your surroundings; ideal for stereoscopic 3D content
  • Enhanced connectivity — dual-band wireless connectivity and Bluetooth Smart (BLE) enable integration with a wide range of accessories
  • Portable — rechargeable battery (in controller) offers up to six hours of battery life2; embedded 32GB SD card for additional storage

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay™ Transport Partner4

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • AC Adapter
  • USB Cable
  • Carrying  Pouch
  • Shade unit x1 (2% dark shade, Flip-up)
  • Neck strap
  • USB attachment for Option Magnet case x1
  • User's Guide

Wearable Device Details:


Model Type: See-Through OTG (Over the Glasses) Power Supply Voltage Controller: 5 V 900 mA via micro USB terminalBattery Life: approx. 6 hrsPower Supply Voltage AC Adapter: 100 - 240 V AC +/- 10%, 50/60 Hz with micro USB cable Battery Type: Li-PolymerDimensions Headset: 181 mm x 193.5 mm x 30.5 mm (without light shielding)Dimensions Controller: 116 mm x 56 mm x 23 mm (Without magnet case)Weight Controller: approx.129 g (Without magnet case)

Optical:


Driving Method: Mono Crystalline Silicon Active MatrixDisplay Type: Si-OLED (Silicon - Organic Light-Emitting Diode) Display Size: 0.43" inch wide panel (16:9)Pixel Number: 921,600 pixels (1280x720xRGB)Refresh Rate: 30 HzField of View: approx. 23 ° (diagonal)Screen Size - Projected Distance: 40" at 2.5 m - 320" at 20 mColor Reproduction: 24 bit-color (16.77 million colors)

General:


Temperature: 41°F to 95°FHumidity: 20% to 80%

Sensors:


Camera: 5 Mega pixelGPS: Yes, in ControllerCompass: Yes, 3-axis in both Headset and ControllerGyroscope: Yes, 3-axis in both Headset and ControllerAccelerometer: Yes, 3-axis in both Headset and Controller

OS Platform:


Pre-installed Applications: Gallery, Setting, Camera, Mov FilerOS Version: Moverio OSOS Update: via USB / Mutli-Charger (Option)

Connectivity Wearables:


Wireless LAN: IEEE 802.11 a/b/g/n/ac with Wi-Fi CERTIFIED™ Miracast® (source/sink) ODFM, DS-SSBluetooth: Bluetooth Smart Ready Class 2(2.5mW 10m)microUSB: USB2.0 (device/host)

CPU & Memory:


CPU: Intel Atom 5 1.44GHz Quad CoreInternal Memory: 16 GB *including Moverio OS + embedded microSDHC(32GB/Class10)RAM: 2 GB

User Interface:


Function Key:
  • Operation Key: Power, Home, Menu, Back, Function (Lock, Brightness, 2D/3D), Volume(+/-)
  • Direction Control Key: Up, Down, Left, Right, Enter-OK
Touch-pad Pointing Method: Capacitive Multitouch (Relative coordinate mode & absolute coordinate mode)

Supported File Formats:


Video: MP4 (MPEG4+AAC)、MPEG2 (H.264+AAC)Audio: WAV, MP3, AAC3D Supports: Side-by-side

Sound Output:


Head-set: 2.0 mW / 16 ohm 3.5 φ StereoSurround: Yes

Notes:

1 Only works with Windows® 7, 8 and 10.

2 Battery life may vary considerably depending on applications used, device settings (for example, wireless on or off, brightness setting), and temperature.

3 For convenient and reasonable recycling options, visit www.epson.com/recycle

4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
