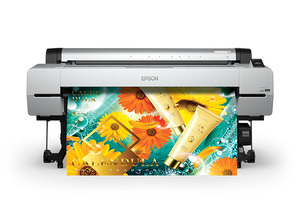

Epson SureColor P20000 Production Edition Printer

The Art of Production.

The new 64" Epson SureColor® P20000 Production Edition printer is redefining the world of wide-format, high-production signage and graphics imaging. This innovative solution features breakthrough imaging technologies, including a high-performance 2.6" wide PrecisionCore® MicroTFP printhead and Epson UltraChrome® PRO 9-color pigment ink — complete with four levels of gray. This state-of-the-art printer includes ONYX® RIPcenter workflow software, which incorporates an Adobe® PostScript® based engine and powerful color management tools. Plus, they support Epson's diverse media library with fine art, photographic and even third-party signage media options built in.

DOWNLOAD SALES REFERENCE GUIDE ►

  • Model: SCP20000PE
  • The art of performance — high performance 9-color archival pigment for high-volume photographic printing environments
  • Remarkable productivity — PrecisionCore MicroTFP printhead utilizing 8,000 nozzles, for print speeds up to twice as fast as our previous generation
  • Industry-standard workflow software — ONYX RIPcenter software incorporates an Adobe PostScript engine to maximize workflow productivity; supports leading photo, fine art and signage media
  • Low cost of operation — high-capacity 700 mL ink cartridges, along with more efficient ink usage, allows for a low cost per print
  • Outstanding print quality — Epson UltraChrome PRO archival ink technology produces exceptional color prints that last up to 200 years1, along with four levels of gray for accurate transitions with very low grain, even at the fastest print modes
  • Superior workflow features — standard gigabit Ethernet and Hi-Speed USB, along with an internal 320GB print server, allow for exceptional networking performance for multiple workstations, a built-in Web page for job and file management and job accounting capabilities

UltraChrome® Pro Inks

  • Next Generation Pigment Ink Technology – Introducing all new pigments for outstanding color performance and Improved Resin Encapsulation Technology for superior gloss uniformity
  • Improved Black Density – Photo Black pigment 1.5 times denser than the previous generation ink set, along with significant improvement to overall contrast ratio and optical clarity
  • Significant Print Permanence Improvements – Featuring completely reformulated pigment technology for improved print permanence, and up to twice the overall print permanence versus our previous generation ink set
  • Extreme Color Balance – 4 levels of black, featuring an all-new dark gray for rendering superb gray balance through the entire tonal range of B&W and color prints at any production speed

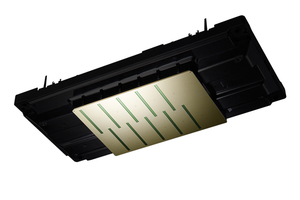

PrecisionCore® microTFP Printhead
  • Design for Production – 2.6 inch tall printhead with 800 nozzles per color, 8000 high performance nozzles in all
  • Robust Engineering – Single head configuration designed for maximum quality and reliability in demanding high-speed environments
  • Epson Precision Dot – Delivers best-in-class continuous tone image quality at production level print speeds
Printer Applications
  • Ultra-Fast Drafts – Print at up to 1,135 sq ft/hour (1 pass) on plain paper when speed is the critical factor
  • High-Speed Poster Printing – For high-speed production on various coated media types, the 381 sq ft/hour (4 pass) and 251 sq ft/hr (6 pass) modes provide highly sellable output
  • Indoor Display Graphics – The 273 sq ft/hour mode (6 pass) on semigloss or glossy media provides eye-catching photographic quality even up close
  • On-demand Photo & Fine Art – Start with 194 sq ft/hour (8 pass) or move up in quality to 96 sq ft/hour (16 pass) for best-in class fine art production printing. Perfect for use with Epson Signature Worthy Canvas, Fine Art and Photo media
  • Exhibition Quality Prints – Combine maximum quality 63 sq ft/hour (24 pass) with the highest quality Epson Legacy photo media for prints worthy of the world's most exclusive galleries and exhibitions

SURECOLOR P-SERIES RIP INFORMATION ►

What's in the box:

  • SureColor P20000 Printer
  • Onyx® RIPCenter workflow software
  • Printer Stand with Catch Basket
  • Spindle-free Roll Media Adaptors
  • Set of ten 110 ml initial ink cartridges
  • Internal Print Server 320GB
  • Ink Maintenance Tanks (installed)
  • AC Power Cable
  • User Guide Kit (Documentation and Warranty)
  • Software is provided via download

Print:


Printing Technology: Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print headMinimum Ink Droplet Size: Enhanced Variable Droplet Technology as small as 3.5 picolitersMaximum Print Resolution: 2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpiPrint Speed: 16" x 20" prints from 1:47 to 3:17 Production is 2:092
20" x 30" prints from 2:55 to 5:33 Production is 3:402Nozzle Configuration: Color and Monochrome; 800 nozzles x 10 channels

Ink:


Ink Type: Epson UltraChrome PRO pigment inks
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.Ink Palette: C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MKInk Configuration: 10-ink, 9-colorReplacement Ink:
  • Photo Black T800100
  • Cyan T800200
  • Vivid Magenta T800300
  • Yellow T800400
  • Light Cyan T800500
  • Vivid Light Magenta T800600
  • Dark Gray T800700
  • Matte Black T800800
  • Gray T800900
  • Light Gray T800000
Fade Resistance / Print Longevity: UltraChrome PRO, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints1

General:


Operating Systems:

Printer Driver:
Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7x
Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)

Onyx RIPCenter Supported:
Microsoft® Windows®: 10, 8.1, 7 Professional (64-bit)
RAM: 8GB minimum (4GB/ core recommended)
1 dedicated USB port for security key

Temperature: Operating: 50° to 95°F (10° to 35°C)
Operating Recommended: 65° to 75°F (18° to 24°C)
Storage: -4° to 104°F (-20° to 40°C)Humidity: Operating: 20 to 80% (no condensation)
Operating Recommended: 40 to 60% (no condensation)
Storage: 5 to 85% (no condensation)Sound Level: Sound Pressure Level: Less than 51.1 dB(A)
Sound Power Level: approx. 65.3 dB(A)Dimensions: Basket Open: 74.0” x 38.6" x 45.1" (1879 x 976 x 1145 mm)Weight: 278 lbs (126 kg)Safety Approvals: Safety Standards: UL605950-01, CAN/CSA C22.2 No. 60950-1 EMC FCC part 15 subpart B class A, CAN/CSA-CEI/IEC CISPR22 class A, AS/NZS CISPR 22 class A Country of Origin: ChinaWarranty: Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor P-Series Extended service plans available for purchase.

Ink Supply System:


Ink Supply Fill Volume: Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
Cartridge fill volume: 700 ml each x 10 colors totalInk Shelf Life: 2 years from printed production date or 6 months after open

Printable Area and Accuracy:


Maximum Paper Width: 44"Minimum Cut-sheet Size: 8.5" x 11"
Minimum recommended cut-sheet: 13" x 19"Minimum Paper Width: 10"Maximum Printable Width: 44” in BorderFree print mode
43.75” in standard print modeLine Accuracy: +/- 0.2% of specified length
+/- .26mm minimumMaximum Printable Length: Cut-sheet: 80"
Roll: 590.55"5
As allowed by the Epson MAC and PC printer driver. Application, version of application and Operating System version may limit maximum length.

Sheet Media Handling:


Sheet Loading: Top-loading if less than .5mm thickThickness: 0.8mm to 1.5mmSingle Sheet, Top-loading: Up to 44" wideBorderFree Print Widths: Left and right borderless "bleed" printing for the following roll media widths:
10", 11.8", 13", 16", 17", 20", 23", 24", 28.86", 29", 33.11", 36", 40.55", 44"Left/Right Margins: 3mm each side; 6mm or 0.24" totalTop/Bottom Margins: 3mm / 15mm (0.12"/0.59")
15mm / 15mm (with centering)

Printer Details:


Printer Language: Epson Professional Photographic Drivers standard; optional internal Adobe® Postscript® 3™ print server1Interfaces: USB 2.0 (1 port)
1000Base-T Ethernet (1 port)

Power:


Rated Voltage: AC 110 – 240 VRated Frequency: 50 – 60 HzPower Consumption: Printing: approx. 95 W
Sleep Mode: approx. 2.8 W (1000 BaseT Ethernet in Standby Mode)
Power Off: less than 0.5 W ENERGY STAR® qualifiedRated Current: 5 A

Notes:

* Price is MSRP before any applicable rebates. Reseller prices may vary. All prices are in U.S. Dollars.

1Ink lightfastness rating based on accelerated testing of prints on specialty media, displayed indoors, under glass. Actual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions. Epson does not guarantee longevity of prints. For maximum print life, display all prints under glass or lamination or properly store them. Visit www.wilhelm-research.com for the latest information.
