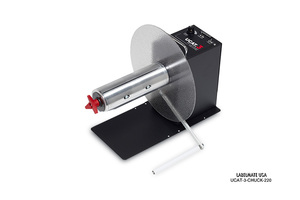

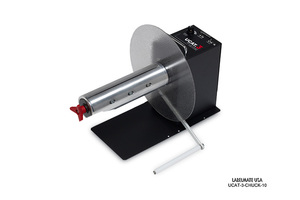

UCAT-3 Unwinders for Epson ColorWorks

UCAT-3 Powered Unwinders provide a convenient way to manage your supply roll of labels and also eliminate stress on your printer by feeding labels into the printer. These powered unwinders also allow you to use larger supply rolls thereby reducing your per unit label cost. Additionally, the supply roll doesn't have to be refreshed as often thus saving time and adding convenience.

Vendor Contact Information:
Labelmate US
Address: 12A Sunset Way #108, Henderson, Nevada 89014
Phone: 877.833.7149
Website: www.labelmateusa.com

Overview

Increases input roll capacity to support higher production volume
Reduces media roll changeover time
5-Year Limited Warranty (Unwinder)
1-Year Limited Warranty (Power Adaptor)

Specifications

General:

Warranty:

UCAT-3-CHUCK: 5 year limited warranty on Unwinder - 1 year limited warranty on Power Adaptor
UCAT-3-CHUCK-220: 5 year limited warranty on Unwinder - 1 year limited warranty on Power Adaptor
UCAT-3-CHUCK-10: 5 year limited warranty on Unwinder - 1 year limited warranty on Power Adaptor

General: Max Roll Diameter (in)

UCAT-3-CHUCK: 12 (305mm)
UCAT-3-CHUCK-220: 12 (305mm)
UCAT-3-CHUCK-10: 12 (305mm)

Core Diameter (in)

UCAT-3-CHUCK: 3 (76mm)
UCAT-3-CHUCK-220: 3 (76mm)
UCAT-3-CHUCK-10: 3 (76mm)

Max Media Width (in)

UCAT-3-CHUCK: 6 (152mm)
UCAT-3-CHUCK-220: 8 (204mm)
UCAT-3-CHUCK-10: 10 (254mm)

Max Roll Weight (lbs)

UCAT-3-CHUCK: 20 (9kg)
UCAT-3-CHUCK-220: 20 (9kg)
UCAT-3-CHUCK-10: 20 (9kg)

Dimensions-HWD (in)

UCAT-3-CHUCK: 14 x 12 x 17 (356 x 305 x 432mm)
UCAT-3-CHUCK-220: 14 x 17 x 17 (356 x 432 x 432mm)
UCAT-3-CHUCK-10: 14 x 17 x 17 (356 x 432 x 432mm)

Weight (lbs)

UCAT-3-CHUCK: 29 (13kg)
UCAT-3-CHUCK-220: 30 (13.5kg)
UCAT-3-CHUCK-10: 31 (14kg)

Max Speed (ips)

UCAT-3-CHUCK: 120 (3048mm)
UCAT-3-CHUCK-220: 120 (3048mm)
UCAT-3-CHUCK-10: 120 (3048mm)

Min Speed (ips)

UCAT-3-CHUCK: 1 (25mm)
UCAT-3-CHUCK-220: 1 (25mm)
UCAT-3-CHUCK-10: 1 (25mm)

Max Torque (in-oz)

UCAT-3-CHUCK: 183
UCAT-3-CHUCK-220: 183
UCAT-3-CHUCK-10: 183

Max RPM

UCAT-3-CHUCK: 388
UCAT-3-CHUCK-220: 388
UCAT-3-CHUCK-10: 388

Number of Flanges

UCAT-3-CHUCK: 1
UCAT-3-CHUCK-220: 1
UCAT-3-CHUCK-10: 1

Power Specifications

UCAT-3-CHUCK: 120 - 220VAC in, 12VAC 40W Out
UCAT-3-CHUCK-220: 120 - 220VAC in, 12VAC 40W Out
UCAT-3-CHUCK-10: 120 - 220VAC in, 12VAC 40W Out

Available Options
(UCAT-3-CHUCK, UCAT-3-CHUCK-220, UCAT-3-CHUCK-10)

FLANGE, OUT, QC-12 (Optional Outer Guide Flange)
LTO-CAT (Low-Torque Option)
ADAPT-326 (6” Core Adaptor Set)
FOOTSWITCH

See Full Specs Hide Full Specs

Print All Specs

Works With
