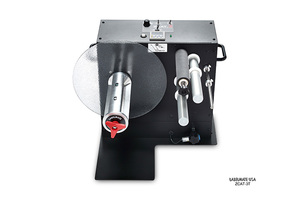

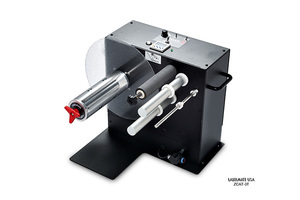

ZCAT-3 Tensioning Rewinders for Epson ColorWorks

ZCAT-3 Tensioning Rewinders isolate and control web tension while eliminating stress on the printer, thus making ZCAT-3 Rewinders the ideal solution for sensitive printers and printers that back-feed. A free-hanging loop of label stock is created between the printer and the Rewinder and allows the printer to tensionlessly back-feed up to 16” of media. An optical sensor starts and stops the Rewinder based on the optimum depth of the loop. Fully adjustable tension control on the Rewinder yields a consistent and tightly wound finish roll every time.

ZCAT-3 Rewinders were specifically designed for use with Epson ColorWorks printers. The Rewinders eliminate all tension on the printer which in turn eliminates the risk of skipped labels or defects in printing due to inconsistent torque

Contact Information:
Labelmate USA
Address: 12A Sunset Way #108, Henderson, Nevada 89014
Phone: 877.833.7149
Website: www.labelmateusa.com

Overview

Specifically designed for use with Epson ColorWorks printers
Back-feed and overprint up to 16” of media without placing any stress on printer
Isolated, adjustable web-tension control for tight finish-rolls
Auto-correcting rewind action for flush roll edges (no outer roll guide necessary)
Start and stop Rewinding automatically with printer
5-Year Limited Warranty (Rewinder)
1-Year Limited Warranty (Power Adaptor)

Specifications

General:

Warranty:

ZCAT-3-170 (R/L): 5-Year limited warranty on Rewinder – 1-Year limited warranty on Power Adaptor
ZCAT-3-220 (R/L): 5-Year limited warranty on Rewinder – 1-Year limited warranty on Power Adaptor

General: Max Roll Diameter (in)

ZCAT-3-170 (R/L): 12 (305mm)
ZCAT-3-220 (R/L): 12 (305mm)

Core Diameter (in)

ZCAT-3-170 (R/L): 3 (76mm)
ZCAT-3-220 (R/L): 3 (76mm)

Max Label Width (in)

ZCAT-3-170 (R/L): 6.7 (170mm)
ZCAT-3-220 (R/L): 8.5 (215mm)

Max Label Length (in)

ZCAT-3-170 (R/L): ANY
ZCAT-3-220 (R/L): ANY

Max Roll Weight (lbs)

ZCAT-3-170 (R/L): 15 (6.8kg)
ZCAT-3-220 (R/L): 15 (6.8kg)

Dimensions-HWD (in)

ZCAT-3-170 (R/L): 16 x 19 x 15 (406 x 482 x 381mm)
ZCAT-3-220 (R/L): 16 x 19 x 15 (406 x 482 x 381mm)

Weight (lbs)

ZCAT-3-170 (R/L): 36 (16.3kg)
ZCAT-3-220 (R/L): 37 (16.8kg)

Max Speed (ips)

ZCAT-3-170 (R/L): 35 (890mm)
ZCAT-3-220 (R/L): 35 (890mm)

Max Speed (ips)

ZCAT-3-170 (R/L): 0.5 (13mm)
ZCAT-3-220 (R/L): 0.5 (13mm)

Max Torque (in-oz)

ZCAT-3-170 (R/L): 228
ZCAT-3-220 (R/L): 228

Max RPM

ZCAT-3-170 (R/L): 485
ZCAT-3-220 (R/L): 485

Number of Flanges

ZCAT-3-170 (R/L): 1
ZCAT-3-220 (R/L): 1

Power Specifications

ZCAT-3-170 (R/L): 100 - 240VAC in, 24VDC 120W Out
ZCAT-3-220 (R/L): 100 - 240VAC in, 24VDC 120W Out

Available Options
(ZCAT-3-170 (R/L), ZCAT-3-220 (R/L))

PCZ-1 (Optional Digital Counter Module)
FLANGE, OUT, QC-12 (Optional Outer Guide Flange)
ADAPT-326 (6” Core Adaptor Set)
