Home For Work Projectors Portable EX5230 Pro XGA 3LCD Projector
DISCONTINUED

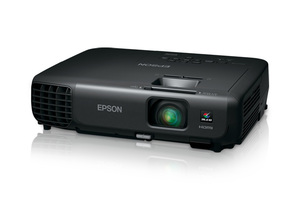

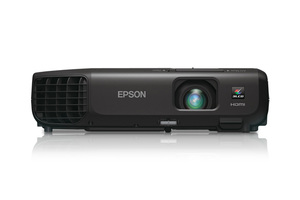

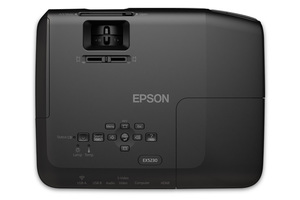

EX5230 Pro XGA 3LCD Projector

Zoom In
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector
EX5230 Pro XGA 3LCD Projector

Proven performance for any presentation.

The powerful EX5230 Pro ensures professional presentations in virtually any setting, even in large venues with ambient light. Offering high brightness and XGA resolution, this powerful performer ensures engaging presentations with sharp detail. And, it features fast wireless connectivity, making it easy to project content from laptops, smartphones and tablets (optional wireless LAN module required). Built-in HDMI delivers digital video and audio with just one cable, while Epson's Simple Setup Suite enables flexible positioning and rapid setup. It's the ideal projector for busy professionals whose presentations demand proven performance.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1024 x 768 (XGA)
      Color Brightness: 3500 lumens1
      White Brightness: 3500 lumens1
      Throw Distance Calculator
  • Model: V11H553020
Find Accessories Support
REPLACEMENT PRODUCT :
EX5260 Wireless XGA 3LCD Projector
EX5260 Wireless XGA 3LCD Projector
Model: View Main Product Page Learn More

Specifications Projector:

Projection System: Epson 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 3500 lumens1White Brightness - White Light Output: 3500 lumens1Aspect Ratio: 4:3Resolution: 1024 x 768 (XGA)Resize: 640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)Lamp Type: 200 W UHELamp Life:
  • ECO mode: Up to 6000 hours2
  • Normal mode: Up to 5000 hours2
Throw Ratio Range: 1.48 – 1.77Size - projected distance: 30" – 300" (0.8 – 8.0 m)Keystone Correction:
  • Automatic: Vertical: ±30 degrees
  • Manual: Horizontal: ±30 degrees
USB Plug 'n Play:
  • Projects audio and video
  • PC and Mac® compatible
Contrast Ratio: Up to 10,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Temperature: 41° to 95° F (5° to 35° C)Weight: 5.29 lbSecurity:
  • Kensington®-style lock provision
  • Password protect function

Projection Lens:

Type: Manual zoom / Manual focusF-number: 1.58 – 1.72Focal Length: 16.9 – 20.28 mmZoom Ratio: Digital Zoom: 1.0 – 1.2

Projector Details:

Display Performance:
  • NTSC: 480 lines
  • PAL: 560 line
    • (Depends on observation of the multi-burst pattern)

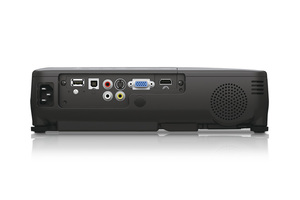

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • HDMI x 1
  • Computer / Component video: D-sub 15 pin x 1
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (White / Red)
  • USB connector: Type A x 1 (PC-free USBand Other, Wi-Fi®)
  • USB connector: Type B x 1 (USB Plug 'n Play and DC-06 document camera)
Speaker: 2 W monauralFan Noise:
  • ECO mode: 29 dB
  • Normal mode: 37 dB

Projector Dimensions:

Including feet: 11.6" x 9.0" x 3.1" (W x D x H)Excluding feet: 11.6" x 9.0" x 3.0" (W x D x H)

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19 ft (6 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: ±15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption:
  • ECO mode: 207 W
  • Normal mode: 283 W
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
