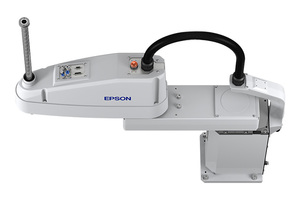

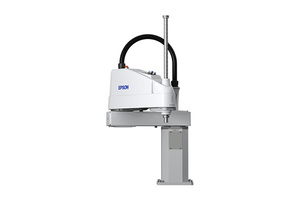

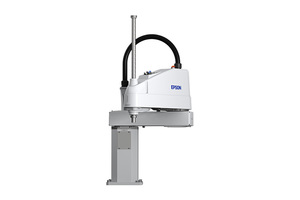

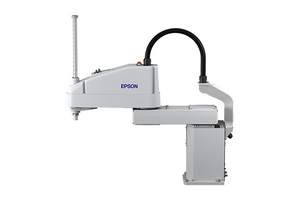

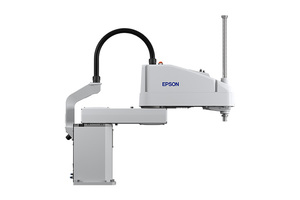

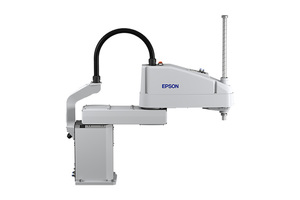

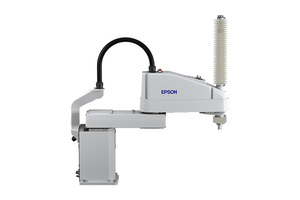

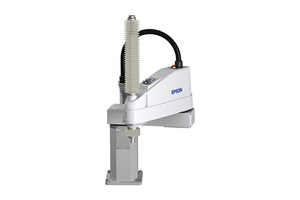

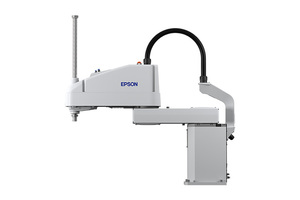

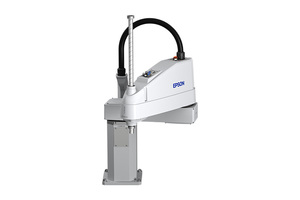

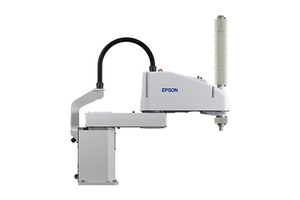

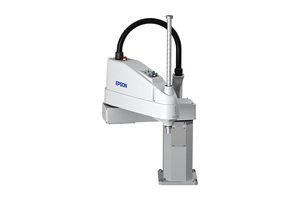

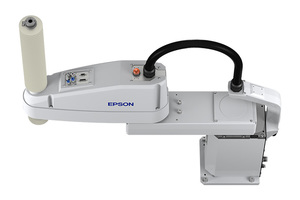

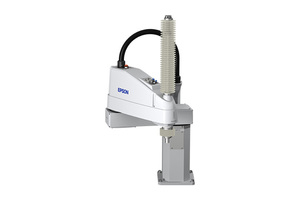

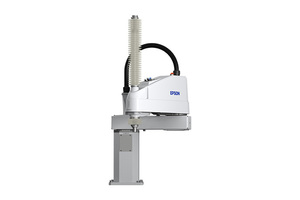

Epson LS20 SCARA Robots - 800mm

High Performance with Low Cost

Epson LS20 SCARA robots provide high performance with heavy payloads while maintaining a value price. With Epson QMEM's based Residual Vibration Reduction Technology, LS20 robots can handle heavy payloads at high speeds while competitive models have to reduce speed and accel values once any reasonable payloads are added. LS20 SCARA robots are perfect for higher payload applications such as large component pick and place, machine load/unload, palletizing, mechanical assembly, industrial part transfer and much more. When price performance is critical, Epson LS20 models deliver the high Epson Robot performance at a value price.

LS20 SCARA arms are available in 800 and 1000mm lengths with 420mm (390mm clean) Z-Axis lengths. They are also Clean ISO 4 models available. That makes for a lot of choices in the larger SCARA class of robots to make sure you get the right robot for your next application.

All Epson LS20 SCARA Robots are available with our low cost, high performance RC90 Controller that provides the ultimate experience in ease of use and reliability all at an incredibly low price. Epson RC+ 7.0 is also included and is the development environment of choice for reducing overall development time with powerful tools and easy to use integrated options such as Vision Guidance, DeviceNet, Profibus, Microsoft .NET support, GUI Builder and much more.

Epson LS20 SCARA robots handle high payloads at high speeds. They are perfect for applications requiring more reach and more payload while maintaining a lower cost. All Epson LS20 robots come with our RC90 controller which uses our Industry leading RC+ Development Environment and has a host of options available including vision guidance, .NET connectivity, DeviceNet, Profibus, CC-Link, GUI Builder and much more. LS20 robots are ideal for heavy payload pick and place, packaging, machine load/unload and many more.

High Performance
  • High speed cycle times to maximize part throughput
  • Outstanding Accel/Decel Rates with smooth start/stop motion
  • Top speeds of 11,250 mm/sec (LS20-A04x) gets parts moved fast and precisely
  • Low residual vibration due to powerful proprietary servo system design

High Payload AND High Performance
  • Payloads up to 20Kg with Rated Payloads of 10Kg
  • Maintain high speed cycles even as payloads increase

Great Value
  • Performance comparable to more expensive competitive models

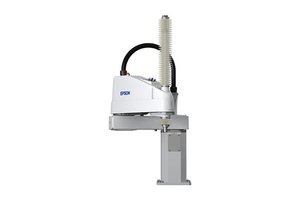

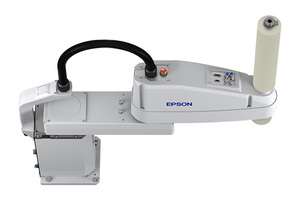

  • Standard and ISO 4 Clean Model available for semiconductor or other industries
  • Same Epson quality, reliability and support with a reduced price

Best in Class Controller and Development Software
  • Epson RC+ leads the industry in ease of use to save development time (Now shipping with Epson RC+ 7.0)
  • Hundreds of language statements and the power to get the job done easily and right the first time
  • Integrated options to maximize system performance and reduce overall development time (see options page for more details)
  • High performance processing power many times faster than competitors models

Used for a Wide Variety of Applications and Industries
  • Automotive
  • Hard Drive
  • Medical
  • Lab Automation
  • Consumer Products
  • Industrial Products
  • Telecommunications
  • Pharmaceutical
  • Packaging
  • Semiconductor
  • Electronics

Core Specifications:

Arm Length / Reach: 800 mm J1+J2 (350+450 mm)
J3 (Z): 420 mm (390 Clean)Repeatability: J1 + J2: +/-0.025 mm
J3: +/-0.010 mm
J4: +/-0.010 degPayload (Kg): Max: 20 Kg
Rated: 10 KgCycle Time: 0.38 secsMaximum Operating Speed: J1 + J2: 9,940 mm/sec
J3: 2,020 mm/sec
J4: 1,400 deg/secOptional Arm Configurations: Mounting Type: Tabletop
Clean: ISO 4 CleanOther: Insertion Force: 250N (25.49 kgf)
U Inertia (Max/Rated): 0.45 / 0.05 kg*m2
Development Software: EPSON RC+ 7.0

Other Specifications:

Motor Wattage: J1: 750 Watts
J2: 600 Watts
J3: 400 Watts
J4: 150 WattsUser Lines: Electric: 15 lines (D-sub); 9 lines (D-sub)
Air: 6mm x 2, 4mm x 2Environmental: Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight: 47 KgDimensions: Mounting Hole Footprint(mm): 200 x 200 (4-M16)
Z Axis Diameter: 20 mmRobot Cables: 3M (standard), 5M (optional), 10M (optional)


Robot Options: Vision Guide (CV2 or PV1)
DeviceNet, EtherNEt/IP, Profibus, EtherCat, CC-Link
Conveyor Tracking
Force SensingSoftware Options: .NET Support (EPSON RC+ 7.0 API)
GUI Builder
