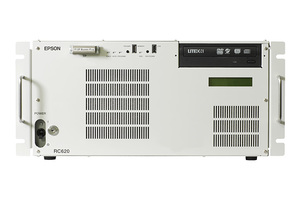

Epson RC620+ Controller

Powerful, Open Architecture and Easy to Use

  • Industry Leading Ease of Use with Epson RC+
  • Controls Epson G-Series, RS, EZ Modules, and 6-Axis Robots
  • High Performance, Open Architecture, PC Based
  • Wide Variety of Integrated Options Available

The Epson RC620+ controller is the ultimate in high peformance controllers with both power and open architecture. More than just a connection to a PC, the RC620+ is a PC Based Controller but with the power of a real time engine running the up to 32 tasks and SPEL+ language. In addition, the RC620+ uses our Epson RC+ development environment which is the Industry Leader in ease of use. Advanced and beginning users alike select the RC620+ as their robot controller of choice because it saves them time and money with every application. Capable of controlling up to 8 axes, the RC620+ provides superior PowerDrive servo control for super smooth motion, fast accel/decel times, and fast cycle times. The RC620+ can control Epson G-Series and RS-Series SCARA robots, Epson EZ Modules, and also Epson PS, S5 and C3 6-Axis robots. All of this along with an open architecture design allows customers to add 3rd party software and hardware to build systems to suit their needs.

The RC620+ comes standard with our Industry Leading Epson RC+ Controls software and lots of fully integrated options. As the Industry Leader in ease of use, Epson RC+ wizards, point and click setup, Jog and Teach window, Integrated Debugger, Epson Smartsense and many other features help reduce overall development time as compared to competitive robot systems. In addition, options such as Vision Guidance, .NET support, EtherNet/IP, DeviceNet, Profibus and much more are fully integrated into the Epson RC+ development environment to maximize performance and ease of use.

The RC620+ is capable of controlling up to 8 axes from the core controller and additional robots can be added through external drive units as well. The core machine can control 2 G-Series SCARA robots or a G-Series on a Module or a 6 Axis robot on a module or many other combinations. Up to 20 axes total. All this power from a single controller. No wonder the RC620+ is the high peformance robot controller of choice.

The RC620+ is a powerful, open architecture robot controller with super flexibility and time saving features throughout. The PowerDrive servo system provides advanced servo control for fast accel/decel times not seen with other robots as well as high performance motion profiles and path control. In addition, the SPEL+ language and Industry Leading EPSON RC+ development environment provide the tools to make robot programming easier to help save our users time and money. With the ability to control up to 20 Axes (2 6-axis arms + 2 G-Series SCARA Arms) the RC620+ has all the power you need yet at the same time the EPSON RC+ development environment is 2nd to none in ease of use. All this and more.... but what else would you expect... It's an Epson.

High Performance
  • High Performance AND Open Architecture
  • Super fast CPU's (2) and powerful real time performance
  • Fast Robot Cycle and Program Execution Times
  • Outstanding Accel/Decel Rates with smooth start/stop motion
  • Controls up to (2) 6-Axis AND (2) G-Series SCARA Arms from 1 Controller
  • Epson PowerDrive Servo system ensures maximum robot performance

Flexibility and Expandability
  • Ability to easily add 3rd party software and Hardware
  • Controls Epson G-Series/RS SCARAS, EZ Modules and C3/PS/S-Series 6-Axis Robots
  • Fully Integrated Options including: Vision Guidance, .NET Connectivity, EtherNet/IP, GUI Builder, Security Option and more

Best in Class Controllers and Development Software
  • Epson RC+ leads the industry in ease of use to save development time
  • Two tiered controller offerings allow high performance or low cost solutions
  • Integrated options to maximize system performance and reduce overall development time (see options page for more details)
  • High performance processing power many times faster than competitors models

Used for a Wide Variety of Applications and Industries
  • Automotive
  • Hard Drive
  • Medical
  • Lab Automation
  • Consumer Products
  • Industrial Products
  • Telecommunications
  • Pharmaceutical
  • Solar
  • Packaging
  • Semiconductor
  • Food
  • Electronics

Technical Specifications:


Basic Hardware Specs: Chassis Description: Single Box Chassis; 19 inch rack mount size with passive backplane, shock mount drive bay and 300 watt power supply
CPU: (2) Intel CPU's for Maximum Performance
Memory: 1GB, RGB Max
Hard Drive: 120GB (Show mount drive bay)
Graphic Display: Built-in Video Display Adapter
Option Slots: Up to 3 PCI and 4 Real Time Option Slots Available
Mounting Options: Desktop, Rack, Floor
Basic Software Specifications: Communication: Ethernet TCP/IP multiple communication channels available from SPEL+PC Requirements: Operating System: Microsoft Windows XP ProfessionalError Handling: Error History
User Errors
Automatic Error Logging
User defined errors and messagesSource Code Editor: Color coded with auto syntax assist, code indent, and built-in EPSON SmartSens™ TechnologyCommunication Interfaces: Ethernet Port: Built-in 1000 Base-T/100 Base-TX Ethernet Port
USB Ports - 2 General Purpose USB Ports
RS232 Ports: 1 Port (Up to 8 additional)Development Environment: EPSON RC+ 6.0 - Project based development environment including:
  • Project Explorer for easy access to application files
  • Point file spreadsheets for editing points
  • Run Window for fast development
  • Robot Manager for Jogging, teaching points, and configuring robot parameters
  • I/O Monitor and I/O Label Editor allow easy setup and viewing of I/O Status
  • Task Manager provides debugging/monitoring dialog for all actively running tasks
  • Point and click configuration wizards
  • Operator Window for easy production use
  • Fully Integrated help system
Digital I/O: Standard I/O: 24 Inputs / 16 Outputs (Optically Isolated)
Expansion I/O: 32 Inputs / 32 Outputs (optional)Debugger: Source level with single step, breakpoints, watch variables and built in EPSON Smartsenseā„¢ technologyTeaching Methods: Remote
Direct
Manual Data InputMultitasking: Up to 48 simultaneous tasks (16 are background tasks)SPEL+ Language: SPEL+ high performance language with 400+ commands
Powerful, easy to learn structured language with features including: functions, parameter passing, variable types, long variable names, event traps, error handling and much moreLanguages Supported: English, French, German, Japanese, Chinese

Options:


Available Robots: G-Series SCARA
RS-Series SCARA
C3 6-Axis
Pro Six 6-Axis
S-Series 6-Axis
EZ Modules Linear AxesOptions:
  • Option Slots: Up to 3 PCI and 4 Real Time Option Slots
  • Vision Guidance: Industry leading ease of use with Vision Guide 6.0
  • Conveyor Tracking: Vision or Sensor based
  • Expansion I/O: (32 Inputs/32 Outputs) up to 4 boards
  • Fieldbus Slave or Master Boards: EtherNet/IP, DeviceNet, Profibus, CC-Link
  • VB Guide: Microsoft .NET Communication Module
  • LabView Support: Available with VB Guide .NET Communication Module
  • GUI Builder: Build User GUI from EPSON RC+ Environment
  • Security Option: Allows user to password protect system
  • Additional Axis Control: Available with Pulse Generating Board
  • RS232-C Ports: Up to 8 additional ports with 2 option boards
  • ECP Software Option: Supports External Control Point Motion
  • Teach Pendant: TP1 Teach Pendant

Physical Specifications:


Dimensions: Control Unit: 430W x 420D x 210H (mm)
Drive Unit (Option for additional Robot Control): 376W x 170.5D x 275H (mm)Weight: Control Unit: 25 Kg (4 Axis Configuration)
Drive Unit (Option): 9Kg (4 axis configuration)Environment: Temperature: 5-40 deg C
Humidity: 20-80% (no condensation)
Standards for Environment: RoHSSafety Standards and Features:
  • CE Compliance
  • ANSI/RIA 15.06-1999
  • UL1740 (option)
  • Emergency stop switch
  • Safeguard Circuit
  • Low Power Mode
  • Dynamic Brake
  • Encoder Cable Disconnection Error Detection
  • Motor Overload Detection
  • Irregular Motor Torque Detection
  • Motor Speed Error Detection
  • Positioning Overflow
  • Speed Overflow
  • Servo Error Detection
  • CPU Irregularity Detection
  • Memory Check-Sum Error Detection
  • Motor Driver Overheat Detection
  • Over-Voltage Detection
  • AC Power Supply Voltage Reduction
  • Temperature Error Detection
  • Fan Error Detection
Robot Manipulator Control: Joint Control: Up to 8 joints simultaneous control (AC Servo)
Motion Type: CP (Continuous Path) motion, PTP (Point to Point) motion
Speed/Accel/Decel: Fully programmable
Multiple Robot Control: Up to 4 robots (20 axes) from 1 controllerPower Source: Power Source: 200-240 VAC Single Phase 50/60 Hz
Maximum Power Consumption: 2500W (when using multiple manipulators)
