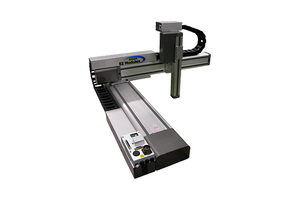

Epson EZ Modules 3-Axis Robots

Flexible, Powerful, Wide Variety

  • Rigid Arm Construction
  • High Speed and High Payload Capable
  • Wide Variety of Sizes Available
  • High Precision Linear Guides

3-Axis Epson EZ modules are available in heavy configurations with a Heavy X, Medium Y, and Compact Z Axis. Capable of handling up to 15Kg payloads, 3-Axis EZ modules have a +/-10 micron repeatibility (per axis) and are ideal for a wide variety of different application types and industries. Epson EZ Modules are commonly used in medical, lab automation, semiconductor, industrial, automotive, electronics and many other industries.

Epson EZ Modules are available with our industry leading PC based RC620+. It is the controller of choice for customers that prefer open architecture PC based controls for maximum power and flexibility. With Epson, customers can also take advantage of one controls solution for their entire factory regardless of which Epson Robots they select (6-Axis, SCARA or Linear Axes). Plus, our development environment, Epson RC+ , provides industry leading ease of use due to the intuitive design and multitude of time saving features and capabilities. The power and flexibility of the Epson RC620+ PC based controller also reduces workcell integration by providing all the functionality normally required for a typical robot workcell in one compact package.

3-Axis Epson EZ Modules are ideal for simple pick and place applications but they can also be used for many different jobs like sealant or glue laying applications, parts handling and even precision assembly tasks. With the Epson RC620+, up to 8 axes of coordinated motion can be created and up to 20 axes can be controlled from just 1 controller. So Epson EZ Modules are commonly used in conjunction with other Epson SCARA or 6-Axis robots.

Epson 3-Axis EZ Modules are ideal for pick and place applications or transferring of parts. Due to the power of our Epson RC620+ controller and advanced servo control capabilities, Epson EZ Modules are also commonly used for glue, sealant or other applications where path control is important. Epson 3-Axis EZ Modules are commonly used in the medical, automotive, lab automation, industrial products, consumer products and many other industries.

High Performance
  • 1500mm/sec speed (per axis)
  • +/-10 micron repeatability (per axis)
  • High rigidity provides for fast cycle times
  • Heavy duty axes provide maximum payloads and performance

Wide Variety of Arm Sizes
  • 1st Axis (RH-Heavy) available in 400-1000mm lengths
  • 2nd Axis (RM-Medium) available in 350, 550 and 750mm lengths
  • 3rd Axis (RS-Small with brake) available in 200, 300 and 400mm lengths

Best in Class Controllers and Development Software
  • Epson RC+ leads the industry in ease of use to save development time
  • Can be used to control EZ Modules in combination with G-Series SCARA or C3/S5 6-Axis robots
  • Integrated options to maximize system performance and reduce overall development time (see options page for more details)
  • High performance processing power many times faster than competitors models

Used for a Wide Variety of Applications and Industries
  • Automotive
  • Medical
  • Lab Automation
  • Consumer Products
  • Industrial Products
  • Pharmaceutical
  • Semiconductor
  • Electronics

Core Specifications:

Arm Length / Reach: RP-HMSz Arm Lengths
  • RH (Heavy): 400, 600, 800, 1000
  • RM (Medium): 350, 550, and 750mm
  • RSz (Small with Brake): 200, 300, 400mm
Repeatability: RH: +/-0.010mm
RM: +/-0.010mm
RSz: +/-0.010mmPayload (Kg): RP-HMSz (Combined Max/Rated): 15/10KgMaximum Operating Speed: 1st Axis (RH): 1500 mm/sec (1000mm is 1200 mm/sec)
2nd Axis (RM): 1500 mm/sec
3rd Axis (RSz): 750 mm/sec
Mounting Configurations: RP-HMSz: Table Top Mount

Other Specifications:

Motor Wattage: 1st Axis (RH): 400 Watts
2nd Axis (RM): 400 Watts
3rd Axis (RSz): 150 WattsEnvironmental: Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight: RP-HMSz Weight
  • RH400: 21 Kg
  • RH600: 25 Kg
  • RH800: 29 Kg
  • RH1000: 34 Kg
  • RM350: 12 Kg
  • RM550: 14 Kg
  • RM750: 17 Kg
  • RSz200: 7 Kg
  • RSz300: 7.6 Kg
  • RSz400: 8.3 Kg
Robot Cables: 3M (standard), 5M (optional), 10M (optional)
