ColorWorks Print & Apply Label Applicator System

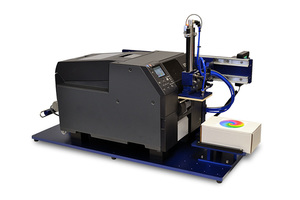

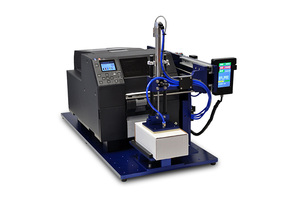

The LabelMill LM3612CTT label applicator, combined with the Epson ColorWorks inkjet label printer, delivers an on-demand, full color print & apply labeling solution. Designed as a compact, semi-automatic table-top configuration, the LM3612CTT is built for heavy-duty industrial use, but offers a user-friendly interface which makes changeover and adjustments quick and easy. The adjustable product fixture provides the flexibility to label a wide range of products with repeatable precision.

Contact Information:
LabelMill
Address: 2416 Jackson St., Savanna, IL 61074
Phone: 800.273.4707
Email: info@labelmill.com
Website: www.labelmill.com

Overview

Industrial modular design
Minimal system footprint
User-friendly operating software
Optional system widths, up to 8.5”
Integrated product sensors

Specifications

General:

General:

General overall dimensions (including printer):
- For C6000P: 20” W x 36 D x 24” H
Overall weight (including printer): 100 lbs
Interface Sensors:
- Product sensor – photoeye/ limit switch/ PLC input
- Auxiliary output with connector
Label placement tolerance: Up to +/- 1/32” when labels are produced to specifications and product handling is controlled
Electrical input: 110Vac/60 Hz – 5 amps
Air requirements: 80 psi/3cfm required
Acceptable label sizes:
- Minimum 1.0” wide x 1.0” long
- Maximum 4.25” wide x 10” long
Environment:
- Operating temperature 40-95 degrees Fahrenheit (10-35 degrees Celsius)
- 20-80% relative humidity, non-condensing
Optional features:
- GHS compliant labels & inks
- Custom product fixtures
- Smart tamp applicator module
- Multi-zone tamp pads
- Custom tamp stroke lengths
- Custom applicator modules
- Alarm stack/System status tower
- Printer width up to 8.5”
- Custom programming
