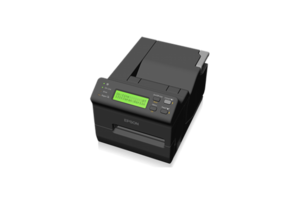

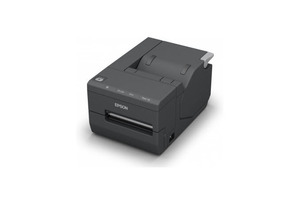

TM-L500A Label and Ticket Printer

The TM-L500A is a full-featured, compact airline printer that supports existing applications at a low cost of ownership. It is ideal for printing boarding passes and bag tags and can use all large fan-fold or roll media. It features fast printing, superior reliability and supports AEA 2009, Windows print commands and is IATA CUSS/CUPPS compliant. It is a drop-in replacement for existing proprietary printers.

  • Ideal for boarding passes and bag tags
  • Compact printer designed for limited spaces
  • Drop-in replacement for proprietary airline printers
  • Handles all large fan-fold or roll media up to 7.25mm
  • Fast print speeds up to 8 inches (200mm)/second
  • Supports AEA 2009 and Windows print commands
  • IATA CUSS/CUPPS compliant
  • Models available with or without LCD
  • Backed by worldwide service and support
  • ENERGY STAR® qualified

What's in the box:

  • TM-L500A printer
  • Power Cable
  • User Manual

Print Other:


Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpiPrint Speed:
  • Roll paper: 10 inches (250mm)/sec maximum
  • Boarding pass: 8 inches (250mm)/sec depending on media quality
  • Baggage tag 8: inches (200mm)/sec depending on media quality

General:


Temperature: 5 to 45°C (storage -25 to 50°C)Dimensions:
  • ATB: 156 x 328 x 148mm (W x D x H)
  • BTP: 156 x 236 x 148mm (W x D x H)
  • BTP: and roll holder 156 x 496 x 148mm (W x D x H)
Weight:
  • 2.8 kg (6.17 lbs)
  • 4.6 kg (10.14 lbs) with optional roll holder and no media
Safety Approvals:
  • EMC standards: FCC class A
  • Safety standards: UL, CSA, CE, TÜV, GOST-R

Print Fonts:


Print Fonts: 12 x 24Character Size: 1.25(W) x 3.0(H)mm (0.05" x 0.12")Fonts: 12 x 24Character Set: AEA, 95 Alphanumeric, 37 International, 128 x 11GraphicBarcode: EAN 13, Interleaved 2 of 5, Industrial 2 of 5, Code 39,Code 128

Media Handling:


Width: 54.0 ± 0.5mm, 79.5 ± 0.5mm, 82.5 ± 0.5mmRoll Diameter: 184.2mm (max)

Connectivity:


Standard Connectivity:
  • USB + Serial (standard)
  • Ethernet (optional)

POS Details:


Reliability:
  • Printer life 5 years
  • Print head life 100km
  • Autocutter life Up to 1,000,000 cuts depending on media
  • MTBF 360,000 hours
Two-dimensional Code Printing: PDF417, QR Code, Aztec, Datamatrix

Power:


Power Consumption: Approx. 2.0APower Source: 24 VDC ± 2.4 V
