DFX-9000 Impact Printer

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

Combining speed and reliability for maximum productivity.

With speeds up to 1550 cps and an MTBF rating of 20,000 power-on hours (POH), the Epson DFX-9000 offers the power and durability to tackle the most demanding print tasks. Day after day, you can count on it to efficiently process everything from reports and 10-part forms to shipping documents or mailing labels.

A robust, dependable workhorse, this 9-pin, wide-format printer boasts a 400-million-character print head life and 15-million-character ribbon cartridge, which minimizes production costs and reduces the need for frequent user intervention. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more.

  • Model: C11C605001
Our Price :


  • Prints multipart forms, labels, and more at speeds up to 1550 cps
  • Durable 9-pin performer offers an MTBF rating of 20,000 POH at 25% duty cycle
  • Boasts a 400-million-character print head life

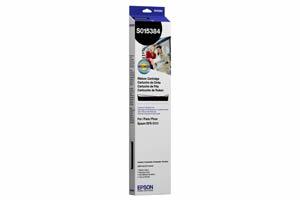

  • 15-million-character ribbon cartridge ensures low cost printing and reduces the need for frequent user intervention
  • Convenient LCD display allows for easy printer configuration and menu navigation
  • Prints 136-column, wide-format reports, plus forms up to 10 parts thick
  • Front and rear paper paths
  • Platen gap adjusts automatically, according to the paper thickness
  • Auto jam sensor eliminates wasting forms
  • Enhanced connectivity supports standard Parallel, Serial, and USB interfaces

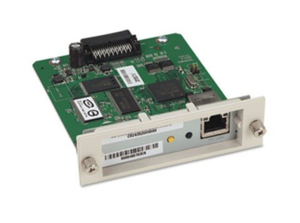

  • Accommodates optional internal Type B interface boards for easy networking
  • Includes a one-year on-site limited warranty in the U.S. and Canada

What's in the box:

  • Printer
  • 1 Ribbon
  • Power Cable
  • Quick Installation Guide
  • CD with driver and manual

Print Other:

Printing Technology: 9-pin, serial impact dot matrixPrint Direction: Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.ISO Print Speed:
  • High Speed Draft: High Speed Draft 1550 cps (10 cpi)
  • Draft: 1320 cps (10 cpi)
  • Near Letter Quality: 330 cps (10 cpi)

Characters & Lines:

Character Sets: 11 Character tables, 13 international character setsResident Bitmapped Fonts:
  • Epson Super Draft 10 cpi
  • Epson Draft 10, 12 cpi
  • Epson NLQ Roman 10, 12, proportional
  • Epson NLQ Roman / San Serif 10, 12, proportional
Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5Characters per Line: 136 characters at 10 cpiLine Spacing: 6 lines per inch defaultFormatting: 1/6-inch, 1/8-inch or programmable in 1/432-inch increments


Sound Level: 58 dBA (ISO 7779 pattern)Dimensions: 27.6" x 14.9" x 14.3" (W x D x H)Weight: 75 lb

Paper Handling Impact:

  • Continuous form paper
  • Front Tractor: Multi-part 1 + 9 carbonless copies
  • Rear Tractor: Multi-part 1 + 6 corbonless copies
Width: Continuous forms 3 – 16.5" wideLength: Continuous forms 3 – 17"Labels: Minimum: 2.5" x 0.94"Paper Feed Speed: 26.5 millisecond per line at 1/6" line spacing; 15" per second continuous feedPaper Path:
  • Push tractor: Front or rear in, top out
  • Pull tractor: Front or rear in, top out (optional)

Impact Printer Details:

Software Drivers: Windows 95, 98SE, 2000, Me, XP and NT 4.0Printer Language:
  • Epson ESC / P
Input Buffer: 128KBInterfaces:
  • Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
  • RS-232C serial
  • USB 1.1
  • Type-B slot for optional interface cards
Control Panel: 9 buttons, 6 LEDs, and 1 LCD


MTBF: 20,000 POH (25% duty cycle)Print head life: 400 million characters at 14 dots/characterRibbon life: 15 million characters at 14 dots/character


Rated Voltage: 100 – 240V ACRated Frequency: 50 – 60 HzPower Consumption: Rated voltage 100 – 240V AC, input voltage range 90 – 264V , rated frequency range 50 – 60 Hz, input frequency range 49.5 – 60.5 HzPower Requirements: Rated voltage 100 – 240V AC, input voltage range 90 – 264V , rated frequency range 50 – 60 Hz, input frequency range 49.5 – 60.5 HzInput voltage range: 90 – 264VInput frequency range: 49.5 – 60.5 Hz
