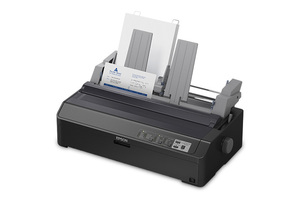

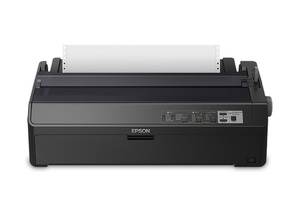

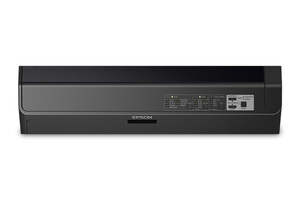

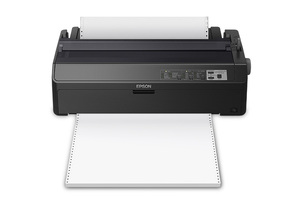

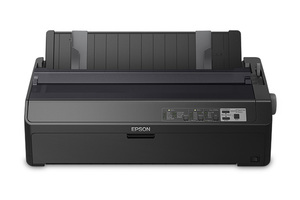

LQ-2090II Impact Printer

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

Wide-format impact printers built for demanding print environments.

The Epson LQ-2090II Impact Printer offers the durability and productivity needed for critical daily print requirements. These reliable 24-pin, wide-format impact printers boast a long life cycle, a 3-year limited warranty and speeds up to 584 cps1. Their up-to-8-million-character ribbon cartridge2 reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P2® and IBM® PPDS printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick, and feature an intuitive control panel for easy setup and operation.

  • Model: C11CF40201
Our Price :

$578.00

  • Extreme reliability ― long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures
  • Low cost of ownership ― up-to-8-million-character ribbon cartridge2 offers a low cost per page and reduces the frequency of user interventions
  • Powerful productivity ― ultra fast, wide-format, 24-pin printer speeds through multipart forms and reports at up to 584 cps1
  • Seamless integration with both new and legacy systems ― includes Epson ESC/P2 and IBM PPDS printer languages for greater flexibility
  • Advanced paper handling ― simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous or multipart forms up to 7 pages thick
  • Easy setup and operation ― user-friendly control panel with intuitive setup and configuration features
  • Low power consumption ― ENERGY STAR® V2.0 compliant
  • Multiple connectivity options ― Parallel and USB connectivity
  • Serial port and Ethernet compatible ― network card supports IPv6 (LQ-2090II NT model only)

What's in the box:

  • LQ-2090II Impact Printer
  • Printer driver disk
  • Quick Installation Guide
  • Rear sheet guide
  • Power cable
  • Push tractor unit
  • Ribbon catridge - black
  • Warranty certificate

Print Other:


Printing Technology: 24-pin, serial impact dot matrixPrint Direction: Bidirectional logic seeking for text and graphics printing; unidirectional text or graphics printing can be selected using software commandsISO Print Speed:
  • Ultra Speed Draft: 550 cps (10 cpi)
  • High Speed Draft: 487 cps (10 cpi)
  • High Speed Draft: 584 cps (12 cpi)
  • Draft: 366 cps (10 cpi)
  • Letter Quality (LQ): 121 cps (10 cpi)
Note: Normal print speed is achieved when printer safety cover is fully closed

Characters & Lines:


Character Sets:
  • 13 character tables
  • 14 international countries character sets
Resident Bitmapped Fonts:
  • Ultra High Draft: 10 cpi
  • High Speed Draft: 10, 12 cpi
  • Draft: 10, 12, 15, 17, 20 cpi
  • LQ: 10, 12, 15, 17, 20 cpi
Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5Formatting: 1/6" programmable in 1/360" increments

General:


Operating Systems: Windows® 10, Windows 8, Windows 7, Windows Vista®, Windows XP, Windows Server® 2003, 2008, 2012 and 2016Sound Level: 55 dBA (ISO 7779 pattern)Dimensions: 24.1" x 12.6" x 6.9" (W x D x H)Weight: 20.7 lbSafety Approvals:
  • Safety Standards: UL62368-1, CAN/CSA C22.2 No.60950-1, IEC/EN62368-1
  • EMI: FCC part15 subpart B class A, ICES-003 Class A
  • CE Markings: EN62368-1, EN55032 class A, EN61000-3-2, EN61000-3-3, E55024
Warranty: 3-year limited warranty in U.S. and Canada

Paper Handling Impact:


Forms: Forms, continuous, multipart (original + 5 carbonless copies), 1 + 6 copies with Pull Tractor (optional), labels, and roll paper
Maximum Thickness 0.14 mm (0.0055")Width:
  • Single Sheet: 3.9" to 16.5"
  • Continuous: 4.0" to 16.0"
  • Cut-sheet Feeder: 3.9" to 16.5"
Envelopes:
  • Envelope No.6
  • Envelope No.10
Length:
  • Single Sheet: 3.9" to 16.5"
  • Continuous: 4.0" to 22.0"
  • Cut-sheet Feeder: 3.9" to 16.5"
Roll paper: 8.5" widthPaper Feed Mechanism:
  • Friction feed (front, rear)
  • Push tractor (front, rear)
  • Pull tractor (front, bottom, rear)
  • Push and pull tractor (front, rear)
  • Cut-sheet feeder (optional)
  • Roll paper holder (optional)
Paper Feed Speed:
  • 30.3 millisecond per 1/6"
  • 5.5" per second continuous feed
Paper Path:
  • Manual Insertion: Front or rear in, top out
  • Cut-sheet Feeder: Rear in, top out
  • Tractor: Front, rear or bottom in, top out
  • Pull/Push Tractor: Front or rear in, top out

Impact Printer Details:


Software Drivers: Windows 95, 98, 2000, Me, XP and NT 4.0Printer Language:
  • Epson ESC / P2
  • IBM PPDS
Input Buffer: 128 KBInterfaces:
  • Standard: Bidirectional Parallel (IEEE 1284 Nibble Mode supported), USB 2.0
  • Optional (factory config. only): Serial Interface Board (LQ-2090II NT model only)
  • Network 10/100Base-TX Interface Board (LQ-2090II NT model only)
Control Panel: Functions: Font, Pitch, Pause, Tear-off/Bin selection, Line feed/Form feed, Load/Eject, Micro-adjust, Reset, Self test, Data dump, and default setting selection

Reliability:


MTBF: 25,000 POH (25% duty cycle)Total Print Volume: 50 million lines (not including printhead)Print head life: 400 million characters, Draft 10 cpi, 14 dots/characterRibbon life: 8 million characters, LQ 10 cpi, 48 dots/character2

Power:


Rated Voltage: AC 100 V – 240 VRated Frequency: 50 to 60 HzPower Consumption:
  • Operating Mode: Approx. 52 W (ISO/IEC 10561 Letter Pattern)
  • Ready Mode: Approx. 12 W
  • Sleep Mode: Approx. 0.5 W and 0.8 W (Network Model)
  • ENERGY STAR Compliant: Certified with V2.0
Power Requirements: Rated voltage 100 – 240V AC, input voltage range 90 – 264V , rated frequency range 50 – 60 Hz, input frequency range 49.5 – 60.5 HzInput voltage range: AC 90 to 264 VInput frequency range: 49.5 to 60.5 Hz

Notes:

1 Based on High Speed Draft Mode at 12 cpi.

2 Based on letter quality printing, 10 cpi, 48 dots/character.

3 Only available on the LQ-2090II NT model.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
