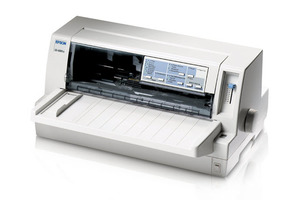

LQ-680Pro Impact Printer

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

Printing 413 cps in High-Speed Draft mode, the Epson LQ-680Pro creates letter-quality results on forms up to six parts thick. Thirty-eight percent faster than its predecessor, the popular Epson LQ-670, this economical printer races through your mission critical tasks like printing tickets, receipts, checks, labels, and more. It's straight paper path and flatbed feed design offer more efficient printing — without causing paper jams that can waste valuable time and damage high-cost forms. But, what's especially reassuring about the Epson LQ-680Pro is its advanced APG (Automatic Platen Gap) technology. Sensing the thickness of multiple-part forms, it automatically adjusts the position of the print head to prevent damage to the pins from unnecessary force.

    • Printing Method: 24-pin, impact dot matrix, narrow carriage
      Print Speed (cps @10 cpi):
      Print Head Life: 400 million strokes/wire
      Sound Level: 55 dB(A)
  • Model: C376101
Our Price :

$600.00

What's in the box:

  • Printer
  • User Guide
  • Drivers (CD)

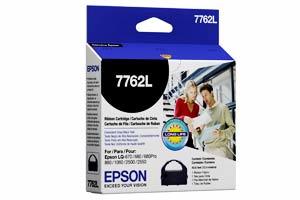

  • Ribbon

Print Other:


Printing Technology: 24-pin, impact dot matrixPrint Direction: Bi-directional with logic seekingISO Print Speed:
  • High Speed Draft: 413 at 10 cpi
  • Draft: 310 at 10 cpi
  • Letter Quality: 103 cps at 10 cpi

Characters & Lines:


Character Sets:
  • 13 standard version
  • 39 NLSP version
  • 14 international character sets
Resident Bitmapped Fonts:
  • Epson Draft 10 cpi, 12 cpi, 15 cpi
  • Epson Roman 10 cpi, 12 cpi, 15 cpi, Proportional
  • Epson Sans Serif 10 cpi, 12 cpi, 15 cpi, Proportional
  • Epson Courier 10 cpi, 12 cpi, 15 cpi
  • Epson Prestige 10 cpi, 12 cpi
  • Epson Script 10 cpi
  • Epson OCR-B 10 cpi
  • Epson Orator 10 cpi
  • Epson Orator-S 10 cpi
  • Epson Script C Proportional
Scalable Fonts:
  • Epson Roman 8 to 32 points (every 2 pt)
  • Epson Sans Serif 8 to 32 points (every 2 pt)
  • Epson Roman T 8 to 32 points (every 2 pt)
  • Epson Sans Serif H 8 to 32 points (every 2 pt)
Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostnetLine Spacing: 1/6" or programmable in increments of 1/360"

General:


Sound Level: 55 dB(A)Dimensions: 19.6" x 15.2" x 9" (W x D x H)Weight: 20.7 lbs

Paper Handling Impact:


Cut Sheets:
    Single sheet
  • Front entry, manual insertion
  • Width: 3.5" to 12"
  • Length: 2.8" to 16.5"
  • Thickness: .0025" to .0074"
  • Cut sheet multipart
  • Front entry, manual insertion
  • Width: 3.5" to 12"
  • Length: 2.8" to 16.5" (line glue on one side of the form, 11.7" maximum)
  • Thickness: .0047" to .018"
  • Copies: 1 original + 5 copies
Continuous:
    Continuous paper
  • Width 4" to 12"
  • Length (one page) 3" to 22"
  • Thickness .0025" to .018"
  • Copies 1 original + 5 copies
  • Continuous forms with labels
  • Base sheet width 4" to 12"
  • Base sheet length 3" to 22"
  • Total thickness .0075"
Envelopes:
  • No. 6, No. 10
  • Thickness .0063" to .0205"
Roll paper:
  • Width 8.5"
  • Thickness .0028" to .0035"
Paper Feed Mechanism:
    Feeding method
  • Friction feed (front manual, rear cut sheet feeder)
  • Push tractor feed (rear)
  • Feeder
  • Rear push tractor
  • Cut sheet feeder bin1 / bin2 (option)
  • Roll paper holder (option)
Paper Feed Speed:
  • 64 millisecond per 1/6"
  • 5" per second continuous feed
Paper Path:
  • Manual insertion (front in, front out)
  • Cut sheet feeder (rear in, front out)
  • Tractor (rear in, front out)

Impact Printer Details:


Software Drivers: Windows 3.1x, Windows 95, Windows 98, Windows 2000, Windows Me and Windows NT 3.51/4.0Printer Language: ESC / P2, IBM 2390 Plus emulationInput Buffer: 64 KBInterfaces: Bi-directional 8-bit parallel interface (IEEE-1284 Nibble Mode supported), Type-B interface slot optionControl Panel: Functions: Font, pause, tear off, LF / FF, load / eject, micro adjust, self test, data dump and the default settings

Reliability:


MTBF: 10,000 POH (25% duty cycle)Total Print Volume: 20 million lines (except print head)Print head life: 400 million strokes / wireRibbon life: Black fabric cartridge: 2 million characters (LQ mode, 10 cpi, 48 dots / character)

Power:


Rated Voltage: AC 120 VRated Frequency: 50 – 60 HzInput voltage range: AC 99 – 132 VInput frequency range: 49.5 – 60.5 Hz
