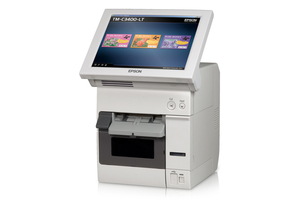

ColorWorks C3400-LT Label Terminal

Epson's ColorWorks C3400-LT label terminal features a high-speed CPU, an easy-to-use 12.1 inch TFT color LCD touch panel and a high-quality color-on-demand label printer all in one compact unit. No PC connection, keyboard or mouse is required, making it the perfect choice for locations where space is at a premium.

Model: C31CC35011

Find Ink Support View Service Plans

Overview

Compact label printing terminal with control board & touch panel
12.1 inch XGA TFT color LCD touch panel
Rugged water and dust-resistant design
High-quality on-demand color inkjet printing
Supports a variety of media types and sizes
Fast print speeds up to 3.7"/second in full color
6 USB ports for additional devices

Specifications

Print Other:

Printing Technology: MicroPiezo® inkjet technology, Automatic Nozzle CheckingPrint Resolution:

360 dpi x 180 dpi
360 dpi x 360 dpi
720 dpi x 360 dpi

Print Speed:

High-speed mode: 360 dpi x 180 dpi

2.7"/sec. (4.1" print width)
3.3"/sec. (2.8" print width)
3.7"/sec. (2.2" print width)

Fine mode: 360 dpi x 360 dpi

1.4"/sec. (4.1" print width)
1.7"/sec. (2.8" print width)
1.9"/sec. (2.2" print width)

Ink:

Ink Type: Pigmented ink, single CMY cartridge, composite black¹Ink Configuration: SCIJ15P with 3 colors CMY

General:

Dimensions: 11.8 x 12.3 x 13.5 – 18.6" max (W x D x H)

Fonts:

Barcode: Requires 1D/2D code generating utility: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, UCC/EAN-128, UCC/EAN-128M, RSS14, RSS14-Truncated, RSS-Limited, RSSExpanded, RSSExpandedM, PDF417, QR Code, Maxi Code, RSS14 Stacked, RSS Stacked Omnidirectional, RSS Expanded Stacked, Composite Symbology, DataMatrix, Aztec²

Media Handling:

Type: Roll-fed or fanfold; die cut or continuous; single layer or adhesive labels on liner; plain paper, fine paper, PET film, syntheticThickness:

Plain paper: 3.15 – 5.91mils (0.08 – 0.15mm)
Label and liner: 4.72 – 7.5mils (0.12 – 0.19mm)

Roll-fed Width: 1.2 – 4.4" (30 – 112.0mm)Sensors: Gap, black mark, media cutGuide: Continuous (stepless) adjustment with no tool from 1.2" to 4.4" (30mm to 112mm)Black Mark Size: Min. 0.20 x 0.16" (5.0 x 4.0mm)Output Tray: StandardDie-cut Label Gap: Min. 0.12" (3.0mm)Auto Cutter: Standard (full cut only)

Connectivity:

Standard Connectivity: Hi-Speed USB 2.0, Ethernet

Display Terminal:

LCD Resolution: XGA (1024 x 768)Display Type: 12.1" TFT color LCDViewing Angle: 0° ∼ 90°RAM: 1GB (2GB max.)Hard Drive: 250GBOperating Systems: Windows POS Ready 2009Processor: Intel® AtomE640 1.0GHzPorts: High-Speed USB (Type A) – 2 front, 4 rearEthernet: 10Base-T, 100Base-TX, 1000Base-TX

Printer Details:

Reliability: Auto Cutter: Up to 1.5 million cuts

See Full Specs Hide Full Specs

Print All Specs

Accessories

Epson SJIC15P Ink Cartridges for ColorWorks C3400

Ink

1-Year Extended Service Plan - Return for Repair

Service Agreements

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

Specifications Notes:
¹ Inkjet cartridge yields vary considerably for reasons including item printed, print settings, temperature and humidity. Yields may be lower when printing infrequently. A variable amount of ink remains in the cartridge after the "replace cartridge" signal. Ink from the first cartridge is used for priming the printer. Ink is used for both printing and print head maintenance.
² No character font or 1D/2D code font installed.
