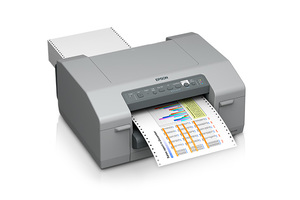

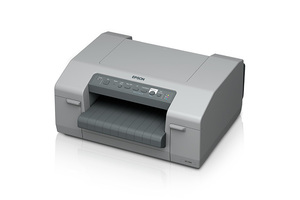

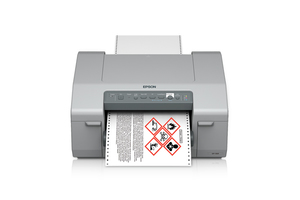

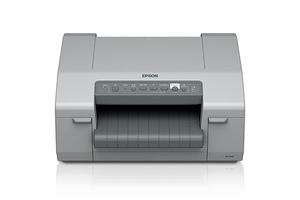

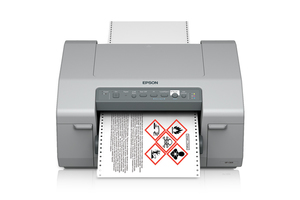

ColorWorks C831 Inkjet Label Printer

Epson's ColorWorks C831 industrial-strength inkjet label printer is ideal for GHS large format drum and chemical labels and more. It combines all the benefits of a rugged color inkjet printer with the accuracy of an 8-pin tractor feeder and is the first inkjet printing solution that has been BS5609 certified.

Model: C11CC68121

Find Ink Support

REPLACEMENT PRODUCT :

ColorWorks CW-C6500A Color Inkjet Label Printer with Auto Cutter

Model: View Main Product Page Learn More

Overview

Ideal for large labels including large-format drum and chemical labeling
Industrial-strength inkjet printer with tractor feeder
Fast print speeds of up to 16.5 pages per minute
Printable area up to 8.0 x 22"
Only inkjet solution that has been BS5609 certified¹
Supports a wide variety of media types and sizes

Specifications

Print Other:

Printing Technology: MicroPiezo® inkjet technologyPrint Resolution: 720 dpi x 720 dpi maximumPrint Width: 3.0 – 9.5 inches (76.2 – 241.3mm)Print Speed:

Draft mode: 16.5 pages per minute
Normal mode: 13.6 pages per minute
Super fine mode: 7.0 pages per minute¹

Ink:

Ink Type: Pigment ink, individual CMYK cartridges³Ink Configuration:

GJIC5(C) Cyan C13S020564
GJIC5(K) Black C13S020563
GJIC5(M) Magenta C13S020565
GJIC5(Y) Yellow C13S020566

General:

Operating Systems:

Windows® XP 32-bit (SP3)/64-bit (SP2)
Vista® 32-bit/64-bit (SP2)
Windows 7 32-bit/64-big
Windows Server 2003
Windows Server 2008

Temperature:

Operating: 10–35 degrees C
Storage: -20–40 degrees C

Humidity:

Operating: 20–80% RH humidity
Storage: 5–85% RH humidity

Sound Level:

Silent feed on: approx. 48dB (A)
Silient feed off: approx. 50dB (A)

Dimensions: 18.3 x 18.3 x 8.8" (W x D x H)Weight: Approx. 26 lbs (12.2kg) – without inkSafety Approvals:

EMC standards: CNS13438 Class A
Safety standards: BSMI (CN14336), Green Mark Program compliant, UL/C-UL, NOM, Argentine, CE, EN60950

Fonts:

Barcode: Code 39, Code 128, Interleaved 2 of 5, EAN-13, EAN-8, UPC-A, UPC-E, POSTNET, QR CodeControl Code: ESC/P Raster (undisclosed)

Media Handling:

Width: 3.0 – 9.5 inches (76.2 – 241.3mm)Type: Continuous paper (plain paper, label, medicine bags)Thickness: 2.5 – 7.5 mils (0.065 – 0.19mm)Length: 0.5 – 22.0 inches (12.7 – 558.8mm)²Feed Method: Push tractor feed (rear in/front out)

Connectivity:

Standard Connectivity: Hi-Speed USB, Bi-directional parallel (IEEE-1284 ECP mode supported), Ethernet

Display Terminal:

Ethernet: Ethernet 10/100 BASE-T

Power:

Rated Voltage: AC 110–240 VACRated Frequency: 50 – 60 HzPower Consumption:

Printing: Approx. 20 W (mean, ISO/IEC 10561 letter)
Standby: Approx. 2.3 W (sleep mode)

See Full Specs Hide Full Specs

Print All Specs

Accessories

Epson GJIC5 Ink Cartridges for ColorWorks C831

Ink

Service Agreements

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ Epson's ColorWorks C831 inkjet printer with Epson's DURABrite® pigment inks used in combination with Neenah Poly media has been BS5609 certified.

Specifications Notes:
¹ Print speed is based on printing the suite of ISO/IEC 24734 text and graphic images on 8.5" x 11" size pages. Speed of up to 16.5 pages per minute is based on draft mode. Actual print times will vary based on system configuration, software, and page complexity.
² Smallest individual label is 0.5" (12.7mm). Shortest distance between perforations is 4.0" (102mm). The last 5.5" (140mm) of media at end of a stack or roll is a non-printable area. Total form length from one Top-Of-Form to next T.O.F. must be aligned to an exact 1/8th or 1/100th of an inch.
³ Cartridge yields vary considerably for reasons including images printed, print settings, temperature and humidity. Yields will be lower with higher-density images, hot or dusty conditions, less frequent printing, or printing predominantly with one color. All ink colors are used for printing and printer maintenance, and all colors have to be installed for printing. For print quality, part of the ink from the included cartridges is used for printer startup and a variable amount of ink remains in the cartridges after the "replace cartridge" signal. See www.epson.com/cartridgeinfo for more information about EPSON ink cartridges.
