DISCONTINUED

Epson Stylus Pro 11880 Printer

Our Ultimate Expression

At Epson, we never forget our heritage. We never forget the thousands of Creative Professionals who helped guide our engineering development to become what it is today. And after a decade has passed, we are still fascinated by what is possible.

There is a single word used among the Stylus Pro engineering teams within Epson - Monozukuri (mono-zu-kuri). When translated, it represents the human involvement required to develop the world's most difficult technologies - and succeeding.

Introducing the Epson Stylus Pro 11880

Representing the ultimate expression of Epson Stylus Pro engineering, the Epson Stylus Pro 11880 is produced by a dedicated team of specialists. Every step of its production is scrutinized, while incorporating our latest technologies, including an advanced MicroPiezo® TFP print head, real-time automatic switching between Matte and Photo Black inks, automatic nozzle verification and cleaning, and more. The result is the world's most advanced 64-inch wide photographic printer.

Epson UltraChrome K3® is the standard by which all other professional level ink technologies are judged. Now enhanced with our breakthrough new Vivid Magenta pigments, our latest-generation ink technology requires only eight colors, including a three-level black technology, to significantly raise the quality levels for professional color and black-and-white prints.

Imagine producing 64-inch-wide archival prints with amazing color fidelity, gloss level, and scratch resistance, while providing consistently stable colors that significantly outperform lesser ink technologies. Imagine producing professional, neutral and toned, black-and-white prints with even higher density levels, along with virtually no metamerism or bronzing.

With an even higher level of ink droplet accuracy, we've developed an all-new MicroPiezo TFP print head, featuring a new ink repelling coating technology for reduced nozzle clogging. And, when combined with our new Epson AccuPhoto™ HD screening technology, at an astonishing resolution of 2880 x 1440 dpi, Epson has once again raised the level of image quality - even exceeding our previous best.

Capable of handling virtually any media type, in roll or cut-sheet, up to 64 inches wide, Epson sets the standard for professional media use. Whether producing sellable color or black-and-white photography, fine art reproduction, or color accurate proofs for client approvals, never before have Creative Professionals had such a powerful tool, allowing them to produce their vision without compromise.

Our latest Epson Stylus Pro printers continue to represent a level of technology unprecedented in Epson's history. Combining the extreme precision of an Epson Stylus Pro print engine, with the extraordinary performance of our latest Epson UltraChrome K3 Ink technology, Epson continues to redefine the future of wide-format printing.

  • Model: SP11880K3
REPLACEMENT PRODUCT :
Epson SureColor P20000 Standard Edition Printer
Epson SureColor P20000 Standard Edition Printer
Model: SCP20000SE View Main Product Page Learn More
Nine-Channel MicroPiezo TFP Print Head
  • Print head design capable of handling nine separate ink channels
  • One-inch wide high-performance print head with 360 nozzles per channel
  • Low vibration meniscus control for highly accurate dot shape and placement
  • All-new ink repelling coating to dramatically reduce nozzle clogging
Eight-Color Epson UltraChrome K3™ with Vivid Magenta Ink Technology
  • High-density pigments for an extremely wide color gamut
  • New formulation of Magenta pigments for extreme blues and purples
  • Professional print permanence ratings for truly sellable quality prints
  • High-gloss Microcrystal Encapsulation™ technology for reduced gloss differential
  • Superior scratch resistance from improved pigment and resin chemistry
  • Color is stable immediately after printing - no short-term color shifting
  • Produces a black density up to 2.55 with an L* value of 2.9*
  • *Data based on Epson Premium Luster Photo Paper (260)
Epson AccuPhoto™ HD Screening Technology
  • Advanced screening algorithm resulting in prints with superior color and clarity
  • Maximum resolution of 2880 x 1440 dpi for incredibly sharp text and line art
  • Extremely accurate fine blends and photographic transitions
Variable-Sized Droplet with TFP Technology
  • Produces variable-sized droplets as small as 3.5 picoliters to greatly decrease print times while optimizing photographic quality
  • Exotic Thin Film Piezo (TFP), along with Low Vibration Meniscus Control technology precisely controls the curvature of every ink droplet within each nozzle before releasing it onto the media. The result is extremely sharp and accurate placement of ink droplets for the ultimate in photographic print quality,
Advanced Black-and-White Printing Technology
  • Unique driver technology takes full advantage of our three-level black system to produce professional black-and-white prints from color or grayscale image files
  • Produces a truly consistent print with no color crossover or color cast
  • Some of the world's greatest black-and-white photography has been printed using this technology
Automatic Real-time Black Ink Mode Switching
  • Printer utilizes two different black ink modes Photo Black or Matte Black
  • This innovative solution optimizes black ink density for various media types, dramatically improving final print quality
Three-Level Black Ink Technology
  • Simultaneously uses Black, Light Black, and Light Light Black inks
  • Significantly improves the gray balance while eliminating colorcasts
  • Outstanding highlight-to-shadow grayscale accuracy for a smoother tonal range
  • Virtually eliminates any bronzing of the basic pigment chemistry
  • Enhances the ICC profiling process for ColorSync™ and ICM™ workflows
Superior Connectivity
  • Standard connectivity includes one USB 2.0 and one Gigabit Ethernet port
  • Professional Epson Photographic Drivers for Macintosh® and Windows®
  • Fully supported by most leading third party RIPs and workflows
Professional Media Handling with Automatic Roll Media Take-Up Reel
  • Prints on virtually any media type, in roll or cut sheet, up to 64-inches wide
  • All media is front-loaded via a unique straight-through media path
  • Accurate automatic loading of cut sheet media up to 64-inches wide in a variety of weights up to 1.5mm thick posterboard

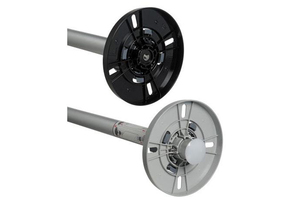

  • User-adjustable Roll Media Spindle accepts either 2-inch or 3-inch media cores
  • Produces impositions based upon a work-and-turn process, allowing for printing on both sides of certain media types
  • Built-in Automatic Cutting System supporting most media types
  • Standard Automatic Roll Media Take-up Reel for unattended production of long print runs
  • Optional Retractable Fabric-Based Media Bin safely captures multiple prints up to 64" x 36"
Automatic Media Bar Code Tracking and Identification System
  • System automatically tracks media type, remaining length, media width, etc.
  • Data is stored within the barcode and printed at the edge of the roll before unloading
  • Reloading partially reused media rolls is now very efficient with less chance for mistakes
Epson Intelligent High-Capacity Ink System
  • Pressurized ink cartridge technology ensures reliable ink delivery at all printer speeds, while dramatically reducing the physical size of the ink cartridges
  • Nine individual 700ml (fill vol.) ink cartridges
  • On-the-fly ink cartridge replacement for increased productivity
Unique Printer Activity Lighting System
  • Nine individual amber LED lights provide live feedback about ink and printer activity
Automatic Head Alignment
  • Built-in sensor reads printed data for highly precise alignments of all color channels
  • Aligns both single and bi-directional print modes
Automatic Nozzle Verification and Cleaning
  • Embedded sensors quickly verify nozzle status without using media
  • System automatically performs a head cleaning if required
  • Nozzle verification is performed in under 30 seconds
  • Nozzle verification process consumes less than 1 ml of ink
  • Can be set to automatically perform check before each job; periodically; or can be turned off
True BorderFree™ Roll-Based Printing
  • Capable of printing off both left and right edges of roll based media (up to 54" wide), while automatically cutting top and bottom edges to produce a full-bleed print on all four sides
  • Fully trims finished prints more accurately and safely than by hand
High Performance Print Engine Speeds
  • Utilizing our latest print head technology, the Epson Stylus Pro 11880 printer is among the fastest wide-format printers in the industry.
Epson PreciseColor™ Manufacturing
  • Unique production technology to ensure printer-to-printer color consistency
  • Colorimetric calibration is performed during the manufacturing process
  • This process automatically evaluates and adjusts the color performance of each printer
  • The result is extreme color repeatability for demanding color performance over time
  • Completely eliminates the need for internal printer calibration devices or procedures
Apple® Macintosh® 16-bit Printer Drivers
  • Enhanced 16-bit data support for Macintosh users
  • Takes full advantage of 16-bit data files from compatible application software
  • Depending upon the file being printed, you may see a more accurate print
World Class Service and Support
  • Includes one-year of limited coverage under the Epson Preferred Protection Plan with toll-free telephone support available Monday through Friday and usually next-business-day on-site service
  • Optional one- or two-year Epson Preferred Plus service plans available

What's in the box:

  • Epson Stylus Pro 11880
  • 9 ink cartridges with capacity of 110 ml c / u: Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Yellow, Light Black, Light Light Black, Black Photo and Matte Black.
  • Manuals and drivers

Print:


Printing Technology: Advanced MicroPiezo TFP print head with ink repelling coating technology.
9-channel, drop-on-demand, Thin Film Piezo (TFP) ink jet
9-cartridge (C, LC, VM, VLM, Y, LK, LLK, PK and MK)
Auto Black Ink Mode Switching; real-time switch
Professional-level, pigment-based ink technologyMaximum Print Resolution: 2880 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi;
720 x 360 dpi; 360 x 360 dpi; 360 x 180 dpiPrint Speed: 16" x 20" prints from 0:50 to 7:39; Normal is 3:09
20" x 30" prints from 1:24 to 13:24; Normal is 6:19Nozzle Configuration: Color and Monochrome 360 nozzles x 9

Ink:


Replacement Ink: Photo Black T591100
Cyan T591200
Vivid Magenta T591300
Light Black T591700
Light Cyan T591500
Light Light Black T591900
Matte Black T591800

General:


Operating Systems: Mac: Leopard 10.5, Snow Leopard 10.6, or Lion 10.7 (Intel based)
Windows: XP, Vista, and Windows 7 (32 & 64-bit)Dimensions: 92"(W) x 28"(D) x 46"(H)Weight: 384 lb

Printable Area and Accuracy:


Maximum Printable Width: 63.75"Maximum Printable Length: Limited by application, OS and driver/RIP used

Sheet Media Handling:


BorderFree Print Widths: Roll-based: Complete borderless printing on the following roll media sizes: 10", 13", 16", 17", 24", 36", 44", 50", 54"
Roll-based: Top and bottom edges can be automatically cut to any length when printing on roll media

Printer Details:


Printer Language: Epson ESC/P3 raster photographic drivers standardInterfaces: Includes as standard one hi-speed USB 2.0 (1.1 compatible) and one Gigabit Ethernet port

Notes:
