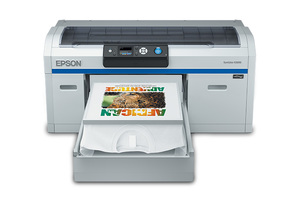

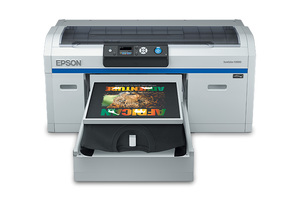

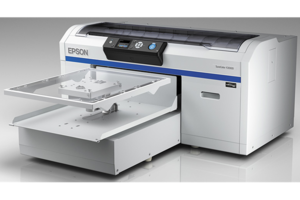

Epson SureColor F2000 White Edition Printer

The Rumors Are True.

For over three years, Epson dedicated a team of mechanical, chemical, and software engineers to create an all-new imaging technology dedicated for printing directly to garments. This endeavor allowed us to rethink everything and ultimately design a garment printer the way it was meant to be.

Introducing the Epson SureColor F2000 Series

Designed using the latest advancements in performance imaging, like our purpose-built Epson PrecisionCore TFP® print head, along with our all-new garment ink technology – Epson UltraChrome DG – the SureColor F2000 series will become the new benchmark in high-performance garment imaging.

DOWNLOAD SALES REFERENCE GUIDE ►

SureColor F2000 MAINTENANCE GUIDE ►

  • Model: SCF2000WE
REPLACEMENT PRODUCT :
SureColor F2270 Standard Edition Printer
SureColor F2270 Standard Edition Printer
Model: View Main Product Page Learn More

5- Colour UltraChrome DG Ink Technology

  • New pigment ink technology for cellulose-based garment imaging developed internally by Epson
  • Compatible with both 100% cotton or cotton synthetic blends to 50/50
  • Co-developed with the new print head technology to improve overall reliability
  • Next-generation high-dispersion white ink technology reduce sedimentation and coagulation
  • Very high white ink density, with a very natural white colour
  • Clean and bright colour ink performance for outstanding finished garments
  • Each cartridge has built-in ink filtering to better ensure ink entering the system is clear of contaminants
  • An additional internal ink filter screens the inks a second time before entering the print head further improving print head life and reliability
  • Robust garment durability
  • The five colour Epson prigment inks used in the Epson SureColor F2000 series printers, when applied to cotton fabrics, pass the requirements of the Oeko-tex Standard 100 for human ecological requirements of Class I products for adults, children and babies up to 36 months

PrecisionCore TFP Print Head

  • Advanced Thin Film Piezo (TFP) print chip core is only 1/1,000 mm thin
  • Based on the Micro-Electro-Mechanical Systems process for an unparalleled level of manufacturing efficiency for consistent production quality
  • Utilizes advanced piezo materials, delivering a higher-level of print head durability
  • Co-developed with Epson UltraChrome DG ink technology for extreme garment imaging reliability
  • Delivers precision ink droplet control for extreme print clarity and sharpness on garments
  • 1,440 nozzles per inch dedicated to white inks for incredible print speeds with up to 720 nozzles per inch assigned to colour ink
  • Segmented colour channels offers cleaning by colour pairs, reducing ink waste and cleaning cycle time

Simple Maintenance and Reliable Operation

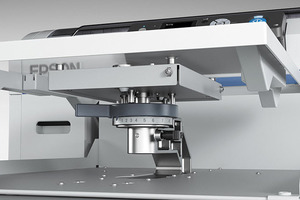

  • LED beam detection system automatically scans the surface of the garment prior to each imaging pass
  • Protects the print head from garment strikes for improved reliability
  • Scans the flat surface of garments up to 0.98" in thickness
  • Determines best platen height setting to achieve narrowest printing gap and highest imaging quality

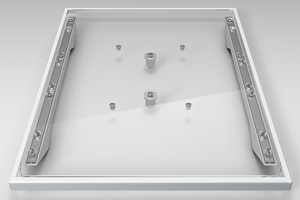

  • Works with all available platens: 4" x 4" sleeve, 10" x 12" small, 14" x 16" medium (included in-box) and 16" x 20" large
  • Compatible with any 3rd party platen

Imaging Software

  • Garment Creator workflow software developed by Epson
  • Very simple interface — quick learning-curve
  • Available for both Apple®, Macintosh®, and Microsoft®, Windows® platform
  • Raster-based software application supporting sRGB — TIFF (layered), PNG, JPEG, and BMP graphic files
  • Easy-to-Use garment layout. Choose your platen size, place your image file, position, scale, rotate, etc. — then print
  • Independent controls for colour and white imaging
  • Powerful colour adjustment features
  • Built-in Job accounting tools. Keeps track of ink usage by job for better cost estimation and expense tracking
  • Additional levels of imaging capability are available from 3rd party RIP Workflows

F2000 RIP INFORMATION ►

What's in the box:

  • SureColor F2000 Printer
  • Medium Platen (14” x 16”)
  • Installation Ink Set (250 ml Cartridges)
    SCF2000WE:WH,WH,C,M,Y,K, + 2 700ML Cleaning Cartridges
  • AC Power cable
  • Ink Bottle and Tubing
  • Head Cleaning Kit (Gloves, Cleaning Sticks, Ink Cleaner, Cup)

Print:


Printing Technology: Epson UltraChrome DG Ink
Advanced PrecisionCore TFP Print Head Maximum Print Resolution: Up to 1440x1440 dpi for White Ink
Up to 1440x720 dpi for Color InkNozzle Configuration: 8 Channels of 360 Nozzles

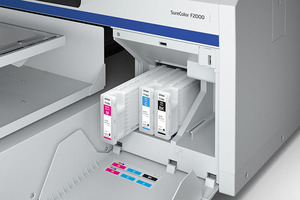

6 Ink Cartridge Bays

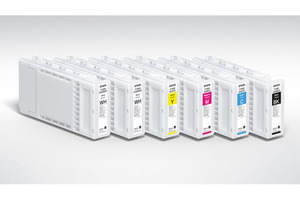

Ink:


Replacement Ink: Black Cartridge (600 ml): T7251002
Cyan Cartridge (600 ml): T7252002
Magenta Cartridge (600 ml): T7253002
Yellow Cartridge (600 ml): T7254002
White Cartridge (600 ml): T725A002

General:


Operating Systems: Windows 10, Windows 8, Windows 7
Apple® MacOS 10.12, OS X 10.11, 10.10

Garment Media Handling:


Thickness: Garments up to 0.98” ThickMedia Type: 100% Cotton or cellulose fiber garment recommended Maximum Print Area: Maximum Printing Area 16” x 20” (Optional Large Platen)Supported File Formats: Tiff and PNG recommended for support of transparency
JPG and BMP

Curing Recommendations:


Heat Press Times: Use more timeWhite Only: 45 sec/6 PSI for heavy coverage on large areasHeat Press Temperature: Heat Press Temp - 338°F/170°CHeat Conveyer Times: Heat Conveyer Temp - 320°F/160°CHeat Conveyer Temperature: White Only: 3.5 to 4.5 min
White & Color: 4.5 to 5.0 min

Printer Details:


Software Included: Garment Creator Application
Epson Professional Communication Driver for Windows
Epson LFP Remote PanelInterfaces: 10/100Base-T Ethernet and USB 2.0

Power:


Power Supply Voltage: AC 100-240 VRated Frequency: 50-60 HzRated Current: 0.4-0.7APower Consumption: Approx. 52W
Approx. 20W
Approx. 10W

Notes:

* Price is MSRP before any applicable rebates. Reseller prices may vary. All prices are in Canadian Dollars.

1 An individual cartridge may supply ink to more than one ink channel.

2 The ink mode is chosen during initial installation and cannot be changed.

3 All software and documentation available via web download.
