Epson SureColor P5000 Designer Edition Printer

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

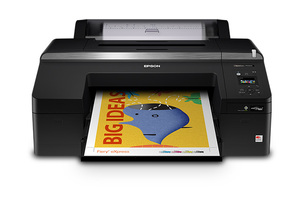

Professional 17" wide-format 10-color inkjet printer.

Designed to set the benchmark for professional imaging excellence, the 17" Epson® SureColor P5000 Series offers a refined design for enhanced performance and reliability. Ideal for professional photographic, fine art, graphic design and proofing applications, it features our advanced PrecisionCore® TFP® printhead and Epson Precision Dot screening technologies, developed to work exclusively with 200 mL UltraChrome HDX® pigment ink cartridges. UltraChrome HDX, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints, more than twice our previous generation of ink1. Plus, get versatile media handling with automatic switching between the high-capacity front paper cassette and the roll media feeder.

DOWNLOAD SALES REFERENCE GUIDE ►

  • Model: SCP5000DES
Our Price :

$2,495.00

  • Refined printer design — improved dust and static control for reduced printhead nozzle maintenance
  • Improved Black density — higher-density Black pigments for a wider contrast ratio and enhanced clarity for both color and black-and-white prints
  • Exceptional print permanence — offers next-generation pigment ink technology for up to twice the overall print permanence than our previous generation of ink1
  • Remarkable detail — Epson PrecisionCore TFP printhead delivers high print speeds with 360 nozzles per color channel, with variable-size ink droplets as small as 3.5 picoliters
  • Versatile, productive media handling — automatically switch between the high-capacity front paper cassette and the roll media feeder
  • Standard Edition — 10-color UltraChrome HDX Ink set features Orange and Green and three-level Black inks supporting advanced black-and-white photographic printing. Learn More ►
  • Commercial Edition — includes an all-new Violet ink (in place of Light Light Black) to deliver an industry-best 99 percent PANTONE® PLUS FORMULA GUIDE solid-coated color matching2, ideal for commercial and flexographic proofing applications. Learn More ►
  • Designer Edition — offers all the features of the Standard Edition, plus it includes EFI® Fiery® eXpress for Epson, an industry‑leading software RIP with true Adobe® PostScript® 3™ for accurate CMYK and spot color printing
  • Epson Precision Dot screening algorithm — ensures incredibly accurate control of the sizing and mixing of ink droplets for beautiful prints
  • Easy to use — 2.7" LCD panel allows for easy setup, control and maintenance of the printer
  • Epson Print Layout — simplified workflow and easy color control. Find this download on the Support tab.


Designed for use exclusively with Epson cartridges*.

SURECOLOR P-SERIES RIP INFORMATION ►

Print:


Printing Technology: Advanced PrecisionCore TFP 10-channel, drop-on-demand printhead with ink-repelling coating technologyMinimum Ink Droplet Size: Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per lineMaximum Print Resolution: 2880 x 1440 dpiPrint Speed: 8" x 10" prints from 0:59 to 2:26; normal is 1:283
11" x 14" prints from 1:42 to 4:04; normal is 2:313
16" x 20" prints from 2:46 to 6:48; normal is 4:113Nozzle Configuration: Color and monochrome heads; 360 nozzles x 10

Ink:


Ink Type: UltraChrome HDX pigment ink; 11-ink, 10-colorInk Configuration: Designer Edition ink configuration: C, LC, VM, VLM, Y, LK, LLK, O, G and PK/MKFade Resistance / Print Longevity: Color: up to 200 years; black-and-white: up to 400 years1

General:


Operating Systems: Mac: Mac OS X® 10.7 – macOS™ 10.12.x8
Windows: 10, 8.1, 7 (32-bit, 64-bit)8Temperature: Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)Humidity: Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Operating (recommended): 45 – 60% (no condensation)Sound Level: Less than 47 dB(A) according to ISO 7779Dimensions: Exit tray closed: 34.0" x 30.2" x 15.9" (863 x 766 x 405 mm)Weight: 114.6 lb (52 kg)Safety Approvals: FCC part 15 subpart B class B (United States)
CAN ICES-3(B) / NMB-3(B) (Canada)Country of Origin: ChinaWarranty: Standard 1-year usually next-business-day on-site repair with toll-free phone support Monday through Friday

Ink Supply System:


Ink Supply Fill Volume: 200 mL each color x 11 colors totalIn-box Ink Fill Volume: 80 mL each color x 11 colors totalInk Shelf Life: 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.*

Printable Area and Accuracy:


Maximum Paper Width: 17"Minimum Cut-sheet Size: 8" x 10" less marginsLine Accuracy: +/- 0.2% of specified length (+/- 0.26 mm min.)Maximum Printable Length: 529"

Sheet Media Handling:


Thickness: up to 1.5 mm (0.059") Single Sheet, Top-loading: Single Sheet, Top-loading: 17" x 22"
Paper Cassette Mulitple sheets up to 0.35 mm (0.014") thick, capacity varies by media, 250 sheet maximum on plain paper
Front Media Path Single sheet up to 1.50 mm (0.059") thickLeft/Right Margins: 3 mm each side; 6 mm or 0.24" totalTop/Bottom Margins: 3 mm each side

Roll Media Handling:


Single Roll-to-Roll / Top-loading Roll: 17" wide up to 0.05 mm thickMedia Core: 2" standard core, 3" adaptersMedia Thickness: 0.08 to 0.5 mm (0.02") thickRoll Cutting: High-speed internal rotary cutter; auto or manual6Minimum Auto Cut Length: 5.0" plus top/bottom marginTop/Bottom Margins: varies by media 15, 3, 20, 35 or 0 when using borderless cutLeft/Right Margins: 3 mm each side; 0.24" total; or 0" at supported BorderFree® widthsRoll Paper Remaining: printable barcode tracking system

Printer Details:


Printer Language: Epson ESC/P® raster photographic drivers standardSoftware Included: EFI® Fiery® eXpress for EpsonInterfaces: One Hi-Speed USB 2.0 port (1 port)
1000Base-T Ethernet (1 port)

Power:


Rated Voltage: AC 110 – 240 VRated Frequency: 50-60 HzPower Consumption: Printing: approx. 52 W
Ready: approx. 20 W
Sleep: approx. 5.0 W (1000 BaseT Ethernet in Standby)
Power off: less than 0.5 W ENERGY STAR® qualifiedRated Current: 0.7A

Auto-switching Black Ink Technology:


Black Ink Conversion Times, Normal Mode: Matte to Photo Black: approx. 3:444
Photo to Matte Black: approx. 2:254Black Ink Conversion Times, Quick Mode: Matte to Photo Black: approx. 2:004
Photo to Matte Black: approx. 0:584

Epson Intelligent Ink Cartridges:


In-box Cartridge Fill Volume: 80 mL each color x 11 colors total5Retail Cartridge Fill Volume: 200 mL each color x 11 colors total5Ink Cartridge Shelf Life: 2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*.5

Epson SureColor P5000 Receives Hot Ones Award 2017 from Professional Photographer

“Epson always ups the bar, and the P5000 prints with increased color gamut, gives higher density blacks, and delivers twice the print permanence of the previous generation.”
Read More

Notes:

* This product uses only genuine Epson-brand cartridges. Other brands of ink cartridges and ink supplies are not compatible and, even if described as compatible, may not function properly.

1 Ink lightfastness rating based on accelerated testing of prints on specialty media, displayed indoors, under glass. Actual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions. Epson does not guarantee longevity of prints. For maximum print life, display all prints under glass or lamination or properly store them. Visit www.wilhelm-research.com for the latest information.

2 99% coverage of PANTONE PLUS FORMULA GUIDE solid-coated palette based on Epson Proofing Paper White Semimatte printed with the Epson Driver at 2880 x 1440 dpi. PANTONE coverage may vary when printed under other conditions.

3 Print times are based upon print engine speeds only. Total throughput depends upon front-end driver/RIP, file size, printing resolution, ink coverage, network speed, etc. Normal is for prints imaged using 1440 x 720 high-speed mode.

4 Ink used in conversion varies considerably based on temperature and other factors.

5 Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with intialization cartridges and part of the ink from the first cartridges is used for priming the printer.

6 High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

7 Allowed by printer driver for Mac® and PC. Application, version of application and operating system version may limit maximum length.

8 For the latest drivers, visit www.epson.com/support
