For Work Printers Large Format SureLab D3000 Dual Roll Edition Printer
Discontinued

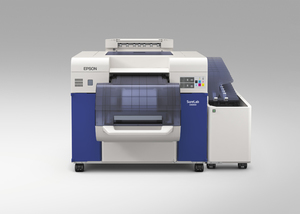

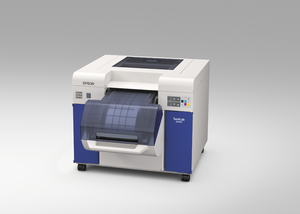

Epson SureLab D3000 Dual Roll Edition Printer

More Control. More Profit.

With the EPSON SureLab D3000, time saved becomes an asset, while photographic print quality becomes your greatest competitive advantage. Now is the opportunity to take control of your photographic printing, while bringing your photography and business to the next level.

Imagine printing archival quality photographs your clients will cherish for generations, while achieving unmatched color accuracy, shadow-to-highlight detail, clarity and sharpness. You can accomplish all this, in-house, on your schedule, without lab fees or delays — even during those busy holiday seasons.

Even more remarkable is the cost savings you’ll enjoy on every print. In most cases, you’ll significantly reduce your cost-per-print, while providing far superior quality than you get from the lab — all on your schedule.

Keeping your workflow simple, we’ve made SureLab fully compatible with virtually any Microsoft® Windows® based application by providing standard EPSON Professional Photographic printer drivers. This allows SureLab to print directly from the most popular photographic applications, from Adobe® Photoshop® and Lightroom® to Darkroom® software.

And best of all, SureLab is fully supported by Epson’s world-class service and support teams. Every SureLab comes standard with one year of free phone support and usually next-business-day on-site service. Plus, with our optional extended service programs, you can cover your SureLab up to five years in total.

Just imagine the competitive advantages — greater control over your workflow, extraordinary print quality, increased productivity and profitability, and more satisfied customers. SureLab just makes good business sense.

  • Model: SLD3000DR

Epson UltraChrome D6 Ink Technology

  • Six High-capacity 700 ml ink cartridges designed for serious Color and Black-and-White print production, while maintaining a low cost-per-ml
  • Worthy of the latest digital camera technologies, Epson UltraChrome D6 Ink produces prints words cannot describe. All we can say is that we've never seen a more perfect photographic print from any other form of printing - even from Epson
  • Epson UltraChrome D6 Ink penetrates the surface of the paper. The result? Water-resistant prints where the surface gloss level remain consistent, regardless of the highlight-to-media white transitions
  • Unlike traditional photo labs, SureLab uses the latest developments in "dry-lab" technologies, eliminating harmful chemicals from the photographic printing environment

Advanced Print Engine Design

  • High-performance print head technology designed for robust printing environments
  • BULLET POINT
  • Capable of print resolutions up to 1440 x 1440 dpi
  • Utilizes up to four Variable Sized Droplets (VSD), with sizes as small as 1.5 picoliters
  • Performance that delivers - up to 260 8” x 10” prints per hour in normal production mode, or up to 70 per hour at highest quality1
  • SureLab automatically verifies potential ink related imaging artifacts and fixes them before each print, perfect for completely unattended print operation

Software Compatibility

  • User-proven RGB driver technology, developed and refined from over 10 years of photo printing experience with Epson Stylus® Pro Series printers
  • Offers the features and flexibility required for Dry-lab use in a photo studio environment
  • Epson SureLab is compatible with Microsoft® Windows® XP and Windows 7
  • From Adobe® Photoshop® and Adobe Lightroom® to Darkroom® software and just about any Windows imaging application that has a print dialog
  • Work seamlessly with sRGB or AdobeRGB files, or use an ICC profiled workflow

Professional Roll Media & Back Print Control

  • High capacity 328' long rolls in traditional Luster and Glossy finish. Available in 4", 5", 6", 8", 10" and 12" widths
  • Media white point optimized for professional portraiture and pleasing flesh tones
  • Prints eject dry, de-curled and lay perfectly flat, ready to ship, frame, or mount
  • Extremely consistent manufacturing process ensures stable prints from lot to lot
  • SureLab prints are water-resistant and will last for generations2
  • Backside watermark for professional studio copyright protection
  • A world leader in Dot Matrix technology, Epson implemented dual back print units for two lines of up to 40 characters. Add the date, a reference number, the filename, or your website address.

Humidity Control

  • Each roll media unit has an electronic control for managing Relative Humidity when at extremes. Epson includes this feature standard, allowing use in extreme environmental settings by expanding the operating range from 30-60% Relative Humidity to 20-80% RH (non-condensing)

Advanced Output Management

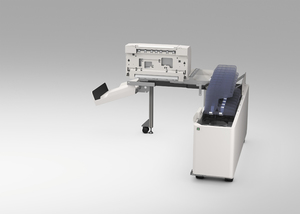

  • Optional 10 bin job sorter with top eject unit
  • Automatically sorts up to ten print jobs, from 1 to 50 pages per bin
  • Handles print sizes from 4" x 6" up to 8" x 12"
  • Adds the ability to top eject prints for any lengths greater than 12" long
  • Intelligent routing of prints, output too wide for the sorter stacks in the left side catch tray if wider than 8", or top ejects back over SureLab if between 12" and 48" long
  • Can be added to a SureLab D3000 at any time. Authorized Installation required

What's in the box:

  • Single or Dual Roll SureLab
  • Set of six 700ml ink cartridges
  • Media spindle. One in single roll unit, two in dual roll
  • Paper output tray
  • Two ribbons for back print unit
  • Roller cleaning sheets (package of 2)
  • Package of maintenance wipes (BEMCOT)
  • User Guide Kit (Documentation and Software)
  • AC power cable
  • Printer-PC, AC power and USB cables
  • Note: Printing media is not included

Print:


Printing Technology:
  • Advanced MicroPiezo VSD Print Head
  • 12-channel, drop-on-demand, ink jet print head
  • Epson UltraChrome D6 ink
  • 6-cartridge (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta)
  • Professional-level Dry-lab ink technology
Print Speed: Maximum Prints Per Hour1 (4" x 6" / 8" x 10"):
  • Everyday production mode - 720 x 720 dpi: 650 per hr /260 per hr
  • Highest quality mode - 1440 x 1440 dpi: 200 per hr / 70 per hr
Bi-directional Print mode (fixed)Minimum Ink Droplet Size: Enhanced Variable Droplet Technology as small as 1.5 picoliterNozzle Configuration: Color and Monochrome 736 nozzles per color

Ink:


Ink Type: Epson UltraChrome D6 Ink2Ink Palette: Black, Cyan, Magenta, Yellow, Light Cyan, Light MagentaReplacement Ink:
  • Black T710100
  • Cyan T710200
  • Magenta T710300
  • Yellow T710400
  • Light Cyan T710500
  • Light Magenta T710600

General:


System Requirements: Client System Requirements:
  • Windows 8, Windows 7 SP1, or XP SP3 (Professional 32-bit or 64-bit versions)
  • Multi-core Processor, 4GB RAM, 60GB free disk space
  • User must be logged on under an Administrator Account
  • User Acceptance Control (UAC) must be turn off
  • Up to 2 Client PC connections per SureLab system

Printer-PC System Requirements:
  • Dedicated unit provided by Epson America, Inc
  • Not to be used for other functions or applications
  • Monitor, keyboard, mouse and thumb drive required at setup
  • Requires assignment of Static network IP address
Temperature: Operating: 50° to 86°F (10° to 30°C)
Storage: -4° to 104°F (-20° to 40°C)Humidity: Relative Humidity Operating: 20 to 80% (no condensation)
0 to 40% Humidification Mode
40 to 60% Control System Off
60 to 80% Dehumidification Mode
Recommended storage: 5 to 85% (no condensation)Sound Level: Approximately 60 dB(A) or less (4-directional average complies with ISO9296)Dimensions: 52"(w) x 42"(d) x 37"(h)
Installation Space Requirements:
Dual Roll Unit 54"(w) x 61"(d) x 54"(h) Dual Roll w/Sorter
65"(w) x 77"(d) x 54"(h)
Minimum clearance of 30.7" required. Disassembly required for Dual roll unit to fit through doorway less than 31.5". Installation required by an EPSON authorized D-Series Reseller.
Sorter Option: 53"(w) x 27"(d) x 33"(h)Weight: 375 Lbs
Sorter Option: 127 LbsSafety Approvals: US Safety Standards: UL60950-1:2007
Canadian Safety Standards: CAN/CSA-C22.2 No.60950-1-07
US Electrical Standards: FCC Part15 Subpart B Class A 2007
Canadian Electrical Standards: CAN/CSA-CEI/IEC CISPR 22 Class AWarranty: Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureLab D-Series Extended service plans available for purchase.

Ink Supply System:


Ink Supply Fill Volume: 700 ml

Printable Area and Accuracy:


Maximum Paper Width: 12"Maximum Printable Length: 48"

Sheet Media Handling:


Left/Right Margins: 0 or BorderFree

Printer Details:


Software Included:
  • Epson Professional RGB Driver for Windows
  • SureLab Maintenance Utility (required for driver install)
  • Premium Luster and Glossy Media ICC profiles
Interfaces: One 100Base-TX or 1000Base TX Ethernet cable to Printer-PC Printer-PC to SureLab via USB 2.0 port (USB cable supplied)

Power:


Power Supply Voltage: AC 100-240 VRated Voltage: 50-60 HzRated Current: Rated 15 APower Consumption: Assumptions: 13 hrs/day power-on time 300 sheets printed / day 25 operating days / month
Sleep Mode Off: 97 kWh / Month
Sleep Mode at 15 minute transitions: 57 kWh / MonthPower Source: Plug Outlets: Qty 2, SureLab and Printer-PC

Notes:

* Price is MSRP before any applicable rebates. Reseller prices may vary. All prices are in U.S. Dollars.

1 Print speeds are based on print engine speed only. Total throughput times depend upon front-end software, file size, printer resolution, networking, number of pages per print job and frequency of jobs.

2 The SureLab D3000 is designed to use only Epson ink cartridges and not other brands of new or refilled cartridges, or other brands of ink or bulk ink systems. Using Epson cartridges is important for reliable performance and high image quality. Epson offers voluntary recycling of spent ink cartridges.
