For Work Printers Label SurePress L-6034 Label Press
Discontinued

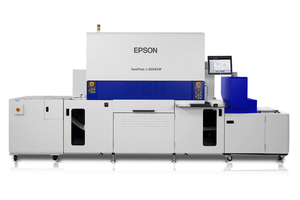

Epson SurePress L-6034 Digital Label Press

Epson Inkjet Label Press Begins a New Era

Epson's first linehead, inkjet label press with LED UV curing ink, the L-6034VW/L-6034V enables high-speed printing that's ideal for short-to mid-run jobs, producing labels with outstanding scratch and weather resistance. The newly developed PrecisionCore™ linehead, center drum system, and digital varnish deliver high-quality images. The space-saving, compact design integrates all of the functions required for label production, such as Corona Treater, White ink, digital varnish, and an additional UV curing unit.

Image Quality

The newly adopted pinning technology controls the range of ink scattering and realizes ultra-sharp dots and incredibly thin lines. The Epson digital quality color gamut, tonal gradation, flat print and lack of graininess help those in the prime label industry overcome their hesitation about using UV ink. Now UV printing can be used in more discriminating areas such as health and beauty, nutraceuticals, and food and beverage, as well as standard consumer packaged goods such as car polish, lawn and garden care, and household cleaner labels. In White ink printing, Surface White Print and Reverse-White Print are available to extend the range of expression on clear and metalized films. With the brand-new digital varnish ink, a gloss or matte finish can be selected for the overall label, and appealing partial accents can even be added using glossy or matte spot varnish.

      • All Epson Technology: PrecisionCore printhead, ink, robotic control, software and firmware
      • Up to 49ft/min, high-speed printing, ideal for jobs up to 13.4" (width)
      • CMYK, White, and Digital-varnish installed in-line
      • Digital-varnish ink provides a variety of surface finishes
      • Original LED UV curing ink eliminates the need for precoating of the substrate and can be used with off-the-shelf substrates
      • Automated control and in-line inkjet nozzle testing keeps productivity high, TCO low and press operation simple

      DOWNLOAD SUREPRESS L-6034VW SPECIFICATION SHEET ►

  • Model: C11CC67201
REPLACEMENT PRODUCT :

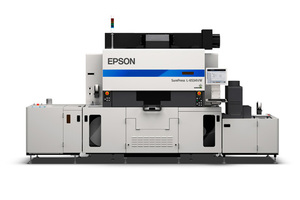

Epson SurePress L-6534VW Digital Label Press
Epson SurePress L-6534VW Digital Label Press
Model: View Main Product Page Learn More

PrecisionCore Linehead

  • Epson's most advanced print head technology, PrecisionCore, delivers our renowned, industry-leading output quality and durability, at high speeds.
  • The newly developed PrecisionCore linehead inkjet technology enables high-speed, single-pass printing, complemented by Epson's original ink and ink systems.
  • The Epson digital monitoring system maintains high productivity using Nozzle State Analysis to manage dropped inkjet nozzles.

LED UV Curing Ink

  • Quick-drying UV ink boosts productivity, and offers excellent weather, scratch, chemical, and water resistance.
  • Suitable for printing labels used in severe environments such as the outdoors.
  • A small, long-life LED light source is used, saving space, offering a lower energy use solution, and enabling printing on heat-sensitive substrates such as PE.

Print:


Printing Technology:
  • PrecisionCore linehead inkjet technology
  • Quick-drying UV ink
  • Epson UV Ink
  • White Ink Circulation System
  • Automated control and in-line inkjet nozzle testing
  • CMYK, White, and Multi-varnish inks installed in-line
Maximum Print Resolution: 600 x 600 dpiPrint Speed: Up to 49.21 ft/min (15m/min)
Up to 24.61 ft/min (7.5m/min) - Variable Data Printing

Ink:


Ink Type: LED UV Curing InksInk Configuration: L-6034V: Black, Cyan, Magenta, Yellow, Multi-Varnish
L-6034VW: Black, Cyan, Magenta, Yellow, Multi-Varnish, White

General:


Dimensions: 13.75' x 6.73' x 6.99' (4,190mm x 2,050mm x 2,130mm) WxDxHWeight: 4960.40lbs (2,250kg)

Sheet Media Handling:


Sheet Loading: Substrate Support: Self-adhesive label stock, PP, PE and PET, coated paper, cast coated paper, and uncoated paperThickness: Substrate Thickness: 3.14 - 12.60 mils (80 to 320 microns)

Printer Details:


Interfaces: Network Connectivity: Gigabit Ethernet

Notes:
