For Work Printers Large Format SureColor F570 Printer
Discontinued

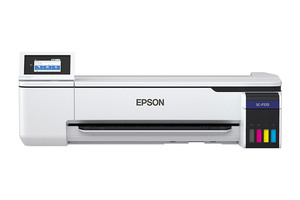

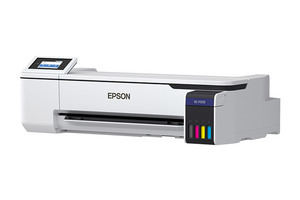

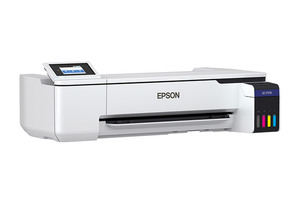

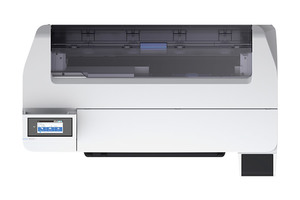

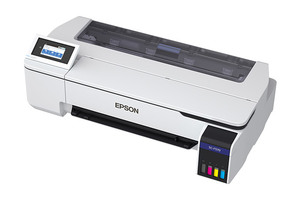

SureColor F570 Dye-Sublimation Printer

The complete, 24" solution for fast, efficient dye-sublimation printing.

Get fast, reliable dye-sub printing right out of the box with the 24" SureColor F570. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows® and Mac®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

SureColor F570 Product Guide

  • Model: SCF570SE
REPLACEMENT PRODUCT :
SureColor F570 Pro Dye-Sublimation Printer
SureColor F570 Pro Dye-Sublimation Printer
Model: View Main Product Page Learn More

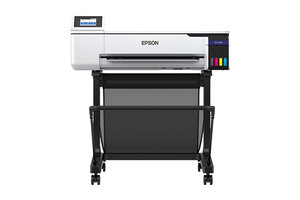

  • Compact, clean design — ultra small2, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
  • Easy printing right out of the box — comes equipped with software optimized for dye-sublimation, including specialized drivers for both Mac and Windows
  • Intuitive operation — large 4.3" LCD color touchscreen simplifies print tasks
  • Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless
Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay Transport Partner4

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • SureColor F570 Printer
  • 2 full sets of Dye-Sublimation Ink (8 140 mL bottles)
  • 3 rolls of DS Transfer Multi-Use paper (1 24" x 100: roll, 2 17" x 100" rolls)
  • Start Here Poster
  • User Guide
  • AC Power Cable

Print:


Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printheadMaximum Print Resolution: 2400 x 1200 dpiMinimum Ink Droplet Size: Variable Droplet Technology can produce up to three different sizes per lineNozzle Configuration: Color and monochrome heads; 800 nozzles x 4 channels

Ink:


Ink Type: Ink Bottles 140mLReplacement Ink:
  • Black Ink Bottle T49M120
  • Cyan Ink Bottle T49M220
  • Magenta Ink Bottle T49M320
  • Yellow Ink Bottle T49M420

General:


Operating Systems: macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8Temperature: Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)Humidity: Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)Sound Level: Operating: Approx 50 dB(A)
Sleep: Approx 32 dB(A)Dimensions: Without Stand: 38.2" x 20.7" x 9.6" (970 x 505 x 230 mm)Weight: Without Stand: 84 lb (38 kg)Eco Features: ENERGY STAR® qualified
RoHS compliant
Recyclable product9
Epson America, Inc. is a SmartWay® Transport Partner10Safety Approvals: UL (MET), FCC (Class A), CSA, CE, EMCCountry of Origin: IndonesiaWarranty: Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday

Printable Area and Accuracy:


Maximum Paper Width: 24.4"Minimum Cut-sheet Size: 8.27 x 11 (1 sheet and ASF)Minimum Paper Width: Roll: 13"/Sheet: 8.27"Maximum Printable Length: Limited by application, OS and driver/RIP used7

Sheet Media Handling:


Sheet Loading: Auto Sheet Feeder, up to 11.7" wideSingle Sheet, Top-loading: Up to 24.4" wideLeft/Right Margins: 3 mm each (0.24" total)

Roll Media Handling:


Single Roll-to-Roll / Top-loading Roll: Up to 24.4" wideMedia Core: 2” User-adjustable roll media adaptersMaximum Roll Diameter: Up to 4.3"Media Thickness: Up to 8.6 milRoll Cutting: High-speed internal rotary cutter; auto or manual6Roll Paper Remaining: The amount of remaining paper can be controlled from the control panel

Printer Details:


Display: 4.3" Touchscreen Printer Language: ESC/P rasterInterfaces: SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct4

Power:


Rated Voltage: AC 110–240 VRated Frequency: 50–60 HzRated Current: 1.4 APower Consumption: Printing: Approx. 22 W
Ready: Approx. 8 W
Sleep: approx. 1.6 W
Power Off (Stand By): 0.2 W

Notes:

1 See epson.com/support for details.

2 Product size excluding stand.

3 For convenient and reasonable recycling options, visit www.epson.com/recycle

4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
