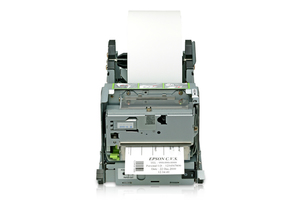

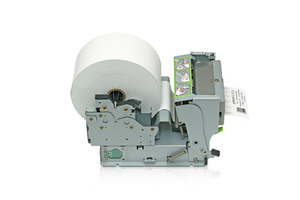

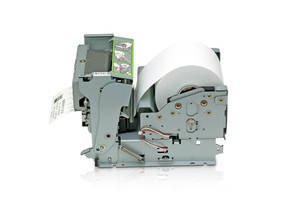

EU-T300 Kiosk Printer Series

The EU-T300 series of kiosk printers provides highly reliable, cost-effective drop-in solutions for basic kiosk printing applications. Featuring a horizontal chassis, they're equipped with the features you need: best-in-class components, front loading of 4" and 6" paper rolls and high-speed printing on a wide variety of paper sizes and thicknesses.

REPLACEMENT PRODUCT :

M-T500II Thermal Printer

Model: View Main Product Page Learn More

Overview

Cost-effective, drop-in solution with Windows®, Linux®, and NT drivers and standard serial, parallel and USB interfaces
Fast printing speeds up to 6 inches per second
Designed to print and cut paper 58 – 82.5mm wide, 56 – 183um thick
Rugged enough for both indoor and outdoor environments
Drop in paper roll with semiautomatic loading function
Modular design for easy maintenance
Wide range of cost-effective service options

Specifications

Print Other:

Printing Technology: Thermal Kiosk PrinterPrint Resolution: 8 dots/mm (203 dpi)Print Speed: 150mm/sec. (5.9 inches/sec.)

General:

Temperature: Operating: 0 – 50° CHumidity: Operating: 10 – 80%Dimensions:

Horizontal (W x D x H)

4" roll: 6.0" x 8.6" x 6.0"
6" roll: 6.0" x 10.3" x 7.8"

Weight: 2.5kg (5.5lbs)Safety Approvals: CSA/TUV/UL/CE

Media Handling:

Width: 80mm (3.1 inches) standard, widths from 58mm – 82.5mm availableThickness: 56 – 183umRoll Diameter: 6 inch diameter (max.)Paper Loading: Tilt front load with removable spindle

Control Board:

Processor: 32-bit 20 MHz Toshiba TMP 94 SeriesFirmware: 4 Mbit flash ROM, host or network upgradeableUser Memory: 192k usable for non-volatile for downloadable logos and special charactersThermal Print Head Control: Historical controlPaper Feed: Semi-automatic loading or paper feed switch, back feed switch feature to allow easy change of paperSoftware:

Epson industry standard ESC/POS®
WIN 95/98/2000/NT 4.0/XP
Linux
Exclusive Windows Status Monitor Program (API)

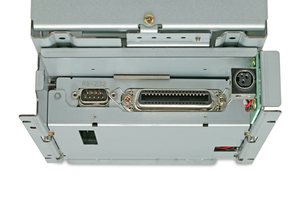

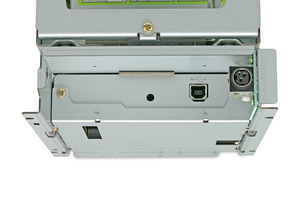

Ports: RS-232 to 38 kbs (DB-9 connector), IEEE 1284 bi-directional parallel (Centronics connector), optional USB interface

POS Details:

Reliability:

Printer: 750,000 receipts
Mechanism (MCBF): 37 million lines
Thermal head: 100km/100 million pulses
Auto cutter: Exceeds 1.0 million cuts

Sensors:

Paper out, black mark, paper low: Photosensor
Platen open, cutter blade position: Micro-switch
Print head temperature: Thermresistor

Options: Board, printer and presenter available without paper supply

Power:

Power Consumption:

Head motor: 24 vdc ±10%, Circuit 5 vdc ±5% (supplied by board)
12 vdc option, print speed control for low power consumption mode

Power Source: 24 vdc (12 vdc option)
