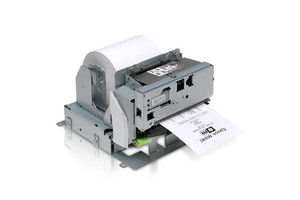

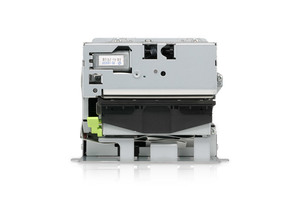

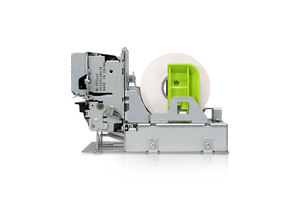

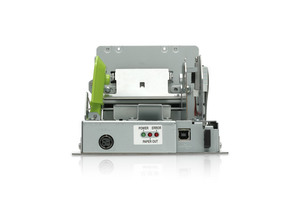

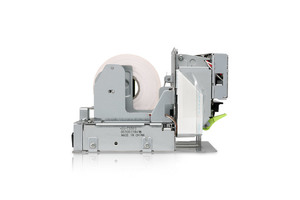

EU-T300C Kiosk Printer Series

The EU-T300C kiosk printer is a smaller, more compact version of the EU-T300 kiosk printer with many of the same high-quality features. Designed for smaller kiosks, it features print speeds up to 6 inches per second, uses the same standard 80mm paper roll as POS printers and supports 2.4mil receipt paper to 7mil ticket stock.

REPLACEMENT PRODUCT :

M-T500II Thermal Printer

Model: View Main Product Page Learn More

Overview

Small, compact size 5"H x 7"D x 5.5"W
Uses standard 80mm POS paper roll
Fast printing speeds up to 6 inches per second
Supports 2.4mil receipt paper to 7mil ticket stock
Easy paper loading with semiautomatic loading function
Modular design for easy maintenance
USB interface
Wide range of cost-effective service options

Specifications

Print Other:

Printing Technology: Thermal Kiosk PrinterPrint Resolution: 8 dots/mm (203 dpi)Print Speed: 150mm/sec. (5.9 inches/sec.)

General:

Temperature: Operating: 0 – 50° CHumidity: Operating: 10 – 80%Dimensions: Dimensions (W x D x H) 5.5" x 7.0" x 5.0"Weight: 2.5kg (5.5lbs)

Media Handling:

Width: 80mm (3.1 inches) standard, widths from 58mm–82.5mm availableThickness: 56–183um (2.4–7mil)Roll Diameter: 83mm (3.3) inch outside diameter, uses standard POS rollPaper Loading: Semi-auto load

Connectivity:

Standard Connectivity: USB interface

Control Board:

Processor: 32-bit 20 MHz Toshiba TMP 94 SeriesFirmware: 4 Mbit flash ROM, host or network upgradeableUser Memory: 192k usable for non-volatile for downloadable logos and special charactersThermal Print Head Control: Historical controlPaper Feed: Semiautomatic loading or manual, back feed is possibleSoftware:

Epson industry standard ESC/POS®
WIN 95/98/2000/NT 4.0/XP
Linux and exclusive Windows Status Monitor Program (API)

POS Details:

Reliability:

Mechanism (MCBF): 37 million lines
Thermal: head 100km/100 million pulses
Autocutter: Exceeds 1.0 million cuts

Sensors:

Paper end, black mark and paper low: photosensor
Platen open, cutter blade position: micro-switch
Print head temperature: thermresistor

Power:

Power Consumption:

Head motor: 24 vdc ±10%, Circuit 5 vdc ± 5% (supplied by board)
Print speed control for low power consumption mode

Power Source: 24 vdc
