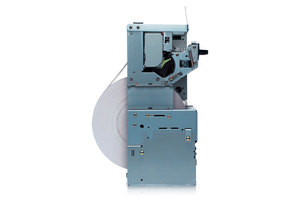

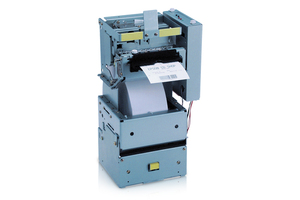

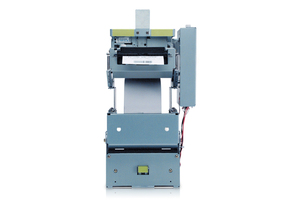

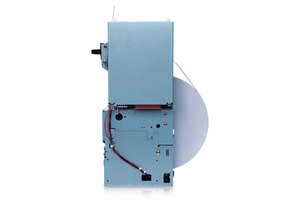

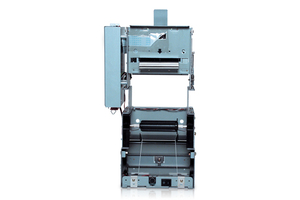

EU-T400 Kiosk Printer Series

The EU-T400 series of kiosk printers are durable, compact and easy to maintain. They come fully equipped with the features you need: best-in-class components, vertical or horizontal chassis, front loading of extra large paper rolls, high-speed printing for text, barcodes, logos and other graphics on a wide variety of paper sizes and thicknesses and a receipt presenter.

REPLACEMENT PRODUCT :

M-T500II Thermal Printer

Model: View Main Product Page Learn More

Overview

Complete drop-in solution with control boards, Windows® drivers, power supply and cables
Fast printing speeds up to 6 inches per second
Designed to print and cut paper 58 – 82.5mm wide, 60 – 183um thick
Rugged enough for both indoor and outdoor environments
Drop in paper roll with semiautomatic loading function
Receipt presenter
Modular design for easy maintenance
Upgradeable firmware and interface options
Wide range of cost-effective service options

Specifications

Print Other:

Printing Technology: Multifunction Thermal Kiosk PrinterPrint Resolution: 8 dots/mm (203 dpi)Print Speed: 150mm/sec. (5.9 inches/sec.)

General:

Temperature: Operating: 0 – 50° CHumidity: Operating: 10 – 80%Dimensions:

Horizontal (W x D x H)
- 6" roll: 6.8" x 15.1" x 9"
- 8" roll: 6.8" x 15.1" x 10"
Vertical:
- 6" roll: 7.7" x 6.5" x 11.8"
- 8" roll: 7.7" x 8.5" x 13.8"

Weight: 3.9kg (8.6lbs)Safety Approvals: CSA/TUV/UL/CE

Media Handling:

Width: 80mm (3.1 inches) standard, widths from 58mm-82.5mm availableThickness:

60-120um (2.4-4.7 mils) with loop
183um (7.2 mils) with no loop in presenter

Roll Diameter: 8 inch diameterPaper Loading:

Vertical: tilt front load with removable spindle
Horizontal: side load with fixed spindle

Control Board:

Processor: 32-bit 20 MHz Toshiba TMP 94 SeriesFirmware: 4 Mbit flash ROM, host or network upgradeableUser Memory: 192k usable for non-volatile for downloadable logos and special charactersThermal Print Head Control: Historical controlPaper Feed: Semiautomatic loading or paper feed switch, back feed switch feature to allow easy change of paperSoftware:

Epson industry standard ESC/POS®
WIN 95/98/2000/NT 4.0/XP
Linux
exclusive Windows Status Monitor Program (API)

Ports: RS-232 to 38 kbs (DB-9 connector), IEEE 1284 bi-directional parallel (Centronics connector),optional USB interface

POS Details:

Reliability:

Printer: 750,000 receipts
Mechanism (MCBF): 37 million lines
Thermal head: 100km/100 million pulses
Autocutter: Exceeds 1.0 million cuts

Sensors:

Paper end, back mark: Photosensor
Platen open, cutter blade position: Micro-switch
Print head temperature: Thermresistor

Options: Board, printer and presenter available without paper supply

Power:

Power Consumption:

Head motor: 24 vdc ±10%, Circuit 5 vdc ±5% (supplied by board)
12 vdc option, print speed control for low power consumption mode

Power Source: 24 vdc (12 vdc option)
