TM-S2000 / TM-T70II Multifunction Teller Device

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

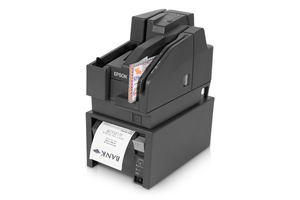

Epson combines the TM-S2000 check scanner with its compact TM-T70II printer to offer a multifunction teller device in an ultra-small footprint. The TM-S2000 features the fastest check scanning in its class, the industry's highest MICR accuracy, cashier's check and endorsement printing and more. And the TM-T70II printer delivers fast, reliable printing and all-front access for ease of use.

  • Ideal for printing and imaging at the teller station
  • Fastest desktop scanning speed up to 200 dpm
  • 100-check document feeder
  • Highest MICR accuracy in its class
  • Up to 16 lines of endorsement printing
  • Cashier's check printing up to 2" print area
  • Two-sided color ID scanning
  • 3-track MSR and 2nd pocket options
  • Compact printer with all front-facing controls
  • Fast receipt printing up to 250mm/sec

Print Other:


Printing Technology:
  • Line inkjet: Line ink, 360 nozzles
  • Thermal: Thermal line printing
Print Resolution: Line inkjet: 180 dpi x 180 dpiPrint Speed: Thermal: Max. 250mm/sec (9.84"/sec)

General:


Dimensions:
  • Printer: 125mm x 194mm x 114 mm (W x D x H) (4.92" x 7.64" X 4.49")
  • Single-pocket scanner: 142mm x 263.8mm x 177mm (W x D x H) (5.59" x 10.39" x 6.97")
  • Two-pocket scanner: 167mm x 298.8mm x 177mm (W x D x H) (6.58" x 11.76" x 6.97")
Weight:
  • Printer: 1.7 kg (3.75 lbs)
  • Scanner: 4.5 kg (9.92 lbs)
Safety Approvals:
  • Safety: UL/CSA/EN/TUV/GOST-R
  • Environmental: WEEE, RoHS compliant
Case Color: Epson Dark Gray

Print Fonts:


Print Fonts:
  • Line inkjet: Font A (default): 12 x 24 / Font B: 9 x 17
  • Thermal: Font A: 12 x 24 dots; Font B: 9 x 17 dots (WxH)
Column Capacity: Thermal: (A, B) 80mm: 42/56Character Size: Thermal:
  • Font A: 1.41 x 3.39 / 1.41 x 6.77 / 2.82 x 3.39 / 2.82 x6.77mm
  • Font B: 0.99 x 2.40 / 0.99 x 4.80 / 1.98 x 2.40 / 1.98 x4.80mm
Character Set: Thermal:
  • 95 Alphanumeric, 18 set International, 128 x 43 Pages
  • Graphic. Barcode: UPC-A, UPC-E, JAN13 (EAN13),JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93,CODE128, GS1-128,GS1 DataBar
  • Two dimensional code: PDF417, QRCode, MaxiCode,2D GS1 DataBar, Composite Symbology
Characters per Inch: Thermal: 20.0 and 15.0 cpi

Scan POS:


Type: CIS (Contact Image Sensor)Throughput: 110, 200 dpm (documents per minute)Speed: Paper feeding up to 800mm/sResolution: 100 dpi, 120 dpi, 200 dpi, 240 dpi interpolated, 300 dpi opticalScan Area: Document: 106mm x 235mmMode: 24-bit color, 8-bit grayscale, bi-tonalData Transmission Format: TIFF, JPEG, JTIFF, BMP (Windows® bitmap), Raster (Raw)Data Compression: CCITT Group 4, JPEGCapacity: Auto-input feeder of 100 items; exit pocket of 100 items; optional 2nd pocket of 50 itemsRated Life: 2 million itemsOCR: E13B, CMC7, OCR-A, OCR-B and 1D BarcodeMICR: E13B and CMC7

Media Handling:


Thickness: Thermal: 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5(W) x 83mm)

Power:


Power Consumption: Printer: Approx. 2.0A (mean)Power Source: PS-180, 24 VDC; there is only one power supply for the scanner and printerPower Supply: Printer: 100 - 240V AC, 50/60 Hz
