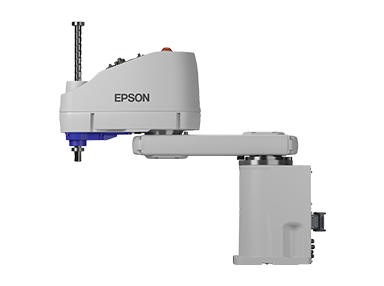

Model: RGX8-A452SSTD Product Home

Epson GX8 SCARA Robots

GX8 Camera Bracket Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX8 SCARA (GX8-A552, GX8-A602, GX8-A652)
N/A
N/A
N/A
N/A
N/A
Solidworks STEP DXF (2D)

GX8-450mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX8-B453S
450
330
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452C
450
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452CB
450
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452CR
450
170
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-452E
450
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452EB
450
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452ER
450
200
ESD
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-452P
450
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452PB (Bottom Cable Exit)
450
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452PR
450
170
Protected
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-452S
450
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452SB
450
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-452SR
450
200
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-453C
450
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-453CB
450
300
Clean
Tabletop
Straight
Solidworks STEP
GX8A-453CR
450
300
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-453E
450
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-453EB (Bottom Cable Exit)
450
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-453P
450
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-453PB (Bottom Cable Exit)
450
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-453PR
450
300
Protected
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-453S
450
330
Standard
Tabeltop
Straight
Solidworks STEP DXF (2D)
GX8A-453SB
450
330
Standard
Tabletop
Straight
Solidworks STEP
GX8A-453SR
450
330
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8B-452C
450
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-452E
450
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-452P
450
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-452S
450
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-453C
450
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-453E
450
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-453P
450
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)

GX8-550mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX8A-552C
550
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-552CB
550
170
Clean
Tabletop
Straight
Solidworks STEP
GX8A-552CR
550
170
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-552E
550
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-552EB (Bottom Cable Exit)
550
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-552ER
550
200
ESD
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-552P
550
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-552PB (Bottom Cable Exit)
550
170
Protected
Tabletop
Solidworks STEP DXF (2D)
GX8A-552PR
550
170
Protected
Ceiling
Solidworks STEP DXF (2D)
GX8A-552S
550
200
Standard
Tabeltop
Straight
Solidworks STEP DXF (2D)
GX8A-552SB
550
200
Standard
Tabletop
Straight
Solidworks STEP
GX8A-552SR
550
200
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-553C
550
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553CB
550
300
Clean
Tabletop
Straight
Solidworks STEP
GX8A-553CR
550
300
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-553E
550
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553EB (Bottom Cable Exit)
550
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553ER
550
330
ESD
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-553P
550
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553PB (Bottom Cable Exit)
550
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553PR
550
300
Protected
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-553S
550
330
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-553SB
550
330
Standard
Tabletop
Straight
Solidworks STEP
GX8A-553SR
550
330
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8B-552C
550
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-552E
550
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-552P
550
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-552S
550
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-553C
550
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-553E
550
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-553P
550
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-553S
550
330
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)

GX8-650mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX8A-652C
650
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652CB
650
170
Clean
Tabletop
Straight
Solidworks STEP
GX8A-652CR
650
170
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-652E
650
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652EB (Bottom Cable Exit)
650
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652ER
650
200
ESD
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-652P
650
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652PB (Bottom Cable Exit)
650
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652PR
650
170
Protected
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-652S
650
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-652SB
650
200
Standard
Tabletop
Straight
Solidworks STEP
GX8A-652SR
650
200
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-653C
650
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-653CB
650
300
Clean
Tabletop
Straight
Solidworks STEP
GX8A-653CR
650
300
Clean
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-653E
650
330
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-653ER
650
330
ESD
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-653P
650
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-653PB
650
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-653PR
650
300
Protected
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8A-653S
650
330
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8A-653SB
650
330
Standard
Tabletop
Straight
Solidworks STEP
GX8A-653SR
650
330
Standard
Ceiling
Straight
Solidworks STEP DXF (2D)
GX8B-652C
650
170
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-652E
650
200
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-652P
650
170
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-652S
650
200
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-653C
650
300
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-653E
650
300
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-653P
650
300
Protected
Tabletop
Straight
Solidworks STEP DXF (2D)
GX8B-653S
650
330
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)

Brochures and Whitepapers

Epson GX8 SCARA Robot Spec Sheet
PDF
Epson Robots Product Specifications Catalog
PDF
Epson Robots Product Specifications Catalog - Spanish
PDF
Epson Robots Product Specifications Catalog - Portuguese
PDF

Manuals

Epson GX series SCARA Robot Manual (Revision 7)
PDF
Epson RC700D Controller Manual (Revision 5)
PDF
Epson Robot System Safety Manual (Revision 4) - Spanish
PDF
Epson Robot System Safety Manual (Revision 4) - (Portuguese)
PDF
Epson Robot System Safety Manual (Revision 7)
PDF

Epson Robotics Technical Support and Training Contacts


Epson Robot Customer Service:

Hours: 6:00 am – 4:30 pm (PT)

Phone: +1 (562) 290-5920

Email Customer Service


Epson Robot Application Support:

Hours: 8:00 am – 5:00 pm (PT)

Phone: +1 (562) 290-5930

Email Application Support


Epson Robot Training Class Registration:

Phone: +1 (562) 290-5930

Email Class Registration
