Unwinder & Rewinder for Epson C3500

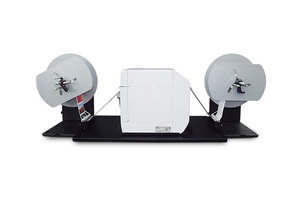

The Roll to Roll system specifically designed for the Epson C3500 color label printer can handle rolls up to 5” (127mm) media wide and having an outside diameter up to 10” (250mm). Units are equipped with adjustable core holder 1.57" (40mm) - 4.64" (118mm).

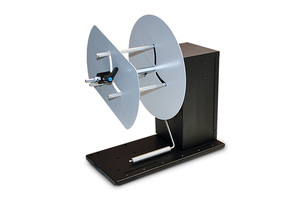

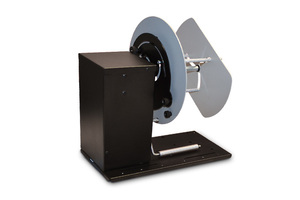

The automatic label unwinder (ASS1111-S0) increases the input roll capacity. The label rewinder (ASD1111-S0) can rewind labels facing in or facing out.

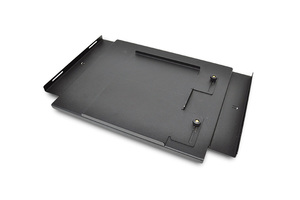

The printer plate (EPS35-JPL) is recommended to guarantee an aligned media path. The printer will be locked over the printer plate.

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction.

Contact Information:
D.P.R. Labeling LLC
Address: 14013 NW 8th Street, Sunrise, FL 33325-6267
Phone: 954.533.3409
Email: info@dpr-llc.com
Website: www.dpr-llc.com

Overview

Specifically designed for the Epson C3500 printer
Increases input roll capacity to support higher production volume
Rewinds roll of printed labels facing in or out
Automatically adjusts rotation and speed to match with printer

Specifications

General:

General:

External power supply 100/240VAC - 2.5A at 24V
Maximum roll diameter: 25cm (10”)
Maximum media width: 127mm (5”)
Adjustable core holder 1.57" (40mm) - 4.64" (118mm)

See Full Specs Hide Full Specs

Print All Specs

Works With

Notes:
