Certified ReNew Projectors for Work EX7230 Pro HD WXGA 3LCD Projector
Discontinued

EX7230 Pro HD WXGA 3LCD Projector

Zoom In
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector
EX7230 Pro HD WXGA 3LCD Projector

Professional-grade HD projector featuring a new level of connectivity.

Present like a pro — display widescreen HD images from your laptop and impress clients with the EX7230 Pro, featuring the latest in connectivity. This professional-grade portable projector is perfect for taking content from your laptop, tablet or smartphone to the big screen. Offering 3x Brighter Colors* than competitive models, Epson® 3LCD projectors ensure bright, vivid images. With 3000 lumens of color brightness and 3000 lumens of white brightness1, the EX7230 Pro delivers larger-than-life presentations nearly anywhere. HDMITM and MHL® connectivity means you can present from MHL-enabled smartphones and tablets, while charging them. So leave your laptop behind, and focus on what’s important — your client.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1280 x 800 (WXGA)
      Color Brightness: 3000 lumens1
      White Brightness: 3000 lumens1
      Throw Distance Calculator
  • Model: V11H654220
Find Accessories Support View Service Plans
REPLACEMENT PRODUCT :
Pro EX7280 3LCD WXGA Projector
Pro EX7280 3LCD WXGA Projector
Model: View Main Product Page Learn More

Specifications Projector:

Projection System: Epson 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 3000 lumens1White Brightness - White Light Output: 3000 lumens1Aspect Ratio: 16:10 native, supports 4:3 and 16:9Resolution: 1280 x 800 (WXGA)Resize: 640 x 480 (VGA), 1024 x 768 (XGA),1152 x 864 (SXGA), 1440 x 900 (WSXGA),1400 x 1050 (SXGA+)Lamp Type: 200 W UHELamp Life:
  • ECO mode: Up to 6000 hours2
  • Normal mode: Up to 5000 hours2
Throw Ratio Range: 1.3 (zoom wide), 1.56 (zoom tele)Size - projected distance: 33" – 320" (0.9 – 9.0 m)Keystone Correction:
  • Automatic: Vertical: ±30 degrees
  • Manual: Horizontal: ±30 degrees
USB Plug 'n Play:
  • Projects audio and video
  • PC and Mac® compatible
Contrast Ratio: Up to 10,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Temperature: 41° to 95° F (5° to 35° C)Weight: 5.29 lb (2.4 kg)Security:
  • Kensington®-style lock provision
  • Password protect function

Projection Lens:

Type: Manual zoom / Manual focusF-number: 1.58 – 1.72Focal Length: 16.9 – 20.28 mmZoom Ratio: 1.0 – 1.2

Projector Details:

Display Performance:
  • NTSC: 480 lines
  • PAL: 576 line
    • (Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:

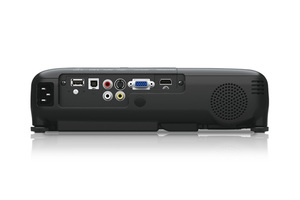

  • HDMI x 1 with MHL connectivity
  • Computer/component video: D-sub 15 pin x 1
  • S-video:mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (White/Red)
  • USB connector Type A x 1: PC-free USB & Other, Wi-Fi, PC-free USB and DC-06 Document Camera
  • USB connector Type B x 1: USB Plug 'n Play
Speaker: 2 W (mono)Fan Noise:
  • ECO mode: 29 dB
  • Normal mode: 37 dB

Projector Dimensions:

Including feet: 11.7" x 9.0" x 3.1" (W x D x H)Excluding feet: 11.7" x 9.0" x 3.0" (W x D x H)

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19 ft (6 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: ±15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption:
  • ECO mode: 207 W
  • Normal mode: 283 W
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
