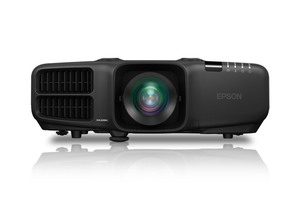

PowerLite Pro G6900WU WUXGA 3LCD Projector with Standard Lens

Large-Venue Projector with Bright, Full HD Performance and HDBase-T plus SDI

Get uncompromising image quality and professional-grade reliability with the PowerLite Pro G6900WU WUXGA large-venue projector with standard lens. Whether you're presenting in a conference room, auditorium, stage or house of worship, this powerful projector will keep your audience captivated. Incredible color brightness and WUXGA resolution means images are brighter, crisper and even more brilliant. Setup is a breeze with flexible, 360-degree installation and diverse connectivity options including HDBaseT. You'll stay in control with remote management functions and easily adapt to the environment with six optional lenses. Edge-blending capabilities enhance the experience with panoramic images and integrated curves and corners. Point and arc correction ensures that rectangular images are never compromised. And for the ultimate presentation, 3D stackable solutions and low-cost glasses take it all to the next level.

Model: V11H514020

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

EB-PU1007W WUXGA 3LCD Laser Projector with 4K Enhancement

Model: View Main Product Page Learn More

Overview

Up to 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro G6900WU has:
Crisp, clear resolution — WUXGA resolution for incredible images
Six optional lenses with lens shift — standard, wide, rear, middle or long-throw for complete flexibility and easy exchange
Versatile connectivity — easily integrate with any system; including HDBaseT
Convenient remote management — remotely monitor and control presentations; includes scheduling function
Built-in edge-blending technology — seamlessly project more than one image at a time

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Epson PowerLite Pro G6900WU Projector
1.8x standard zoom lens
Power cable
Computer cable (VGA)
Projector remote control with batteries
User manual CD
EasyMP® software CD
Quick Setup Sheet

Registration card
Password protection sticker
Lens lock screw

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 6000 lumens¹White Brightness - White Light Output: 6000 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:

Normal mode: Up to 2000 hours²
ECO mode: Up to 4000 hours²

Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.26 – 2.76Size - projected distance: 50" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±30 degrees

Contrast Ratio: 5000: 1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Humidity: Operation 20% - 80%, storage 10% - 90%Dimensions: 50.5 cm x 40.4 cm x 17 cm (width x depth x height) - with support feetWeight: 21.5 lb (with standard lens)Security:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: Manual focus / zoomF-number: 1.65 – 2.55Focal Length: 21.28 mm – 37.94 mmZoom: Manual, Factor: 1, 1.8Zoom Ratio: Optical zoom 1.0 – 1.8Lens Shift:

With standard lens

Vertical: ±67 degrees
Horizontal: ±30 degrees

Connectivity Projector:

Standard Connectivity: HDMI x 1, Display Port x 1, Computer: D-sub 15 pin x 1, Video-1: 5-BNC x 1, Video-2: RCA x 1, Composite video BNC x 1, S-Video x 1, audio input: mini stereo 3x, audio input: RCA (left and right) x 1, Network connection: RJ-45 x 1, 100 Mbps, USB Type-A x 1, Type-B x 1, Serial: RS-232c, hardwire remote jack x 1, monitor output: D-sub 15 pin x 1, HD Base T x 1, HD-SDI x 1

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 576 line

Color Modes: Dynamic, Natural, Photo, Presentation, sRGB, DICOM SIM, individualInput Signal:

NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

Interfaces:

HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video-1: 5-BNC x 1
Video-2: RCA x 1
Composite video: BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L & R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c
Hardwire Remote jack x 1
Monitor-Out: D-sub 15 pin x 1
HD BaseT x 1
HD-SDI x 1

Speaker: 10 WSpecial Features: Direct on/off, Epson Cinema Filter, Frame interpolation, Freeze image, Instant on/off, Mute toggle, Network administration, Network Image Transmission, Quick Corner, split screen feature, Super resolutionFan Noise:

Normal mode: 39 dB
ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet and lens: 19.88" x 15.04" x 5.67" (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to -45 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACRated Voltage: AC 110 V - 240 V, 50 Hz - 60 HzPower Consumption:

Normal mode: 568 W
ECO mode: 421 W
Communication on: 3.3 W standby
Communication off: 0.41 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
3-Year Next Business Day Whole Exchange - Extended Service Plan

SKU:

EPPEXPB3

Price:

$389.00

Added to Your Shopping Cart
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPB2

Price:

$279.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPB1

Price:

$199.00

Added to Your Shopping Cart

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec. 2015 through Nov. 2016.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►
