Certified ReNew Projectors for Work PowerLite Pro Z8255NL XGA 3LCD Projector - Certified ReNew
Discontinued

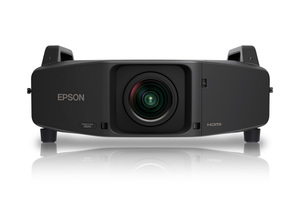

PowerLite Pro Z8255NL XGA 3LCD Projector - Certified ReNew

Zoom In
PowerLite Pro Z8255NL XGA 3LCD Projector - Certified ReNew
PowerLite Pro Z8255NL XGA 3LCD Projector - Certified ReNew

Ultra-bright Performance in Virtually Any Venue.

A powerful performer that's easy to install, manage and maintain, the PowerLite Pro Z8255NL multimedia projector offers brilliant image quality for captivating presentations in virtually any venue, even those with ambient light. Featuring XGA resolution, innovative 3LCD technology and a contrast ratio up to 5000:1, the Z8255NL delivers brilliant images in lecture halls, conference centers and entertainment venues. Setup and installation are easy with 360-degree projection, edge blending and more. Offering diverse connectivity and a full suite of monitor and control features, this high brightness projector ensures easy integration with complex devices, plus a low overall cost of ownership. With its sleek black casing, it's ideal for staging and rental applications. Choose from a variety of optional lenses to meet most any need.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 10,000 lumens of color brightness1 and 10,000 lumens of white brightness1, the Pro Z8255NL projector uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Read more about the new PowerLite Pro Z Series.

Note: Epson does not accept returns on Clearance Center items, unless the product arrives defective, in which case, a replacement with the same model or equivalent will be sent.

    • Projection System: High-aperture EPSON 3-chip 3LCD technology
      Native Resolution: XGA (1024 x 768)
      Color Brightness: 10,000 lumens1
      White Brightness: 10,000 lumens1
      Throw Distance Calculator
  • Model: V11H458820-N
Find Accessories Support View Service Plans
Bright and Colorful
Features up to 10000 lumens of color brightness (color light output)1 and 10000 lumens of white brightness (white light output)1.
XGA Resolution
1024 x 768 resolution
Edge Blending
Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs – providing dynamic, seamless projection.
Split Screen
Display content from two inputs simultaneously, side by side, on a single screen.
DICOM
DICOM mode gives superb and accurate tonal reproduction, allowing for improved medical imagery such as X-rays.
Monitor and Control
Configure and operate projectors remotely over the network; see projector-status alerts for lamps, temperature and filters.
  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro Z8255NL has:
      Color Brightness: 10,000 lumens1
      White Brightness: 10,000 lumens1
  • True-to-life color — XGA resolution and 3LCD, 3-chip technology
  • Core technology for added reliability — durable LCDchips; innovative cooling system and filter design
  • Digital connectivity — HDMI with HDCP compliancy and high-grade video processing
  • Exceptional color fidelity — broad color reproduction covers the DCI color gamut space for viewing movies as film producers intended
  • Greater detail with blacker blacks — C2Finetechnology, up to 5000:1 contrast ratio
  • Advanced video quality — Super-resolution technology
  • Easier installation — 360-degree projection and centered lens design make it easy to install the projector in any setting; thumb screws mean there's no need for expensive tools or equipment
  • Powered lens — motorized zoom, focus, and lens shift,controllable through the remote, RS-232 or IP
  • Wide lens shift capabilities and arc correction — vertical positioning of ±56%; up to ±6% horizontal; ability to adjust each side of an image in an arch or barrel-shaped way
  • Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously2
  • Edge blending — multi-screen projection, resulting in a seamless panoramic image
  • Perfect for auditoriums and lecture hall venues — six optional lenses including wide-, rear- and long-throw lenses designed with a ch ange-out lever for easy installation
  • Direct On and Direct Off — allows a projector to be powered on / off by use of a wall switch
  • Protect your investment — recommended 10,000-hour filter cleaning schedule3; easy, side-access filter
  • Easy monitor and control capabilities — included Epson Monitor software allows for remote monitor and control of Epson networked projectors
  • Value-added features — Quick Corner® for independent image corner control; built-in closed captioning decoder; cable interface cover
  • Dual lamps with long lamp life — up to 3500-hour lamp life in ECO Mode, up to 2500 hours in Normal Mode4


IMPORTANT INFORMATION ABOUT USAGE ENVIRONMENTS ►

What's in the box:

  • Epson PowerLite Pro Z8255NL Projector

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 pixels x 3LCDsColor Brightness - Color Light Output: 10,000 lumens1White Brightness - White Light Output: 10,000 lumens1Aspect Ratio: Native 4:3 (supports 16:10, 16:9, 5:4)Resolution: XGA (1024 x 768)Lamp Type:
  • ECO mode: Up to 3500 hours2
  • Normal mode: Up to 2500 hours2
Lamp Life: 340 W x 2 UHEBrightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.63 – 2.65 (Standard lens)Size - projected distance: 60" – 500"Keystone Correction:
  • Vertical: -30 degrees to +30 degrees
  • Horizontal: -20 degrees to +20 degrees
Contrast Ratio: Normal, Dynamic Mode: Up to 5000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Temperature:
  • Normal: 32° to 122° F (0° to 50° C)
  • Above 4900 feet: 32° to 104° F (0° to 40° C)
Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap

Projection Lens:

Type: Powered zoom / focusF-number: 1.65 – 2.51 (Standard lens)Focal Length: 36 mm – 57.35 mm (Standard lens)Zoom Ratio: Optical zoom 1.0 – 1.61 (Standard lens)Lens Shift:
    Powered
  • Vertical: ±56%
  • Horizontal: ±6%

Video:

Video Processing:
  • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
  • DVI: None
Video Standards:
  • 3D Y/C separation, 3D noise reduction, Mosquito noise reduction
  • DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
  • Super Resolution
  • Closed Captioning

Connectivity Projector:

Standard Connectivity:
  • Wired: Integrated 10/100Mbps
  • Wireless: Optional — 802.11b/g/n
  • Wireless Security: WEP, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Remote Control and Management:
  • Epson EasyMP Monitor
  • AMX Duet and Device Discovery
  • Crestron Integrated Partner and RoomView
  • Extron IP Link
  • PJLink

Projector Details:

Interfaces:
  • HDMI x 2
  • Computer: D-sub 15 pin x 1
  • Video: BNC x 5
  • Composite Video: BNC x 1
  • S-Video: Mini DIN x 1
  • Wired Network: RJ-45 x 1
  • Wireless Network: Optional
  • Serial: Rs-232c x 1
  • Hardwired Remote Jack x 1
  • Monitor-Out: D-sub 15 pin x 1
  • USB Type-A: For wireless only
  • USB Type-B: For service only
Speaker: NoneFan Noise:
  • ECO mode: 35 dB
  • Normal mode: 40 dB
Audio Output: None

Projector Dimensions:

Weight - with standard lens: 48.4 lb (with standard lens)Excluding feet - with standard lens: 21.0" x 28.9" x 8.9" (W x D x H)Including feet - with standard lens: 21.0" x 28.9" x 8.0" (W x D x H)

Remote Control:

Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screenOperating Distance: 49 feetOperating Angle:
    Front
  • Right / Left: ±60 degrees
  • Upper / Lower: -45 to +15 degrees
    • Rear
  • Right / Left: ±30 degrees
  • Upper / Lower: -45 to +15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • ECO operation: 830 W
  • Normal operation: 1050 W
  • Network on: 15 W standby
  • Network off: 0.5 W standby
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 The Split Screen feature can only use one digital input source at a time. The other source must be an analog source (PC/Component or Composite video). However, two different analog input sources can be used at the same time.

3 Recommendation based on normal room conditions. Cleaning requirements may vary depending on use, environment and other conditions. Cleaning intervals may be adjusted to accommodate the environment in which the projector is used.

4 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
The Split Screen feature can only use one digital input source at a time. The other source must be an analog source (PC / Component or Composite video). However, two different analog input sources can be used at the same time.

Epson projectors have 3x Brighter Colors than their leading competitive 1-chip DLP business and education projectors. Competitive projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
