Certified ReNew Projectors for Work VS345 WXGA 3LCD Projector
Discontinued

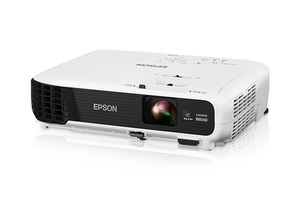

VS345 WXGA 3LCD Projector

Zoom In
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector
VS345 WXGA 3LCD Projector

The affordable widescreen portable projector for HD-quality images.

The affordable VS345 portable projector includes essential business features and enhanced resolution for HD-quality presentations and video. Featuring a compact design and easy setup, this reliable, widescreen performer gets up and running quickly. Offering 3x Higher Color Brightness* and up to 3x Wider Color Gamut†, Epson® 3LCD projectors display colors far more accurately than competitive DLP projectors. The VS345 delivers WXGA resolution (1280 x 800), plus 3000 lumens of color brightness and 3000 lumens of white brightness1. And, it supports HDMI®, the standard in digital connectivity, for compatibility with laptops and media players. Easily present, wherever business takes you, with the flexible VS345.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 3000 lumens of color brightness1 and 3000 lumens of white brightness1, the VS345 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1280 x 800 (WXGA)
      Color Brightness: 3000 lumens1
      White Brightness: 3000 lumens1
      Throw Distance Calculator
  • Model: V11H718220
Find Accessories Support View Service Plans
Bright and Colorful
Features 3000 lumens of color brightness (IDMS Rated) and 3000 lumens of white brightness (ISO Rated)1.
WXGA Resolution
1280 x 800 HD widescreen resolution
Manual Keystone Correction
Adjusts vertically and horizontally to easily achieve a perfect rectangular image.
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable
Quick, Convenient Controls
Includes Instant Off®, Direct Power On/Off and Sleep Mode (A/V Mute)
  • Far more accurate color with Epson — 3LCD, 3-chip technology for 3x Higher Color Brightness* and up to 3x Wider Color Gamut† than competitive DLP projectors
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The VS345 has:
      Color Brightness (for more accurate, vivid color): 3000 lumens1
      White Brightness (for well-lit rooms): 3000 lumens1
  • WXGA resolution (1280 x 800) — 2x more resolution than SVGA for projecting HD-quality presentations and video; perfect for widescreen laptops
  • Fast, easy setup, only from Epson — get up and running in no time with easy image adjustments and convenient control
  • Compatible with the latest laptops and media players — supports HDMI, the standard in connectivity, for digital video and audio with just one cable

Eco Features

  • RoHS compliant
  • Recyclable product2
  • Epson America, Inc. is a SmartWay™ Transport Partner3

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson VS345 Multimedia Projector
  • Power cord
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • Projector software CD
  • Quick Setup Sheet

Specifications Projector:

Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 1,024,000 (1280 x 800) x 3Color Brightness - Color Light Output: 3000 lumens1White Brightness - White Light Output: 3000 lumens1Aspect Ratio: 16:10Resolution: 1280 x 800 (WXGA)Resize: 800 x 600 (SVGA), 1024 x 768 (XGA),1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+)Lamp Type: 200 W UHELamp Life:
  • ECO Mode: Up to 10000 hours2
  • Normal Mode: Up to 5000 hours2
Throw Ratio Range: 1.30 (Zoom:Wide), 1.56 (Zoom:Tele)Size - projected distance: 33" – 320" (0.9 – 9.0 m)Keystone Correction:
  • Automatic: Vertical: ±30 degrees
  • Horizontal: Easy-slide, Image Correction
USB Plug 'n Play: Projects audio and video, PC and Mac® compatibleContrast Ratio: Up to 15,000:1Color Reproduction: Up to 1.07 billion colors

General:

Temperature: 41° to 95° F (5° to 35° C)Weight: 5.29 lbSecurity:
  • Kensington®-style lock provision
  • Security anchor bar

Projection Lens:

Type: Manual (optical) zoomF-number: 1.58 – 1.72Focal Length: 16.9 mm – 20.28 mmZoom Ratio: Optical zoom 1.0 – 1.2

Projector Details:

Display Performance:
  • NTSC: 480 lines
  • PAL: 560 lines
    • (depends on observation of the multi-burst pattern)

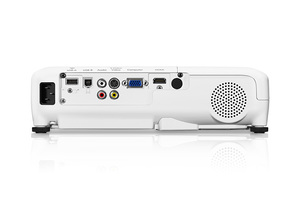

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • HDMI x 1
  • Computer / Component video: D-sub 15 pin x 1
  • S-video: Mini DIN x 1
  • Composite video: RCA x 1
  • USB connector: Type A x 1 (PC-free and other)
  • USB connector: Type B x 1 (USB Plug 'n Play)
Speaker: 1 W (Mono)Fan Noise:
  • ECO mode: 29 dB
  • Normal mode: 37 dB

Projector Dimensions:

Including feet: 11.7" x 9.2" x 3.2" (W x D x H)Excluding feet: 11.7" x 9.2" x 3.0" (W x D x H)

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V Mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19.7 ft. (5.8 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: ±15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption:
  • ECO mode: 214 W
  • Normal mode: 291 W
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

† Gamut volume of leading Epson business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014. Volume is measured in 3D in the CIE L*a*b* coordinate space.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 For convenient and reasonable recycling options, visit www.epson.com/recycle

3SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
