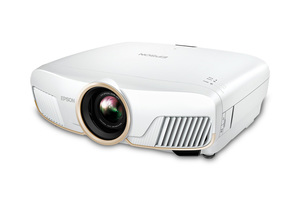

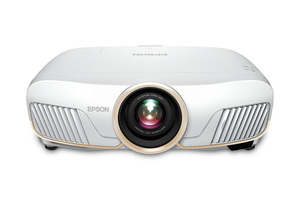

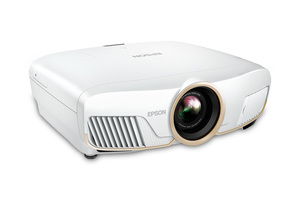

Home Cinema 5050UBe 4K PRO-UHD^®1 3-Chip HDR² Projector

The ultimate 4K experience for the DIY home theater.

The Epson^® Home Cinema 5050UBe 4K PRO-UHD¹ projector delivers an amazing 4K home theater experience for the DIY enthusiast. Capable of displaying an astonishing 2,600 lumens for both color and white brightness³ – along with proprietary processors for resolution enhancement, color and image processing – the Home Cinema 5050UBe produces incredible brightness, color accuracy and image detail to faithfully display all your favorite content the way it was meant to be seen. If you’re looking for an amazing 4K projection experience to power your new home theater build – this could be it. Now that’s Projection Perfected.

Model: V11H931020

Find Accessories Support View Service Plans

Overview

Epson UltraBlack^™ Technology — Epson created a Proprietary Compensation Filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,000,000:1
Precision HDR Adjustment — Real-time HDR curve adjustment allowing for 16-steps of control to fine-tune the HDR performance – regardless of the content being displayed
Extreme Color Gamut — One of the first commercially available home theater projectors capable of displaying the full three-dimensional DCI-P3⁴ color space. This extreme color performance is 50% wider than typical 1-Chip Rec. 709⁵ projectors and allows for a truly professional-level of color accuracy
Epson Precision Lens Technology — Designed for zero light leakage, all Epson Precision Lenses utilize a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity

Eco Features

RoHS compliant
Recyclable product⁶
Epson America, Inc. is a SmartWay™ Transport Partner⁷

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Home Cinema 5050UBe Projector
Power cord
Two HDMI cable clamps
Remote control with (2) AA batteries
Quick Setup Guide

Specifications

Specifications Projector:

Projection System: Epson 3LCD, 3-chip optical engineProjection Method: Front / Rear / Ceiling mountDriving Method: Poly-silicon TFT Active Matrix, 0.74"-wide panelColor Brightness - Color Light Output: 2600 lumens²White Brightness - White Light Output: 2600 lumens²Aspect Ratio: 16:9 widescreen (4:3 resize,16:10 resize)
Compatible with 4:3 with Normal, Full or Zoom ModesResolution: 4K Enhancement¹ (1920 x 1080 x 2)Maximum Resolution: 4096 x 2160Supported Resolution: 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/iLamp Type: 250 W UHELamp Life: Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)⁸Size - projected distance: 50" – 300" (Zoom: Wide and Zoom: Tele)Keystone Correction: Vertical: ±30 degrees (Manual)Contrast Ratio: Up to 1,000,000:1, Auto Iris onWhite Balance: 8-point adjustmentColor Processing: Full 10-bit (partial 12-bit)Color Reproduction: Full-color (up to 1.07 billion colors)

General:

Operating Temperature: 41 ° to 95 °F (5 ° to 35 °C)Weight: 25.1 lbSecurity: Kensington Security Lock Port

Projection Lens:

Type: Powered focus/optical zoom/lens positionF-number: 2.0 – 3.0Focal Length: 22.5 mm – 46.7 mmZoom Ratio: 1.0 – 2.1Throw Ratio Range: 1.35 – 2.84Lens Shift:

Vertical: ±96.3(H center, powered)
Horizontal: ±47.1(V center, powered)

Lens Cover: Powered, Slide Lens Shutter

Other Home Projector:

Cinema Filter: Automatically adjusts to color mode;
(On: Cinema, Digital Cinema
Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema)Auto Iris: Automatically adjusts to video source;

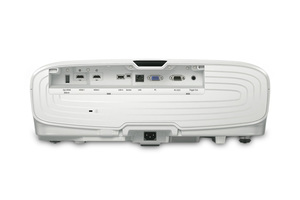

Off/On: High-speed or Normal, 2D and 3D modeSuper Resolution: 2D and 3DFrame Interpolation: 1080p @24 HzTerminal Inputs:

2x HDMI (HDCP 2.2)
1x USB Type A (for optical HDMI cable 300 mA max. power supply only)
1x USB (for wireless and firmware)
1x Mini USB (service only)
1x LAN (RJ45)
1x Computer/D-sub 15 pin
1x RS-232c
Trigger out 12 V DC, 200 mA maximum

Computer Compatibility: PC, Mac®

Parental Controls:

Power Button Lock: Hinders projector from being turned on without parental supervision

Projector Details:

Display Performance: 4K/UHD @ 60 Hz compatible, HDR10³, 3-dimensional DCI-P3 color Gamut⁴, 4Ke¹, 1080p; HD, 2D, 3DColor Modes:

2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
3D: Dynamic, Cinema

Input Signal:

Composite: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K
HDMI: TMDS

Fan Noise: 20 dB – 31 dB

Projector Dimensions:

Including feet: 20.5" x 17.7" x 7.6" (W x D x H)

Remote Control:

Features: Front and rear directionalOperating Distance: 32 feet (10 meters)Operating Angle:
Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees
Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees

Power:

Power Consumption: ECO Mode: 283 W; Normal Mode: 373 W

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
1-Year Replacement/Repair - Extended Service Plan

SKU:

EPPSNVHTRH1

Price:

$315.95

Added to Your Shopping Cart

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.

² HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility.

³ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

⁴ Entire DCI-P3 color space can be displayed in Digital Cinema Mode only.

⁵ Entire Rec.709 color space can be displayed in Digital Cinema Mode only.

⁶ For convenient and reasonable recycling options, visit www.epson.com/recycle.

⁷ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

⁸ Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Products features and specifications are subject to change.

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

Home Cinema 5050UBe 4K PRO-UHD®1 3-Chip HDR2 Projector
