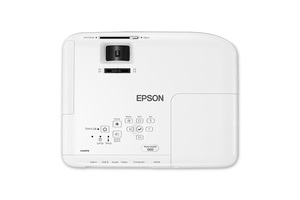

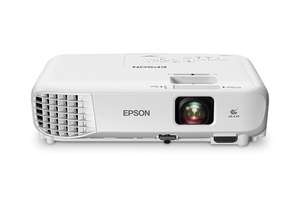

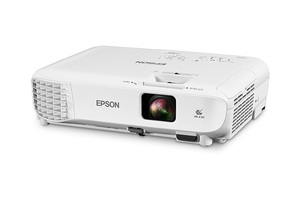

Home Cinema 660 3LCD Projector

Portable, bright home theater projector for big-screen fun made easy.

Enjoying big-screen entertainment is easier than ever with the Home Cinema 660 portable projector. Get life-sized images up to 300" — up to 25x larger than a 60" flat panel — for on-demand TV, outdoor movies or multiplayer videogames. It’s simple with all-digital HDMI® connectivity. Featuring 3,300 lumens of color/white brightness¹, this projector shines bright. Plus, Epson® 3LCD projectors deliver remarkable color accuracy, with High Color Brightness² and wide Color Gamut3 — and no rainbow effect. The Home Cinema 660 also offers a built-in speaker and simple image adjustments for hassle-free fun.

Model: V11H847020

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

Home Cinema 880 3LCD 1080p Projector

Model: View Main Product Page Learn More

Overview

Images up to 300" — life-sized images up to 25x larger than a 60" flat panel, on virtually any blank wall or screen
Bright — ideal for a variety of lighting conditions, the projector has 3,300 lumens of equal color and white brightness¹
All-digital HDMI connectivity — connect your cable/satellite box, Blu-ray Disc® player, gaming console or streaming device
Remarkable color accuracy — High Color Brightness² and wide Color Gamut³ with Epson
Innovative 3LCD technology — amazing action scenes with no rainbow effect
Built-in speaker — for even better sound, add your own home theater sound system
Easy-Slide horizontal image correction — place the projector virtually anywhere
Instant Off® — quickly power down the projector, pack up and go; no warm up or cool-down time is needed
Portable design — lightweight and easy to carry
Outstanding support — two-year limited warranty and toll-free support

Eco Features

RoHS compliant
Recyclable product⁴
Epson America, Inc. is a SmartWay™ Transport Partner⁵

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

PowerLite Home Cinema 660 Projector
Power cable
Projector remote control
Batteries
Quick Setup Sheet

Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 480,000 dots (800 x 600) x 3Color Brightness - Color Light Output: 3300 lumens¹White Brightness - White Light Output: 3300 lumens¹Aspect Ratio: 4:3Resolution: 800 x 600 (SVGA)Resize: 16:9, 16:10Lamp Type: 210 W UHELamp Life:

ECO mode: Up to 10000 hours⁶
Normal mode: Up to 6000 hours⁶

Throw Ratio Range: 1.45 – 1.96Size - projected distance: 30" – 350" (0.88 – 10.44m)Keystone Correction:

Manual

Horizontal: ±30 degrees

Automatic

Vertical: ±30 degrees

Contrast Ratio: Up to 15,000:1Color Reproduction: Up to 1.07 billion colors

General:

Weight: 5.3 lbSecurity:

Kensington®-style lock provision
Password protect function

Projection Lens:

Type: Digital zoom/Manual focusF-number: 1.44Focal Length: 16.7 mmZoom Ratio: Digital zoom 1.0 – 1.35

Projector Details:

Display Performance:

NTSC: 480 lines
PAL: 560 line

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:

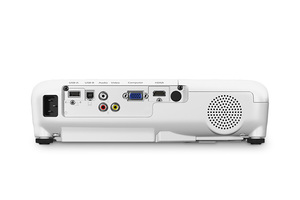

1 x HDMI port
Computer: 1x D-sub 15 pin (VGA)
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
1x USB connector Type A: PC-free USB and other
1x USB connector Type B: USB Plug ‘n Play

Speaker: 2 W (Mono)Fan Noise:

ECO mode: 28 dB
Normal mode: 37 dB

Projector Dimensions:

Including feet: 11.9" x 9.3" x 3.2" (W x D x H)Excluding feet: 11.9" x 9.2" x 3.0" (W x D x H)

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19.0 ft (6.0 m)Operating Angle:

Right / left: ±30 degrees
Upper / lower: ±15 degrees

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

³ Gamut volume in brightest mode, measured by a third-party lab in 3D in the CIE L*a*b* coordinate space.

⁴ For convenient and reasonable recycling options, visit www.epson.com/recycle

⁵ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

⁶ Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
