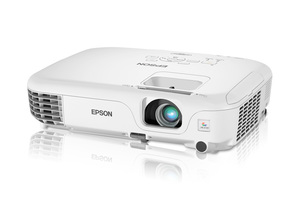

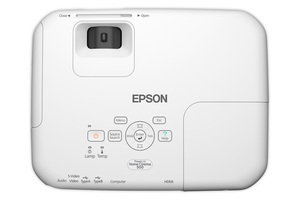

PowerLite Home Cinema 500 3LCD Projector - Silver Edition

Cinematic Adventures Made Easy.

The Epson Silver Edition home theater projector offers amazing home entertainment from a versatile, yet simple performer. Delivering 2600 lumens of color brightness (color light output)¹ and 2600 lumens of white brightness (white light output)¹, using Epson's 3LCD, 3-chip technology, it projects brilliant images with true-to-life color. It's the perfect way to turn your garage into a man cave, host exciting backyard movie nights, or enjoy the big game. All you need is a blank wall. And, setup is a breeze with built-in image adjustment tools. Plus, the Silver Edition home theater projector includes HDMI connectivity for all of your entertainment devices, including your Blu-ray® player, game console, streaming box, and more. The smart choice for incredible at-home entertainment, the Silver Edition home theater projector is always ready to perform.

Up to 3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have up to 3x Brighter Colors than leading competitive projectors.* Delivering 2600 lumens of color brightness¹ and 2600 lumens of white brightness¹, the PowerLite Home Cinema 500 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H584220

Find Accessories Support

Overview

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 480,000 dots (800 x 600) x 3Color Brightness - Color Light Output: 2600 lumens¹White Brightness - White Light Output: 2600 lumens¹Aspect Ratio: Supports 16:9 (4.3 native)Resolution: 800 x 600 (SVGA)Resize: 640 x 480 (VGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+)Lamp Type: E-TORL™ 200 W UHELamp Life:

ECO mode: Up to 5000 hours²
Normal mode: Up to 4000 hours²

Throw Ratio Range: 1.45 – 1.96Size - projected distance:

30" – 350" (0.88 – 10.44m) (zoom: wide)
23" – 260" (0.88 – 10.44m) (zoom: tele)

Keystone Correction:

Manual

Horizontal: ±30 degrees

Automatic

Vertical: ±30 degrees

Contrast Ratio: Up to 3000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Weight: 5.1 lbSecurity:

Kensington®-style lock provision
Password protect function

Projection Lens:

Type: Manual focusF-number: 1.44Focal Length: 16.7 mmZoom Ratio: Digital zoom 1.0 – 1.35

Projector Details:

Display Performance:

NTSC: 480 lines
PAL: 560 line

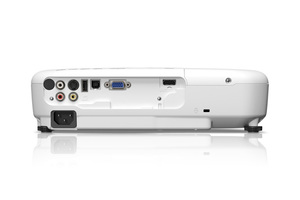

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:

HDMI port
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
Computer/component video: D-sub 15 pin x 1
USB connector: Type A x 1 (PC free and other)
USB connector: Type B x 1 (USB Plug ‘n Play)

Speaker: 2 W (Mono)Fan Noise:

ECO mode: 29 dB
Normal mode: 37 dB

Projector Dimensions:

Including feet: 11.6" x 9.0" x 3.1" (W x D x H)Excluding feet: 11.6" x 9.0" x 3.0" (W x D x H)

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19.6 ft (6.0 m)Operating Angle:

Right / left: ±30 degrees
Upper / lower: ±15 degrees

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD projectors in the home entertainment segment (720p and 1080p) compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson Home Entertainment projectors have up to 3x Brighter Colors than their leading competitive 1-chip DLP projectors (720p and 1080p). Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014.
