Home For Home Projectors Home Cinema PowerLite Home Cinema 600 3LCD Projector
DISCONTINUED

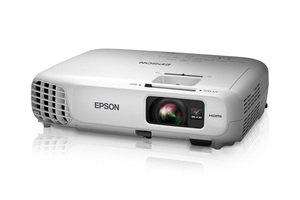

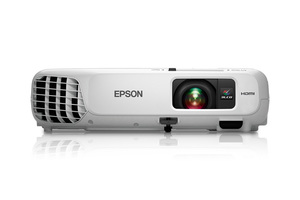

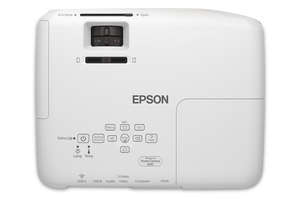

PowerLite Home Cinema 600 3LCD Projector

The home theater projector for big-screen entertainment made easy.

Discover how easy home theater can be with the Home Cinema 600 projector. Enjoy big-screen entertainment for the whole family, from movie nights to outdoor matinees — even life-size videogames. Delivering up to 3x Brighter Colors* than competitive models, Epson® 3LCD projectors ensure vibrant images. Featuring 3000 lumens of color brightness and 3000 lumens of white brightness1, this projector shines bright. Choose from four color modes, including Game Mode for displaying videogames in well-lit rooms. Plus, all-digital HDMI™ connectivity, a built-in speaker and intuitive image adjustments mean it's simple to set up and instantly share content from laptops, Blu-ray Disc® players and game consoles.


Up to 3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have up to 3x Brighter Colors than leading competitive projectors.* Delivering 3000 lumens of color brightness1 and 3000 lumens of white brightness1, the PowerLite Home Cinema 600 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: SVGA (800 x 600)
      Color Brightness: 3000 lumens1
      White Brightness: 3000 lumens1
  • Model: V11H617320
REPLACEMENT PRODUCT :
Home Cinema 660 3LCD Projector
Home Cinema 660 3LCD Projector
Model: View Main Product Page Learn More

Specifications Projector:


Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 480,000 dots (800 x 600) x 3Color Brightness - Color Light Output: 3000 lumens1White Brightness - White Light Output: 3000 lumens1Aspect Ratio: 4.3Resolution: 800 x 600 (SVGA)Resize: 640 x 480 (VGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+)Lamp Type: 200 W UHELamp Life:
  • ECO mode: Up to 6000 hours2
  • Normal mode: Up to 5000 hours2
Throw Ratio Range: 1.45 – 1.96Size - projected distance: 30" – 300" (0.88 – 10.44m)Keystone Correction:
    Manual
  • Horizontal: ±30 degrees
  • Automatic
  • Vertical: ±30 degrees
Contrast Ratio: Up to 10,000:1Color Reproduction: Up to 1.07 billion colors

General:


Weight: 5.29bSecurity:
  • Kensington®-style lock provision
  • Password protect function

Projection Lens:


Type: Digital zoom/Manual focusF-number: 1.44Focal Length: 16.7 mmZoom Ratio: Digital zoom 1.0 – 1.35

Projector Details:


Display Performance:
  • NTSC: 480 lines
  • PAL: 560 line
  • (Depends on observation of the multi-burst pattern)

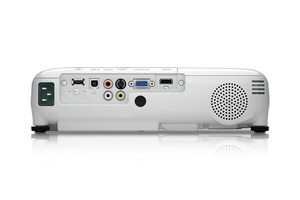

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • HDMI port
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (White/Red)
  • Computer/component video: D-sub 15 pin x 1
  • USB connector: Type A x 1 (PC free and other)
  • USB connector: Type B x 1 (USB Plug ‘n Play)
Speaker: 2 W (Mono)Fan Noise:
  • ECO mode: 29 dB
  • Normal mode: 37 dB

Projector Dimensions:


Including feet: 11.6" x 9.0" x 3.1" (W x D x H)Excluding feet: 11.6" x 9.0" x 3.0" (W x D x H)

Remote Control:


Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19.0 ft (6.0 m)Operating Angle:
  • Right / left: ±30 degrees
  • Upper / lower: ±15 degrees

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD projectors in the home entertainment segment (720p and 1080p) compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 For convenient and reasonable recycling options, visit www.epson.com/recycle

3 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson Home Entertainment projectors have up to 3x Brighter Colors than their leading competitive 1-chip DLP projectors (720p and 1080p). Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014.
