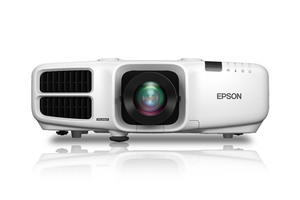

PowerLite Pro Cinema G6550WU WUXGA 3LCD Projector Kit
PowerLite Pro Cinema G6550WU WUXGA 3LCD Projector Kit

Amazing brightness and connectivity from a projector built for bright, open spaces.

The Pro Cinema G6550WU home theater projector is the perfect choice for premium home entertainment in large, open spaces with ambient light. Offering high Color Brightness*, Epson® 3LCD projectors ensure sharp, vivid images. The Pro Cinema G6550WU supports Full HD 1080p and features advanced video processing for the ideal home cinema experience. This versatile performer can even project content from two HD connections, side by side, with the Split Screen2 function. A centered lens and locking lens shift make setup easy. And, installers can monitor the projector's status remotely to change internal settings or issue email reminders regarding maintenance.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 5200 lumens of color brightness1 and 5200 lumens of white brightness1, the PowerLite Pro G6550WU uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: High-aperture Epson 3-chip 3LCD technology
      Native Resolution: Supports Full HD 1080p, Native 1920 x 1200 (WUXGA)
      Color Brightness: 5200 lumens1
      White Brightness: 5200 lumens1
  • Model: V11H513020MB
PowerLite Pro Cinema G6550WU WUXGA 3LCD Projector Kit is rated 4.2 out of 5 by 6.
  • y_2021, m_10, d_20, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_6
  • loc_en_US, sid_V11H513020MB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_epson
Bright and Colorful
Features 5200 lumens of color brightness (color light output)1 and 5200 lumens of white brightness (white light output)1.
1080p Resolution

1080p Full HD widescreen resolution. Display Full HD content, for seamless picture quality and crisp, clear detail.
Split Screen
Display content from two inputs simultaneously, side by side, on a single screen.
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable
Four-Year Warranty
Extends the limited warranty to 4 years
Lens Shift
Equipped with horizontal and vertical lens shift
  • High Color Brightness and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro Cinema G6550WU has:
      Color Brightness: 5200 lumens1
      White Brightness: 5200 lumens1
  • Advanced video processing — sharp HD images for videos, sporting events and more; features Faroudja DCDi® Cinema technology
  • The ideal home cinema experience — enjoy engaging entertainment, right at home
  • High-definition image quality — supports Full HD 1080p
  • Flexible installation and setup — centered lens design with vertical and horizontal lens shift with lens shift lock
  • Remotely monitor projector status — EasyMP® for remote dealer monitoring with shared password
  • Watch two HD connections at once — convenient Split Screen feature2
  • Epson Warranty — Four-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Carton 1 of 2:

  • Epson PowerLite Pro G6550WU Projector
  • 1.8x standard zoom lens
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP® software CD
  • Quick Setup Sheet
  • Registration card
  • Password protection sticker
  • Lens lock screw


Carton 2 of 2:
  • Spare lamp
  • Ceiling mount

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 5200 lumens1White Brightness - White Light Output: 5200 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:
  • Normal mode: Up to 2500 hours2
  • ECO mode: Up to 4000 hours2
Throw Ratio Range: 1.52 – 2.76 (4:3)
1.26 – 2.30 (16:10, 16:9)Size - projected distance: 50" – 300"Keystone Correction:
  • Horizontal: ±30 degrees
  • Vertical: ±30 degrees
Contrast Ratio: (High Brightness, Dynamic Mode) 5000:1 with Auto Iris onColor Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

Effective Scanning Frequency Range:

Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)Horizontal: 15 KHz – 92 KHzVertical: 50 Hz – 85 Hz

General:

Weight: Weight with standard lens 21.5 lbSecurity:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:

Type: Manual focus / ZoomF-number: 1.65 – 2.55Focal Length: 21.28 mm – 37.94 mmZoom Ratio: Optical zoom 1.0 – 1.8Lens Shift:
    With standard lens
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:

Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
    • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Interfaces:
  • HDMI x 1
  • DisplayPort x 1
  • Computer: D-sub 15 pin x 2
  • Video-1: 5-BNC x 1
  • Video-2: RCA x 1
  • Composite video: BNC x 1
  • S-Video x 1
  • Audio-in: Mini stereo x 3
  • Audio-in: RCA (L & R) x 1
  • Network: RJ-45 x 1, 100 Mbps
  • USB Type-A x 1, Type-B x 1
  • Serial: RS-232c
  • Hardwire Remote jack x 1
  • Monitor-Out: D-sub 15 pin x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet: 19.88" x 15.04" x 5.67"

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees

    • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to -45 degrees
See Full Specs Hide Full Specs
Print All Specs
Rated 5 out of 5 by from easy to work with we bought this a couple of years ago my grandson messed up the printer connection so I had to uninstall it and reinstall it once again it worked well
Date published: 2020-09-27
Rated 5 out of 5 by from Printer I bought it a while ago just setting it up to my new computer
Date published: 2020-09-23
Rated 1 out of 5 by from very very hard I am not happy.
Date published: 2020-09-14
Rated 5 out of 5 by from Love it! Have had no problems that I cannot fix at home and I absolutely love it for the price.
Date published: 2020-07-27
Rated 5 out of 5 by from great device I love this product great device
Date published: 2020-07-24
Rated 4 out of 5 by from Good performance Purchased at Base Exchange to replace a competor.
Date published: 2020-07-19
  • y_2021, m_10, d_20, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_6
  • loc_en_US, sid_V11H513020MB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_epson

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Consult your user manual for input combinations.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014.
