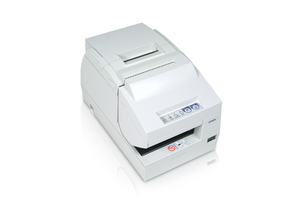

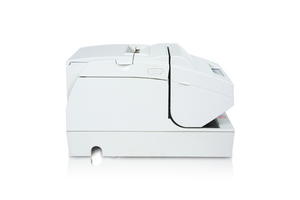

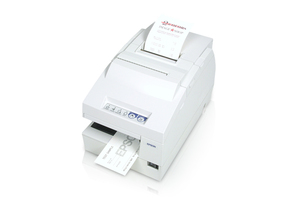

TM-H6000 Multifunction Printer with TransScan

The TM-H6000 multifunction Point-of-Sale printer with TransScan™ digital check imaging is the only printer that allows retailers to take advantage of the benefits of electronic check conversion at the point-of-sale. It processes and captures the complete check image in a single step. And by implementing ECC at the point-of-sale retailers and supermarkets can dramatically reduce check processing costs and cut bad check costs and losses.

Find Accessories Support View Service Plans

Overview

Exclusive TransScan digital check imaging technology
99.9% MICR accuracy; a leader in the industry
Two-color receipt capability
Fast 63 lps thermal receipt printing
Grayscale feature scans at 256 shades of gray
High-resolution graphics printing with no processing delay
Superior slip handling with built-in forms stopper
Most compact, durable design with the highest reliability in its class

Specifications

Print Other:

Printing Technology:

Receipt: Thermal line printing
Slip: 9-pin serial impact dot matrix
Endorsement: 8-pin shuttle impact dot matrix

Print Speed:

Receipt: 200mm/sec (63 lps, 3.18mm [1/8"] conversion); Two-color mode: 78mm/sec (24.5 lps, 3.18mm [1/8"]
Slip: Approx. 5.7 lps (40 columns, 17.8 cpi)
Endorsement: Approx. 1.9 lps

Consumables:

Ribbon Life:

Slip: 4,000,000 characters
Endorsement: 800,000 characters

Inked Ribbon:

Slip: ERC-32B (Black)
Endorsement: ERC-41B (Black)

General:

Dimensions: 186 x 298 x 209mm (W x D x H) [7.3 x 11.7 x 8.2"]Weight: Approx. 5.9 kg (13 lbs)Safety Approvals:

Device: WEEE, RoHS compliant
Control board:
- EMI standards: VCCI class A, FCC class A, CE marking, AS/NZS 3548 Class B
- Safety standards: UL, CSA, TÜV (EN60950)

Case Color: Epson Cool White or Epson Dark Gray

Print Fonts:

Column Capacity:

Receipt: 56 / 42 columns
Slip: 60 / 45 columns
Endorsement: 40 columns

Character Size:

Receipt: 0.99 x 2.4mm (W x H), 1.41 x 3.39mm (W x H)
Slip: 1.24 x 3.1mm (W x H), 1.56 x 3.1mm (W x H)
Endorsement: 1.1 x 2.42mm (W x H)

Fonts:

Receipt: 9 x 17 / 12 x 24
Slip: 5 x 9 / 7 x 9
Endorsement: 5 x 7

Character Set:

Receipt and Slip: 95 Alphanumeric, 37 International, 128 x 8 Graphic, Japanese or Taiwanese Kanji (factory option)
Endorsement: 128 x 11 Graphic

Scan POS:

Type: CIS (Contact Image Sensor)Speed: 120mm/secResolution: 200 dpiScan Area: Width: Max. 100mm, Length: Max. 230mmMode: Black and white, 256 shade grayscaleData Transmission Format: TIFF, JPEG, Windows® Bitmap, RawData Compression: CCITT Group 4, JPEGScan Memory: 4 MB DRAMImage Storage Memory: 16 MB NAND (field upgradable option)
