TM-L90 Plus Label and Barcode Printer

Contact Us

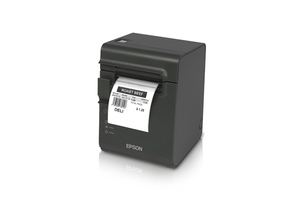

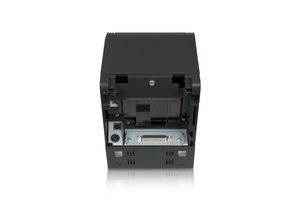

The TM-L90 Plus printer offers high quality label, barcode and receipt printing in one compact unit. It features fast print speeds up to 150mm/sec and prints at a clear 203 x 203 dpi. It handles a variety of print stock for labels, receipts and tickets and offers continuous printing on liner labels. It is compatible with leading business label software applications using Windows® drivers.

  • High quality, thermal printing at a crisp 203 x 203 dpi
  • Fast print speeds at up to 150mm/second
  • Compatible with leading business label software using Windows®® drivers
  • Easy, drop-in paper loading of rolls up to 90mm in diameter
  • High reliability with an MCBF of 70 million lines
  • Dual interfaces standard including built-in USB plus one UIB interface
  • One-year limited warranty
  • Peeler version available soon

Print Other:

Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpiPrint Direction:
  • 150mm/sec, 5.9"/sec high-speed mode
  • 120mm/sec, 4.7"/sec normal mode


Operating Systems:
  • Windows 2000/XP/Vista/7/8
  • Windows Embedded POS Ready 7/2009
  • Windows Server 2008/2012
Dimensions: 5.5" x 5.8" x 8.0" (140 x 148 x 203 mm) (W x D x H)Weight: Approx. 4.18 lb (1.9 kg)Safety Approvals:
  • EMI standards: VCCI class A, FCC class A, CE marking, Canada EMI, AS/NZS 3548, AS/NZS CISPR22 Class A
  • Safety standards: UL, CSA, TÜV (EN60950)
  • Environmental standards: WEEE, RoHS compliant
Case Color: Epson Dark Gray (EDG)

Print Fonts:

Column Capacity: 64/48/72 (columns)Character Size: 1.13 x 2.13 / 1.5 x 3.0 / 1.0 x 2.0 (W x H mm)Fonts: 9 x 17 / 12 x 24Character Set: 95 Alphanumeric, 37 International, International 18sets,128x47 graphics, 128 x 11 Graphic Traditional/SimpleChinese, Thai, JapaneseCharacters per Inch: 22.6 cpi (9 x 17 font)/16.9 cpi (12 x 24 font)Barcode: UPC-A, UPC-E, JAN8 (EAN), Jan13 (EAN), ITF,CODE39, CODE93, CODE128, CODABAR, PDF417,MAXICODE, QRCODE

Media Handling:

Width: 38mm (1.50"), 60mm (2.76"), 80mm (3.14")Roll Diameter: 90mm (3.5") maximum

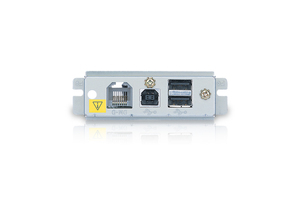

Standard Connectivity: Built-in USB interface + another selection: serialRS-232C, parallel IEEE-1284, high-speed USB, poweredUSB, Ethernet 10/100Base-T/TX, Bluetooth, WiFi(only one interface can be used at a time)

Control Board:

Data Buffer: 4K or 45 bytes

POS Details:

  • MTBF: 360,000 hours
  • MCBF: 70,000,000 lines
  • Autocutter: 2 million cuts receipts, 1 million cuts labels
D.K.D.: 2 driversOptions: PS-180 AC adaptor, paper roll spacer, wall-hangingbracket WH-10


Power Consumption: Approx. 1.8A (mean)Power Source: 24 VDC ± 7%
