For Work Printers Large Format SureColor P8000 Designer Edition
Discontinued

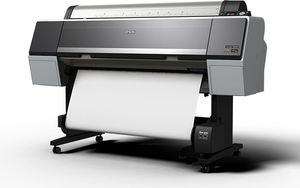

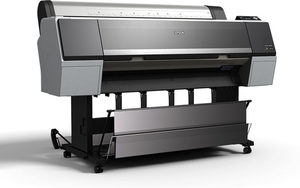

Epson SureColor P8000 Designer Edition Printer

Photographic Printing. Refined.

The 24-inch Epson SureColor® P6000 and 44-inch SureColor P8000 printers are the worthy successors to the class-leading Epson Stylus Pro 890 Series.

Designed for general purpose graphics and photographic applications, they incorporate our latest imaging technologies – including an exotic Epson PrecisionCore® TFP® print head, along with our unique Epson UltraChrome® HD eight-color pigmented ink set.

With advanced media handling options from cut sheet to roll, from plain papers to photographic, fine art, and even 1.5 mm thick poster boards, the new Epson SureColor P-Series continues to redefine the state of the art in wide format photographic imaging applications.

  • Model: SCP8000DES
REPLACEMENT PRODUCT :
SureColor P8570D 44-Inch Wide-Format Dual Roll Printer
SureColor P8570D 44-Inch Wide-Format Dual Roll Printer
Model: View Main Product Page Learn More

UltraChrome® HD Inks

  • Next Generation Pigment Ink Technology — Introducing all new pigments for outstanding color performance and Improved Resin Encapsulation Technology for superior gloss uniformity.
  • Improved Black Density — Photo Black pigment 1.5 times denser than the previous generation ink set, along with significant improvement to overall contrast ratio and optical clarity.
  • Significant Print Permanence Improvements — Featuring completely reformulated pigment technology for improved print permanence, and up to twice the overall print permanence versus our previous generation ink set.1

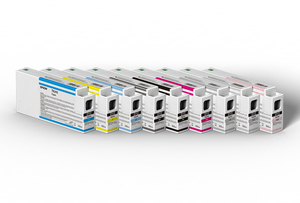

  • Epson Intelligent High-Capacity Ink System — Nine individual ink cartridges; available in 150ml, 350ml, and 700ml fill volumes. SureColor P-Series printers are designed to work exclusively with specially formulated Epson inks, and not with other brands of cartridges or inks.

PrecisionCore TFP Print Head

  • One-inch wide print head with 8-channels of 360 nozzles each
  • Capable of printing up to 2,880 x 1,440 dpi
  • Supports variable sized droplet technology as small as 3.5 picoliter
  • Ink repellant surface coating for reduced nozzle clogging
  • Low vibration meniscus control for highly accurate dot shape and placement
  • Automatic or manual photo and matte black ink type switching
  • New scheduled print head maintenance cycles - Perform before the next job after the allotted time
  • New Precision Dot advanced screening for accurate color and smooth tonal transitions

Versatile Media Handling

  • Top front-loading roll media support up to 24" (SC-P6000) and 44" wide (SC-P8000)

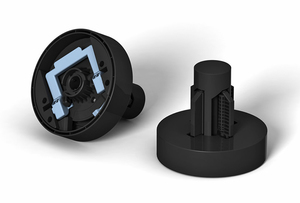

  • Spindle-Free roll media adapters adjust easily for both 2” and 3” media cores
  • Straight-through media path, optimal for delicate surface fine art and photo medias
  • BorderFree printing for many popular print widths - 10", 13", 16", 17", 24", 36" and 44" (36" and 44" SureColor P8000 only)
  • Built-in automatic rotary media cutter — Capable of smoothly cutting all photographic and fine art media types
  • Roll media length tracking
    - Automatic printing and reading of bar code to track and report remaining length
    - Automatically alerts operator if there’s not enough media left to print the job
  • Optional 44" Auto Take-up Reel system — Perfect for unattended roll-to-roll production (SureColor P8000 only)

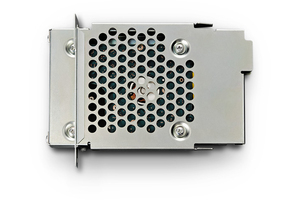

Internal Print Server (Optional)

  • Store up to 200 jobs, reprint jobs and adjust print priority
  • Quickly off-loads print data from one or multiple MACs and PCs
  • Manage jobs at the printer control panel, or remotely via a built-in web interface
  • Supported with new Print Driver Options:
    - Print & Save – fast spooling with reprint functionality
    - Print Only – fast spooling without job storage
    - Save Only – holds for printing at a later time, great for black ink or media change
    - Print after Transmission Completed – perfect for wireless and slow connections
  • Advanced security with IPsec and IEEE802.1x authentication protocols
  • User installable option, can be added at any time

SpectroProofer UVS(Optional)

  • Optional 24- or 44-inch wide spectrophotometer developed jointly with X-Rite
  • Automates color calibration and proof verification tasks
  • X-Rite ILS30EP reading unit supports: M0, M1 and M2 measurements
  • Support all standard UV and UV-cut measurement requirements
  • XRGA complaint for intra-device measurement compatibility
  • Built-in print dryer to accelerate the dry-down and reading consistency
  • Simple, clean installation into the front of the printer, can be added any time
  • Supported by industry leading digital front-ends (DFEs): AGFA, CGS, EFI, ESKO, Fuji, GMG

EFI® eXpress for Epson included with Designer Edition Bundles

  • Easy-to-Use intuitive interface saves time and produces accurate output.
  • Print directly from the latest creative design software, or drag-and-drop files to a hot folder.
  • True Adobe® PDF and Postscript 3 print engine ensures compatibility with your design files.
  • Professional ICC color management, based on BestColor technology used in the commercial EFI Colorproof XF RIP offered with the Epson Proofing Edition Series.
  • Handles both CMYK data for accurate proofing to industry standards, and RGB data for exceptional results with Photography and Fine Art.
  • Reproduces accurate spot colors with the included PANTONE, DIC, HKS, and TOYO libraries.
  • True cross platform network printing via hot folder or eXpress Virtual Print technology.
  • Software supported on both Macintosh OS X and Microsoft Windows operating systems.
  • Includes Epson media support out of the box, and the ability to add custom media types.

Epson Print Layout — simplified workflow and easy color control. Find this download on the Support tab.

SURECOLOR P-SERIES RIP INFORMATION ►

What's in the box:

  • SureColor P-Series Printer
  • Printer Stand with Catch Basket
  • Spindle-free Roll Media Adaptors
  • Set of eleven 110 ml initial ink cartridges
  • Ink Maintenance Tank(s) (installed)
  • AC Power Cable
  • User Guide Kit (Documentation and Warranty)
  • Software is provided via download
  • Sample roll - Epson Doubleweight Matte Paper for print head alignments

Print:


Printing Technology: PrecisionCore TFP Print Head
8-channel, drop-on-demand, inkjet print headMaximum Print Resolution: 2880 x 1440 dpi; 1440 x 1440 dpi; 1440 x 720 dpi;
720 x 720 dpi; 720 x 360 dpiPhoto Print Speed: 16" x 20" prints from 2:02 to 6:58 Production is 4:162
20" x 30" prints from 3:40 to 12:25 Production is 7:362
40" x 60" prints from 11:15 to 40:05; normal is 24:202Nozzle Configuration: Color and Monochrome; 360 nozzles x 8
Enhanced Variable Droplet Technology as small as 3.5 picoliters

Ink:


Ink Type: Epson UltraChrome HD pigment inks, 9-ink, 8-color (C, LC, VM, VLM, Y, LK, LLK, and PK or MK)Replacement Ink: Ink Cartridge (150 ml)
  • Photo Black T834100
  • Cyan T834200
  • Vivid Magenta T834300
  • Yellow T834400
  • Light Cyan T834500
  • Vivid Light Magenta T834600
  • Light Black T834700
  • Matte Black T834800
  • Light Light Black T834900
  • Orange T834A00
  • Green T834B00
  • Violet T834D00
Ink Cartridge (350 ml)
  • Photo Black T824100
  • Cyan T824200
  • Vivid Magenta T824300
  • Yellow T824400
  • Light Cyan T824500
  • Vivid Light Magenta T824600
  • Light Black T824700
  • Matte Black T824800
  • Light Light Black T824900
  • Orange T824A00
  • Green T824B00
  • Violet T824D00
Ink Cartridge (700 ml)
  • Photo Black T804100
  • Cyan T804200
  • Vivid Magenta T804300
  • Yellow T804400
  • Light Cyan T804500
  • Vivid Light Magenta T804600
  • Light Black T804700
  • Matte Black T804800
  • Light Light Black T804900
  • Orange T804A00
  • Green T804B00
  • Violet T804D00
Fade Resistance / Print Longevity: Color: Up to 200 years1
Black-and-White: Up to 400 years1

General:


Operating Systems:
  • Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7x
  • Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)
Temperature: 65° to 75°F (18° to 24°C)Humidity: 40 to 60% (no condensation)Dimensions: 74" x 26" x 48"Weight: 298 lbs (135 kg)

Ink Supply System:


Retail Ink Fill Volume: 150 ml, 350 ml, or 700 ml each x 9 colors totalInk Shelf Life: 2 years from printed production date or 6 months after open

Epson Intelligent Ink Cartridges:


In-box Cartridge Fill Volume: 110 mL each color x 9 colors total4Retail Cartridge Fill Volume: 150, 350 or 700 mL each color x 9 colors total4Ink Cartridge Shelf Life: 2 years from printed production date or 6 months after opened. Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.4

Printable Area and Accuracy:


Maximum Paper Width: 44" Minimum Cut-sheet Size: 8.5" x 11"Line Accuracy: +/- 0.2% of specified length (+/- .26mm minimum)Maximum Printable Length: 529"

Sheet Media Handling:


Sheet Loading: Auto-loading if less than .5mm thickThickness: 0.8mm to 1.5mmSingle Sheet, Top-loading: 44" wideLeft/Right Margins: 3mm each side; 6mm or 0.24" totalTop/Bottom Margins: 3mm / 15mm

Roll Media Handling:


Roll Cutting: High-speed internal rotary cutter; auto or manual5

Printer Details:


Printer Language: EPSON ESC/P® raster photographic drivers standardInterfaces: Hi-Speed USB 2.0 port (1 port)7
1000Base-T Ethernet (1 port)7

Power:


Rated Voltage: AC 100-240 VRated Frequency: 50-60 HzRated Current: Less than 2APower Consumption: Printing: Approx. 75 W
Sleep: Approx. 2.0 W (1000 BaseT Ethernet in Standby)
Power Off: Less than 0.5W

Auto-switching Black Ink Technology:


Black Ink Conversion Times, Normal Mode: Matte to Photo Black: approx. 2:553
Photo to Matte Black: approx. 2:073Black Ink Conversion Times, Quick Mode: Matte to Photo Black: approx. 7.2 mL3
Photo to Matte Black: approx. 1.12 mL3

Notes:

* Price is MSRP before any applicable rebates. Reseller prices may vary. All prices are in U.S. Dollars.

1 Ink lightfastness rating based on accelerated testing of prints on specialty media, displayed indoors, under glass. Actual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions. Epson does not guarantee longevity of prints. For maximum print life, display all prints under glass or lamination or properly store them. Visit www.wilhelm-research.com for the latest information.

2 Print times are based upon print engine speeds only. Total throughput depends upon front-end driver/RIP, file size, printing resolution, ink coverage, network speed, etc. Normal is for prints imaged using 1440 x 720 high-speed mode.

3 Ink used in conversion varies considerably based on temperature and other factors.

4 Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.

5 High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

6 Allowed by printer driver for Mac® and PC. Application, version of application and operating system version may limit maximum length.

7 For the latest drivers, visit www.epson.com/support
