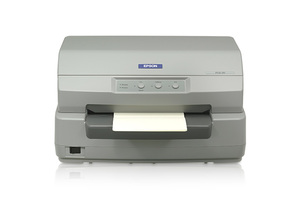

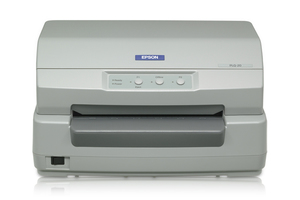

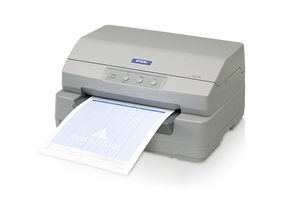

PLQ-20 Passbook Printer

The 24-pin Epson PLQ-20 impact passbook printer is fast and versatile, with print speeds up to 480 cps, high paper throughput and the ability to handle passbooks up to 2.6mm thick. It also features convenient automatic forms alignment and automatic print gap adjustment to ensure fast, trouble-free printing of passbooks and other specialized banking documents.

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

PLQ-50 Passbook Dot Matrix Printer

Model: View Main Product Page Learn More

Overview

Handles passbooks up to 2.6mm thick
Print speeds up to 480 cps
Easy system integration
Flexible connectivity with Parallel, Serial and USB interfaces
Simple setup and operation
Easy paper handling features
Optional wireless and wired network interfaces
Optional space-saving kit

What's in the box:

Epson PLQ-20 Passbook Printer
Set-up guide
CD-ROM (User Manual)
AC power cable
Ribbon cartridge

Specifications

Print Other:

Printing Technology: 24 pin, impact dot matrixPrint Speed:

PR2 emulation

High speed draft: 480/432cps at 10/12cpi
Draft (CPS): 360/360cps at 10/12cpi
NLQ (CPS): 180/180cps at 10/12cpi
LQ (CPS): 120/144 cps at 10/12cpi

ESC/P and PPDS emulations

High speed draft: 480/ 576cps at 10/12cpi
Draft (CPS): 360/432cps at 10/12cpi
LQ (CPS): 120/144cps at 10/12cpi

General:

Sound Level: 53 dB(A)Dimensions: 15.11" x 11" x 8" (384 x 280 x 203 mm) (W x D x H)Weight: 17 lbs (7.7 kg)Case Color: Epson Cool White (ECW)

Consumables:

Ribbon Life: 5 million characters (LQ 10cpi, 48 dots/character), 10 million characters (draft 10cpi, 24 dots/character)Inked Ribbon: Type: fabric; Color: black

Print Fonts:

Barcode:

PR2: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, Code 39, Coda bar (NW-7),Industrial 2 of 5, UPC-E
ESC/P: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A,UPC-E, Code 39, Code 128, POSTNET

Media Handling:

Thickness:

Cut sheet (single sheet): min. 0.065mm, max. 0.19mm
Cut sheet (multi-part): min. 0.12mm, max. 0.53mm

Feed Method: Friction feed (front manual)Media Dimensions:

Cut sheet (single sheet): W x L = 65 x 67mm to 245 x 297mm
Cut sheet (multi-part): W x L = 65 x 67mm to 245 x 297mm

Weight:

Cut sheet (single sheet): min. 52 g/m 2 , max. 157 g/m 2
Cut sheet (one sheet of multi part): min. 34 g/m 2 ,max. 50 g/m 2

Paper Loading: Paper path: Manual insertion; front in, front out/front in, rear outCopy Capacity: 1 + 6 copiesPassbook:

Width: Min. 110mm, max. 241.3mm
Length:
- Horizontal seam: min. 127mm, max. 220mm
- Vertical seam: min. 85 mm, max. 220 mm
Total thickness: Max. 2.6mm (open passbook)
Weight: Min. 95 g/m 2, max. 116 g/m 2

Connectivity:

Standard Connectivity: Bi-directional parallel interface (IEEE 1284 nibble modesupported), Serial, USB (2.0 compatible)

POS Details:

Reliability:

MTBF: 10,000 (POH)

Print head life: 400 million character at 14 dots/character

Data Buffer: 64 Kb

Power:

Power Consumption:

Normal mode: Approx. 60W
Sleep mode: approx. 8W
Powered off mode: 0W

Power Source: 100 – 120V AC, 50/60 Hz (49.5 to 60.5 Hz)
