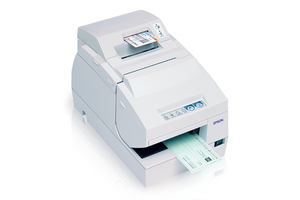

TM-H6000 Multifunction Printer with ProofPlus

Print Fonts:

---

Column Capacity:

• Receipt: 56 / 42 columns
• Slip: 60 / 45 columns
• Endorsement: 40 columns

Character Size:

• Receipt: 0.99 x 2.4mm (W x H), 1.41 x 3.39mm (W x H)
• Slip: 1.24 x 3.1mm (W x H), 1.56 x 3.1mm (W x H)
• Endorsement: 1.1 x 2.42mm (W x H)

Fonts:

• Receipt: 9 x 17 / 12 x 24
• Slip: 5 x 9 / 7 x 9
• Endorsement: 5 x 7

Character Set:

• Receipt and Slip: 95 Alphanumeric, 37 International, 128 x 8 Graphic, Japanese or Taiwanese Kanji (factory option)
• Endorsement: 128 x 11 Graphic

Scan POS:

---

Type: CIS (Contact Image Sensor)Speed: 120mm/secResolution: 200 dpiScan Area: 86 x 55mm, Thickness: 0.5 to 0.84mmMode: 256 shade grayscaleData Transmission Format: TIFF, JPEG, Windows7® Bitmap, RawData Compression: JPEGScan Memory: 4 MB DRAMImage Storage Memory: 16 MB NAND (field upgradable option)

Media Handling:

---

Thickness:

• Receipt: 0.06 to 0.09mm
• Slip: 0.09 to 0.31mm
• Endorsement: 0.09 to 0.2mm

Media Dimensions:

• Receipt: 79.5 ± 0.5 x diameter 83.0mm [3.13 &3177; 0.02 x diameter 3.27"]
• Slip: 70 to 148 x 150 to 210mm (W x L) [2.76 to 5.82 x 5.91 to 8.27"]

Copy Capacity:

• Slip: One original and three copies
• Endorsement: One original single-ply

Connectivity:

---

Standard Connectivity:

• RS-232C
• Bi-directional parallel
• RS-485
• USB¹
• IBM® P7
• Connect-It²

POS Details:

---

Reliability:

• Receipt:
  • MTBF: 360,000 hours
  • MCBF: 72,000,000 lines
• Slip:
  • MTBF: 180,000 hours
  • MCBF: 29,000,000 lines
• Endorsement:
  • MTBF: 180,000 hours
  • MCBF: 3,300,000 lines

Data Buffer: 45 bytes or 4 KB (up to 384 KB for graphic files)D.K.D.: 2 driversOptions: 16 MB NAND memory

Power:

---

Power Consumption:

• Receipt: 1.8 A (mean)
• Slip: Approx. 1.9 A (mean)
• Endorsement: Approx. 1.9 A (mean)

Power Source: 24 VDC ± 10%
