TM-L90II Liner-Free Compatible Thermal Label Printer

Contact Us

562-276-1314

Zoom In
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer
TM-L90II Liner-Free Compatible Thermal Label Printer

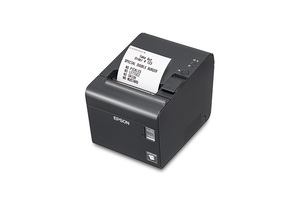

Versatile liner-free compatible label printer for operational efficiency.

The flexible TM-L90II Liner-Free Compatible (LFC) thermal label printer features fast, efficient operation. With a convenient label-taken sensor, it accepts multiple jobs but prints only one label at a time, preventing newly printed labels from adhering to one another. It also features back-feed functionality, enabling the printer to print closer to the top of the label for more efficient media use. Plus, with white-space and character-height reduction, the TM-L90II LFC helps to reduce paper usage up to 47 percent1. This versatile printer offers liner-free label printing, the perfect tool for improving order accuracy, as well as receipt printing. And it supports printing from smartphones and tablets.

Request More Info
Find Accessories Support
  • Label-taken sensor — accepts multiple jobs but only prints one label at a time; prevents continuous printing and labels adhering to each other
  • Back-feed capability — retracts labels so it can print closer to the top for more efficient media use
  • Advanced paper-saving features — white-space and character-height reduction help reduce paper usage up to 47 percent1
  • Ready-to-use labels — help improve order accuracy and customer satisfaction
  • Flexible — one printer for both liner-free labeling and receipt printing
  • mPOS friendly — supports printing from smartphones and tablets
  • Convenient — dual interfaces, including built-in USB for flexible connectivity
  • Fast print speeds — up to 170 mm/sec
  • Versatile — 40, 58 and 80 mm print width support options
  • Efficient — automatically detects media type and width

What's in the box:

  • TM-L90II LFC thermal label printer
  • User Guide
  • Guides for 40 mm and 58 mm paper
  • Power supply with AC cable

Print Other:

Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpiPrint Speed: 170 mm/sec (thermal receipt); 90 mm/sec (label media)

General:

Dimensions: 5.5" x 7.9" x 5.8" (140 mm x 203 mm x 148 mm)Weight: Approx. 4.19 lbs (1.9 kg)Safety Approvals:
  • Environmental standards: WEEE, RoHS compliant
  • EMI standards: FCC/ICES-003 Class A, CE marking, AS/NZS CISPR22 Class A
  • Safety standards: UL, CSA, TUV (EN60950)
Case Color: Epson Dark GrayWarranty: 1-year standard limited warranty

Print Fonts:

Print Fonts:
  • Font (A/B)
  • 40 mm: 12 x 24, 7 x 17/9 x 17, 7 x 17
  • 58 mm: 13 x 24, 10 x 24/10 x 17, 7 x 17
  • 80 mm: TM-T88 compatible mode 13 x 24, 10 x 17; TM-L90 compatible mode 12 x 24, 9 x 17
Column Capacity: 64/48 columnsCharacter Size: 1.13 mm x 2.13 mm and 1.5 mm x 3.0 mmCharacter Set: 95 Alphanumeric, 37 International, 128 x 11 GraphicBarcode: UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF, Code 39/93/128, CODABAR, QR-CODE, MaxiCode, PDF417

Media Handling:

Tested Media: Visit www.epson.com/lfctestedmedia for a complete list.3Width: 40 mm, 58 mm, 80 mmThickness: 2 mil to 8 mil, depending on mediaRoll Diameter: 4" (102 mm)Auto Cutter: Autocutter: 2 million cuts (receipts), 1 million cuts (labels)2

Connectivity:

Standard Connectivity: Built-in USB interface + another selection; Serial RS-232c, Ethernet, Wireless (USB dongle)

POS Details:

Reliability:
  • MTBF: 360,000 hours2
  • MCBF: 70 million lines (receipts), 35 million lines (labels)2
Data Buffer: 4K or 45 bytesD.K.D.: 2 drawersOptions: PS-180 AC adaptor, paper roll spacer, wall-hanging bracket WH-10

Power:

Power Consumption: Approx. 1.7A (mean)Power Source: 24 VDC±7%
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Paper savings depend on the text and graphics printed on the receipt.

2 Epson’s statements about reliability levels are only estimates based on normal use of the printer using tested media only. See epson.com/testedmedia for more information on Tested Media. These reliability statements are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer.
