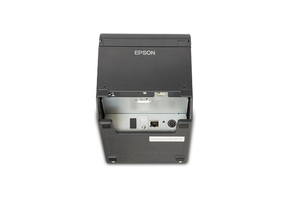

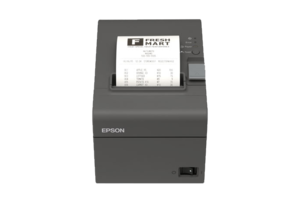

TM-T20II Ethernet Plus POS Receipt Printer

The New TM-T20II Ethernet Plus offers customers flexible connectivity and convenience. With built-in Ethernet and a USB host port as standard, merchants have the ability to add wireless connectivity through the use of an Epson wireless adapter (OT-WL02). Achieve seamless connectivity and printing from mobile devices and web applications using Epson's ePOS Print technology. mPOS configurations allows retailers to switch from legacy PC POS to mobile based systems with ease. With low total power consumption, reduced paper usage and options to add coupons to receipts, the TM-T20II Ethernet Plus is the ideal receipt printer for small-to-medium enterprises.

REPLACEMENT PRODUCT :
TM-T20III Thermal Receipt Printer
TM-T20III Thermal Receipt Printer
Model: View Main Product Page Learn More
  • Flexible connectivity with built-in Ethernet and a USB host port provides merchants the ability to add wireless connectivity through an Epson wireless adapter (OT-WL02)
  • Utilizes Epson's ePOS Print technology for printing from mobile devices and web based applications
  • Easy connectivity of mobile devices over the wireless network using Epson's "Simple AP" functionality
  • Print options support couponing and promotional messaging to be added to receipts1
  • Provides options to reduce paper usage by up to 30%
  • Low total power consumption with standby power reduced by 80% over the predecessor model
  • mPOS-friendly printer compatible with IOS, Android and Windows mpobile devices
  • All-in-one-box accessories and software
  • Print speed up to 200mm/sec

What's in the box:

  • TM-T20II Ethernet Plus Printer
  • Thermal roll paper (starter roll for operation check)
  • Ethernet cable (may not be included depending on the model)
  • AC cable (may not be included depending on the model)
  • Set-up guide
  • CD (includes User Manual, Technical Manual, drivers)
  • Wall hanging bracket

Print Other:


Printing Technology: Thermal line printingPrint Speed: Max. 200mm/sec (5.91 in/sec)

General:


Dimensions: 5.51” x 7.83” x 5.75” (140 x 199 x 146 mm) (W x D x H)Weight: 3.75lb (1.7 kg)Safety Approvals:
  • Safety standards: UL60950-1/CSA C22.2 No.60950-1UL/CSA/EN/TUV/GOST-R
  • EMI Standards: FCC Class A, CAN ICES-3(A)/NMB-3(A)
Case Color: Epson Dark Grey

Print Fonts:


Print Fonts: 9 x 17 and 12 x 24 dots/character (W x H)Column Capacity:
  • Standard: Paper width 80mm: 48/64; Paper width58mm: 35/46
  • 42 Column Mode: Paper width 80mm: 42/60; Paperwidth 58mm: 42/31
Character Size: 0.88 × 2.13 and 1.25 × 3 mm (W x H)Fonts: 9 x 17 and 12 x 24 dots/character (W x H)Character Set:
  • 95 Alphanumeric, 18 set International, 128 × 43 Graphic.
  • Barcode: UPC-A, UPC-E, JAN13 (EAN13),JAN8 (EAN), CODE39, ITF, CODABAR (NW-7),CODE93, CODE128, GS1-128, GS1 DataBar.
  • Two dimensional code: PDF417, QRCode, MaxiCode, 2DGS1 DataBar, Composite Symbology
Characters per Inch: 22.6 and 16.9 cpi

Media Handling:


Media Dimensions:
  • 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5(W) x 83mm)
  • 58mm: 2.26" ± 0.02± x 3.27" diameter (57.5 ± 0.5(W) x 83mm)

Connectivity:


Standard Connectivity:
  • Built-in Ethernet interface
  • USB-A port for wireless connectivity: requires OT-WL02 (802.11 b/g/n, 2.4GHz) USB dongle (sold separately)
Printing from a Mobile Device:
  • Supported mobile operating systems: WiFi (802.11): iOS, Android and Windows
  • Operating systems Bluetooth: iOS, Android and Windows

POS Details:


Reliability:
  • MTBF: 360,000 hours
  • MCBF: 60,000,000 lines
  • Auto Cutter: 1.5 million cuts
D.K.D.: 2 driversSoftware Included:
  • Drivers & tool software (APD, OPOS, JavaPOS;, OPOS NET, TM Virtual port driver, Linux® Cups driver, Mac OS® X driver, TM-T20II Utility, EpsonNet Simple Viewer)
  • Coupon Printing utility
Options:
  • Affixing tape and external buzzer unit
  • Installation: Horizontal/vertical on counter/vertical on wall with wall hanging bracket

Power:


Power Consumption: Approx. 1.8APower Source:
  • 100-240V AC, 50/60 Hz; External (AC cable included)
  • ENERGY STAR® qualified

Notes:

1 Utility supported by Windows only
