TM-T70II POS Receipt Printer

The reliable, high-performance front-loading thermal receipt printer.

Epson's mPOS-friendly TM-T70II POS printer, with its small size and low height (only 4.49" high), is designed to fit under a counter, in kiosks and other small spaces. It features fast printing of up to 250mm/second, industry-leading reliability, dual interfaces and more. And it supports all the leading mobile operating systems including iOS, Android and Windows.

Model: C31CD38124

Request More Info

Find Accessories Support

Overview

Versatile — supports 3" media width
Fast — prints up to 250 mm/sec

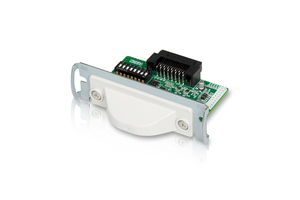

Highly configurable with Connect-It^™ modules — plus wireless and Bluetooth^® capabilities
Compatible — works with both traditional and mobile (iOS^®, Android^™ and Windows^®) POS systems; includes ESC/POS^® OPOS and Java POS drivers
ePOS^™ print technology — for easy setup with iOS, Android and Windows mobile devices and Windows drivers for desktop PCs
Wireless setup — with SimpleAP (wireless SKU only)
Dual interface — options include USB, Ethernet, wireless and Bluetooth
Energy efficient — low power consumption; ENERGY STAR^® qualified¹
Comprehensive service and support — dedicated technical resource team, customized solutions, 2-year limited warranty

What's in the box:

TM-T70II Thermal Printer
Thermal roll paper (starter roll for operation check)
Bracket for holding USB cable
AC adapter/AC cord
Set-up guide
CD ROM (includes User Manual
Technical Manual, drivers)

Specifications

Print Other:

Printing Technology: Thermal line printingPrint Speed: Max. 250mm/sec (9.84"/sec)

General:

Dimensions: 4.92" x 7.64" x 4.49" (125 x 194 x 114 mm) (W x D x H)Weight: 3.75 lbs (1.7 kg)Safety Approvals:

Safety standards: UL/CSA/EN/TUV/GOST-R
EU directive: RoHS and WEEE compliant

Case Color: Epson Dark Gray

Print Fonts:

Print Fonts: Font A: 12 x 24 dots; Font B: 9 x 17 dots (W x H) Column Capacity: (A, B) 80mm: 42/56Character Size:

(Std / Double H, Double W / Double W and Double H)
Font A: 1.41 x 3.39 / 1.41 x 6.77 / 2.82 x 3.39 /2.82 x 6.77mm
Font B: 0.99 x 2.40 / 0.99 x 4.80 / 1.98 x 2.40 /1.98 x 4.80mm

Fonts: Font A: 12 x 24 dots; Font B: 9 x 17 dots (W x H)Character Set:

95 Alphanumeric, 18 set International, 128 x 43 Pages
Two dimensional code: PDF417, QRCode, MaxiCode,2D GS1 DataBar, Composite Symbology

Characters per Inch: 20.0 and 15.0 cpiBarcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar.

Media Handling:

Media Dimensions: 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ±0.5(W) x 83mm)

Connectivity:

Standard Connectivity: Built-in USB interface + another selection: serial, parallel,powered USB, Ethernet, 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 2.1 + EDRPrinting from a Mobile Device:

Wi-Fi (802.11): iOS, Android™ and Windows®
Bluetooth: iOS, Android™ and Windows®

POS Details:

Reliability:

MTBF: 360,000 hours
MCBF: 65,000,000 lines
Auto Cutter: 1.7 million cuts

D.K.D.: 2 driversSoftware Included: Drivers & tool software (APD, OPOS™, JavaPOS™, OPOS NET™, TM Virtual port driver, Linux® Cups driver, Mac OS® X driver, TM-T70II Utility, EpsonNet Simple Viewer)Options: External buzzer unit, cable management cover, shelf bracket
