For Work Projectors Classroom PowerLite 520 XGA 3LCD Projector
Discontinued

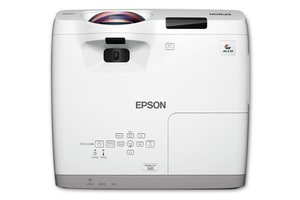

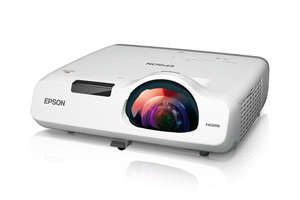

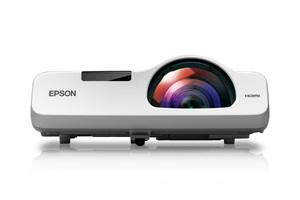

PowerLite 520 XGA 3LCD Projector

Zoom In
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector
PowerLite 520 XGA 3LCD Projector

The affordable XGA short-throw projector for reliable performance

Bring inspiring lessons to any classroom with the affordable PowerLite 520 short-throw projector. Delivering high Color Brightness*, Epson® 3LCD projectors ensure incredible images. Featuring 2700 lumens of color brightness and 2700 lumens of white brightness1, the 520 shines - even in ambient light. Optimized for small spaces, it can project images up to 108" from 4' away with minimal shadows or glare. Low-cost, long-lasting lamps offer a low total cost of ownership. The optional wall mount enables flexible installation. Moderator device management software3 allows instructors to wirelessly share4 students' work from multiple devices, simultaneously - including computers, iOS® and Android™ devices.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% balanced Color Brightness and White Brightness. Delivering 2700 lumens of color brightness1 and 2700 lumens of white brightness1, the PowerLite 520 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Find Accessories Support View Service Plans
Bright and Colorful
Features 2700 lumens of color brightness (color light output)1 and 2700 lumens of white brightness (white light output)1.
XGA Resolution
1024 x 768 resolution
Short-Throw Projector
Can be mounted only 28 inches away from the board, and the projected image can get as large as 106" diagonal with no shadow interference (using the optional wall mount)
iProjection Compatible
Wirelessly project from PC, MAC, Chromebook, iOS, and Android devices – Connect and manage up to 50 devices simultaneously.
Lamp Life
High-efficiency E-TORL lamp lasts up to 5,000 hours in normal mode and up to 10,000 hours in ECO Mode.
Optional Wireless Connectivity
Can be used wirelessly with optional high-speed LAN module (purchased separately).
  • High Color Brightness and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite 520 has:
      Color Brightness: 2700 lumens1
      White Brightness: 2700 lumens1
  • Incredible image quality — native XGA resolution and 4:3 format
  • Large, engaging presentations, even in small spaces — short throw distance saves space; project a 108" image from just 4' away with minimal shadows and glare
  • Long-lasting, low-cost lamps — up to 10,000 hours in ECO Mode5
  • Flexible placement — install using a wall mount (optional) or place on a tabletop or cart
  • Convenient collaboration for BYOD classrooms — wirelessly share4 and compare students' work from multiple devices, simultaneously, with Moderator device management software3
  • Wireless projection from an array of devices — project from iPhone®, iPad®, Android tablets and smartphones with the free Epson iProjection™ App4 (wireless module sold separately)
  • Manage projectors and present remotely — easy network connectivity; software included
  • Powerful sound to engage every student — includes a built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode

Eco Features

  • RoHS compliant
  • Recyclable product6
  • Epson America, Inc. is a SmartWay™ Transport Partner7

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson PowerLite 520 projector
  • Power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • User manual CD
  • Projector software CD
  • Quick Setup Sheet
  • Lens cover
  • Password protection sticker

Specifications Projector:

Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 2700 lumens1White Brightness - White Light Output: 2700 lumens1Aspect Ratio: 4:3Resolution: 1024 x 768 (XGA)Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA 60-1), 1360 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)Lamp Type: 215 W UHELamp Life:
  • ECO mode: Up to 10,000 hours2
  • Normal mode: Up to 5000 hours2
Throw Ratio Range: 0.54 – 0.74Size - projected distance: 50" – 108" (1.27 to 2.74 m)Keystone Correction:
    Manual
  • Vertical: ± 15 degrees
  • Horizontal: ± 15 degrees
Contrast Ratio: Up to 16000:1Color Reproduction: Up to 1.07 billion colors

General:

Temperature: 41° to 95° F (5° to 35° C)Weight: 8.2 lbSecurity:
  • Kensington®-style lock provision
  • Padlock and security cable hole
  • Password protection function

Power:

Power Supply Voltage: 100 – 240 V, ±10%, 50/60 HzPower Consumption:
  • ECO mode: 229 W
  • Normal mode: 293 W
  • Communication on:1.9 W standby
  • Communication off: 0.22 W standby

Projection Lens:

Type: No optical zoom / Manual focusF-number: 1.60Focal Length: 6.4 mmZoom Ratio: Digital zoom 1.0 – 1.35

Remote Control:

Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, escOperating Distance: 19.7 ft (6 m)Operating Angle:
  • Upper / Lower: 10 to ± 70 degrees
  • Right / Left: ± 30 degrees

Projector Dimensions:

Including feet: 13.5" x 12.4" x 5.2" (W x D x H)Excluding feet: 13.5" x 12.4" x 3.7" (W x D x H)

Projector Details:

Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
    • (depends on observation of the multi-burst pattern)

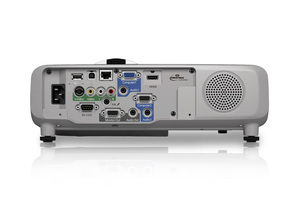

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL /N-PAL / PAL60 / SECAMInterfaces:
  • Computer / Component video: D-sub 15 pin x 2
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (L and R), mini stereo x 2
  • USB connector: Type B x 1 (USB display, audio and mouse control)
  • USB connector: Type A x 1 (USB memory / document camera)
  • HDMI x 1
  • RJ-45 x 1
  • Serial: RS-232c x 1
  • Monitor out: D-sub 15 pin x 1
  • Audio out: Mini stereo x 1
  • Microphone: Mini stereo x 1
  • Wireless LAN port: 802.11 b/g/n (optional — module sold separately)
Speaker: 16W (mono)Fan Noise:
  • ECO mode: 28 dB
  • Normal mode: 35 dB
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Moderator feature is part of EasyMP Multi-PC Projection software.

3 Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.

4 ECO Mode is up to 10,000 hours. Normal Mode is up to 5000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

5 Works only with Epson projectors that support presentation over the network capability. Available for Windows only.

6 For convenient and reasonable recycling options, visit www.epson.com/recycle

7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.



Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
