DISCONTINUED

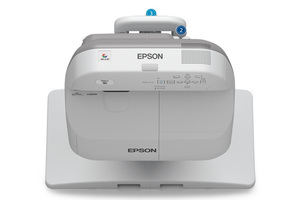

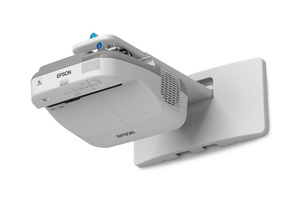

PowerLite 580 XGA 3LCD Projector for SMART

The ultra short-throw XGA projector for SMART Board interactive whiteboards.

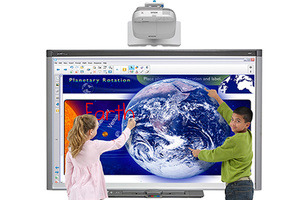

Compatible with SMART Board M680 and 880 interactive whiteboards, the PowerLite 580 ultra short-throw XGA projector for SMART supports the SMART Extended Control Panel1 and features advanced network connectivity. Pair it with a SMART Board (sold separately) featuring SMART Notebook® software and SMART Ink™ tools for an integrated solution. Offering 3x Higher Color Brightness2 than competitive models, Epson® 3LCD projectors ensure bright, vivid lessons. Delivering 3200 lumens of color brightness and 3200 lumens of white brightness3, the PowerLite 580 can project a 77" image from less than 20". And, Moderator software4 allows teachers to compare students’ work from multiple devices, simultaneously.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors2. Delivering 3200 lumens of color brightness2 and 3200 lumens of white brightness2, the PowerLite 530 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

REPLACEMENT PRODUCT :
PowerLite 680 XGA 3LCD Presentation Display for SMART Board Interactive Whiteboards
PowerLite 680 XGA 3LCD Presentation Display for SMART Board Interactive Whiteboards
Model: V11H746620 View Main Product Page Learn More
  • Specially designed to work with SMART Board M680 and 880 interactive whiteboards
    • Easily connect and control your projector via the SMART Extended Control Panel (ECP)1
    • Compatible with SMART Notebook® software and SMART Ink tools
  • Large, engaging presentations, even in small spaces — ultra short throw distance saves space; project a 77" image with minimal shadows and glare
  • Far more accurate color with Epson — 3LCD, 3-chip technology for 3x Higher Color Brightness2 and up to 3x Wider Color Gamut5 than competitive DLP projectors
  • Look for two numbers:
    • 3200 lumens3 Color Brightness for more accurate, vivid color
    • 3200 lumens3 White Brightness for well-lit rooms
  • Amazing image quality — native XGA resolution (4:3 performance); up to 10,000:1 contrast ratio
  • Convenient collaboration for BYOD classrooms — wirelessly share6 and compare studentsΓÇÖ work from multiple devices, simultaneously, with Moderator device management software4
  • Manage projectors and present remotely — easy network connectivity; software included
  • Wireless projection from an array of devices — project from iPhone®, iPad®, Android™ tablets and smartphones with the free Epson iProjection™ App7 (wireless module sold separately)
  • 2x HDMI® — supports multiple high-definition A/V devices
  • Long-lasting, low-cost lamps — up to 6000 hours in ECO Mode8
  • Epson Warranty — Two-year projector limited warranty, Epson Road Service Program, PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty.

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson PowerLite 580 projector for SMART
  • Wall mount
  • 15' Power cord
  • Projector remote control
  • Batteries
  • User manual CD
  • Projector software CDs
  • Quick Setup Sheet
  • Installation guide
  • Template sheet
  • Password protection Sticker
  • Null modem serial cable

Specifications Projector:


Projection System: 3LCD, 3-chip technologyProjection Method: Front / rear wall mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 3200 lumens1White Brightness - White Light Output: 3200 lumens1Aspect Ratio: 4:3Resolution: 1024 x 768 (XGA)Resize: 640 x 580 (VGA), 800 x 600 (SVGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA 60-1), 1360 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 900 (WXGA++)Lamp Type: E-TORL™ 245 W UHELamp Life:
  • ECO mode: Up to 6,000 hours2
  • Normal mode: Up to 4,000 hours2
Throw Ratio Range: 0.31 – 0.42Size - projected distance: 55.9" – 93.2" (0.348 – 0.597 m)Keystone Correction:
    Manual:
  • Vertical: ±3 degrees
  • Horizontal: ±3 degrees
Contrast Ratio: Up to 10,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:


Temperature: 41° to 95° F (5° C to 35° C)Weight: 11.7 lbSecurity:
  • Kensington®-style lock provision
  • Padlock and security cable hole
  • Password protect function

Power:


Power Supply Voltage: 100 – 240V ±10%, 50 / 60HzPower Consumption:
  • ECO mode: 280 W
  • Normal mode: 376 W
  • Communication on: 4.3 W standby
  • Communication off: 0.33 W standby

Projection Lens:


Type: No optical zoom / Manual focusF-number: 1.80Focal Length: 3.71 mmZoom Ratio: Digital zoom 1.0 – 1.35

Connectivity Projector:


Standard Connectivity: Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included), DP to HDMI or VGA

Remote Control:


Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, escOperating Distance: Front / Rear: 19.7' (6 m)

Projector Dimensions:


Including feet: 14.4" x 14.8" x 7.6" (W x D x H)Excluding feet: 14.4" x 14.8" x 6.1" (W x D x H)

Projector Details:


Display Performance:
  • NTSC: 480 lines
  • PAL: 576 lines
  • (Depends on observation of the multi burst pattern)

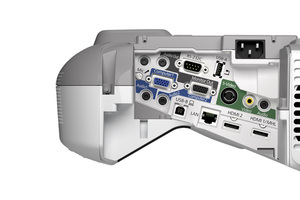

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • HDMI x 2
  • Computer / Component video: D-sub 15 pin x 2
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: Mini stereo x 3
  • USB connector: Type B x 1 (USB display, audio and mouse control)
  • USB connector: Type A x 1 (USB memory / document camera)
  • RJ-45 x 1
  • Serial: RS-232c x 1
  • Monitor Out: D-sub 15 pin x 1
  • Audio out: Mini stereo x 1
  • Microphone: Mini stereo x 1
  • Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
Speaker: 16 W monoFan Noise:
  • ECO mode: 28 dB
  • Normal mode: 35 dB

Notes:

1Existing SBM680 and SB880 boards require SMART Cable Adapter Kit.

2Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.

3 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

4 Moderator feature is part of EasyMP Multi-PC Projection software.

5Gamut volume of leading Epson business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014. Volume is measured in 3D in the CIE L*a*b* coordinate space.

6 Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.

7To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model.

8 ECO Mode is up to 10,000 hours. Normal Mode is up to 5000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.



Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
