PowerLite Pro G6070WNL WXGA 3LCD Projector without Lens

The PowerLite Pro G6070WNL large-venue projector delivers WXGA, native widescreen performance with uncompromising image quality. Offering 3x Brighter Colors^* than competitive models, Epson® 3LCD projectors ensure brilliant images. Ideal for conference rooms, auditoriums or houses of worship, the G6070WNL features 5500 lumens of color brightness and 5500 lumens of white brightness¹. The projector also offers simple integration with HDBaseT connectivity, and supports Crestron®, AMX®, Extron® XTP® and Control4® protocols. Installation is easy, with five optional lenses, built-in Edge Blending, 360-degree projection and projector setting tools. Users can simultaneously project from multiple sources, plus remotely monitor and control projectors.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 5500 lumens of color brightness¹ and 5500 lumens of white brightness¹, the PowerLite Pro G6070WNL uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H703920

Find Accessories Support

Overview

3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro G6070WNL has:
Widescreen, high-definition performance — WXGA (1280 x 800) resolution supports native
Versatile connectivity — easily integrate with any system; supports the latest connectivity options, including HDBaseT, HDMI and DisplayPort
Seamless control protocol support — compatible with Crestron, AMX, Extron XTP and Control4 Simple Device Discovery Protocol (SDDP)
Five optional lenses with lens shift — including rear-, middle- and long-throw lenses for complete flexibility and easy exchange (lenses are not included)
Easy installation features — built-in Edge Blending, 360-degree installation flexibility and simple cloning functions
Advanced collaboration features — simultaneously project from multiple devices over the network with Multi-PC projection, or side-by-side from different sources with Split Screen²
Convenient remote management — remotely monitor and control the projector; includes scheduling function
Industry-leading service and support — long-life air filter and easy maintenance tools, plus peace-of-mind ownership with next-business-day replacement³

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Epson PowerLite Pro G6070WNL WXGA Projector
Lens NOT included
Power cable
Computer cable (VGA)
Projector remote control with batteries
User manual CD
EasyMP® software CD
Quick Setup Sheet
Lens lock screw

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 5500 lumens¹White Brightness - White Light Output: 5500 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1280 x 800 (WXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:

Normal mode: Up to 3000 hours²
ECO mode: Up to 4000 hours²

Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.26 – 2.76Size - projected distance: 50" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±30 degrees

Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: 21.5 lb (with standard lens)Security:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens) Manual focus / zoomF-number: (For Standard Lens) 1.65 – 2.55Focal Length: (For Standard Lens) 21.28 mm – 37.94 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.8Lens Shift:

(For Standard Lens)

Vertical: ±67 degrees
Horizontal: ±30 degrees

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 576 line

Input Signal:

NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

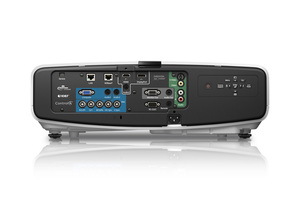

Interfaces:

HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video-1: 5-BNC x 1
Video-2: RCA x 1
Composite video: BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L & R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c
Hardwire Remote jack x 1
Monitor-Out: D-sub 15 pin x 1

Fan Noise:

Normal mode: 39 dB
ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet and lens: 19.88" x 15.04" x 5.67" (W x D x H)Excluding feet: 19.88" x 15.04" x 5.67" (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to -45 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 498 W
ECO mode: 421 W
Communication on: 2.8 W standby
Communication off: 0.31 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Consult your user manual for input combinations.

³ Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
